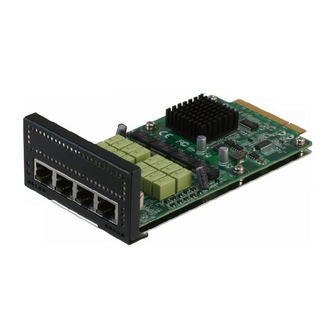

- Page 1 NIM-C13D Network Interface Module Quick Installation Guide 1 Last Updated: March 6, 2017...
- Page 2 Copyright Notice This document is copyrighted, 2017. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.
- Page 3 Acknowledgement All other products’ name or trademarks are properties of their respective owners. Microsoft Windows is a registered trademark of Microsoft Corp. Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel Corporation Core, Atom are trademarks of Intel Corporation ...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity NIM-C13D If any of these items are missing or damaged, please contact your distributor or sales representative immediately. Preface...
- Page 5 About this Document This User’s Manual contains all the essential information, such as detailed descriptions and explanations on the product’s hardware and software features (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the AAEON.com for the latest version of this document.
- Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.
- Page 7 If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii. Exposure to moisture Device is not working as expected or in a manner as described in this manual The device is dropped or damaged Any obvious signs of damage displayed on the device...
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○ 连接器及线材...
- Page 10 China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products AAEON Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Hexavalent Polybrominated Polybrominated Component Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &...
-
Page 11: Table Of Contents
Table of Contents Chapter 1 - Product Specifications......... Error! Bookmark not defined. Specifications ............Error! Bookmark not defined. Chapter 2 – Hardware Information ........Error! Bookmark not defined. Dimensions ............Error! Bookmark not defined. Jumpers and Connectors ........Error! Bookmark not defined. List of Connectors .......... -
Page 12: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 13: Specifications
Specifications Main 1G LAN module Form Factor Intel ® 82580EB ethernet controller x 1 Main Chipset PCIe [x4] Host Interface RJ45 1 GbE connector x 4 LAN Port 2 Pair Bypass Bypass LED x 4 for Active/Link Indicator ... -
Page 14: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information... -
Page 15: Dimensions
Dimensions Component Side Chapter 2 – Hardware Information... - Page 16 Solder Side Chapter 2 – Hardware Information...
-
Page 17: Jumpers And Connectors
Jumpers and Connectors Component Side Chapter 2 – Hardware Information... - Page 18 Solder Side Chapter 2 – Hardware Information...
-
Page 19: List Of Connectors
List of Connectors Please refer to the table below for all of the board’s jumpers that you can configure for your application Label Function CN27 RJ45 4 Port Connector Chapter 2 – Hardware Information... - Page 20 NIM-C13D LAN PORT ARRAY 2.3.1 Port Function RJ45 100M/1G LAN PORT RJ45 100M/1G LAN PORT RJ45 100M/1G LAN PORT RJ45 100M/1G LAN PORT Chapter 2 – Hardware Information...
-
Page 21: Chapter 3 - Drivers Installation
Chapter 3 Chapter 3 – Drivers Installation... -
Page 22: Driver Installation
Driver Installation The drivers can be found in the product page for NIM-C13D at aaeon.com. Please follow the sequence below to install the drivers. Step 1 – Install Ethernet Controller Drivers Select the folder of Win7_64 Open the PROWinx64.exe file in the folder Follow the instructions Drivers will be installed automatically Chapter 3 –...
