Fender Frontman 10G - Amplifier Manual

CONTROL PANEL

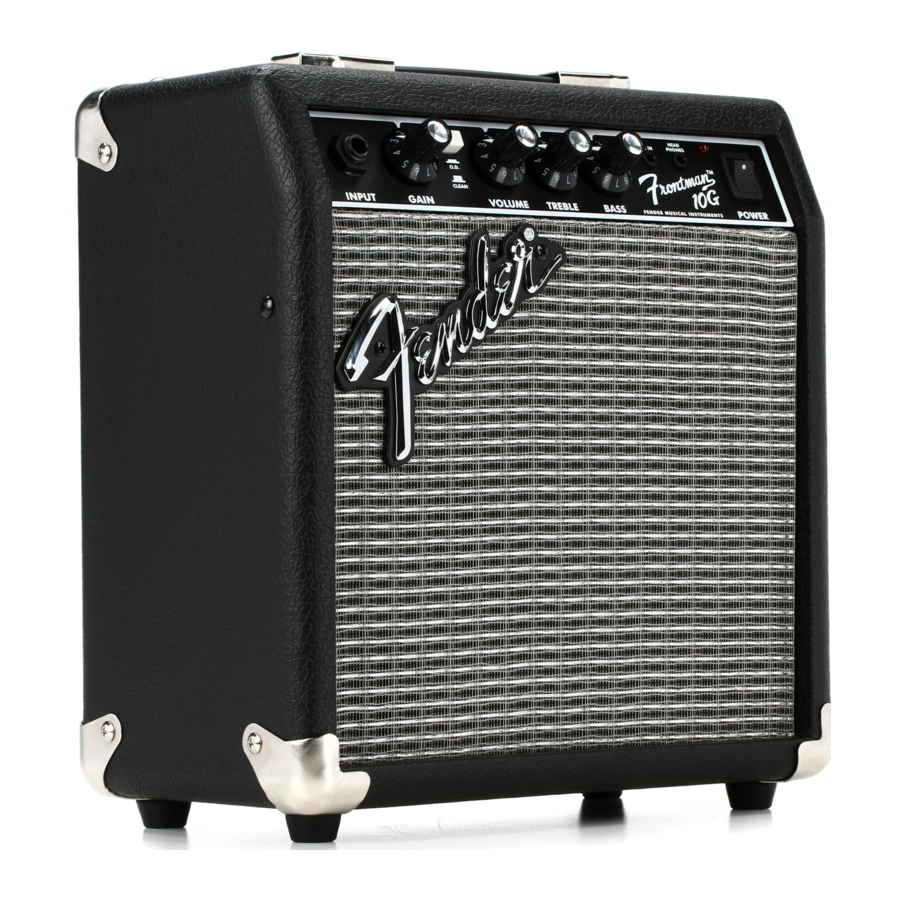

INPUT – Plug your guitar in here.
GAIN – Controls the amount of signal distortion when Overdrive {C} is selected.
O.D. – Activates the Overdrive circuit.
VOLUME – Controls the loudness of the amplifier.
TREBLE / BASS – Use to adjust high and low frequency tone.
AUX IN – 3.5mm input jack for your CD player, drum machine, etc. Adjust the loudness of this input using the volume control on the device.
HEADPHONES – Plug in here; the Frontman 10G speaker turns off automatically.
POWER – Switches the amplifier ON–OFF as indicated by the power-on light.
POWER CORD – Plug the unit in to a grounded outlet in accordance with the voltage and frequency ratings listed on the rear panel of your amplifier.

Specifications

TYPE:	PR 760
PART NUMBERS:	2311000000 (120V, 60Hz) 2311000900 (120V, 60Hz) DS 2311001900 (110V, 60Hz) TW DS 2311003900 (240V, 50Hz) AUS DS 2311004900 (230V, 50Hz) UK DS 2311005900 (220V, 50Hz) ARG DS 2311006900 (230V, 50Hz) EUR DS 2311007900 (100V, 50Hz) JPN DS 2311009900 (220V, 60Hz) ROK DS
POWER REQUIREMENT:	28W
POWER OUTPUT:	10W RMS into 4Ω
DIMENSIONS:	HEIGHT: 11.5 in (29.2 cm), WIDTH: 10.5 in (26.7 cm), DEPTH: 5.75 in (14.6 cm)
WEIGHT:	8.5 lb (3.9 kg)

Product specifications are subject to change without notice.

IMPORTANT SAFETY INSTRUCTIONS

shock hazard The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

warning The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
The mains plug of the power supply cord shall remain readily operable.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
Maintain at least 6 inches (15.25 cm) of unobstructed air space behind the unit to allow for proper ventilation and cooling of the unit.
For rack mounted power amplifiers, keep all wiring and materials away from the sides of the unit and allow the unit to cool down for 2 minutes before pulling from a rack enclosure.
Amplifiers and loudspeaker systems, and ear/headphones (if equipped) are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use.
To maintain product safety, products with internal or external (battery pack) batteries:
- Batteries and/or the product in which they are installed, shall not be exposed to excessive heat such as sunshine, fire or the like.
- There may be a danger of explosion if the battery is incorrectly connected/replaced. Replace only with the same or equivalent type battery specified in the instructions or on the product.
Unplug unit and allow it to cool before touching/ replacing vacuum tubes.
