Summary of Contents for PNI MAP130

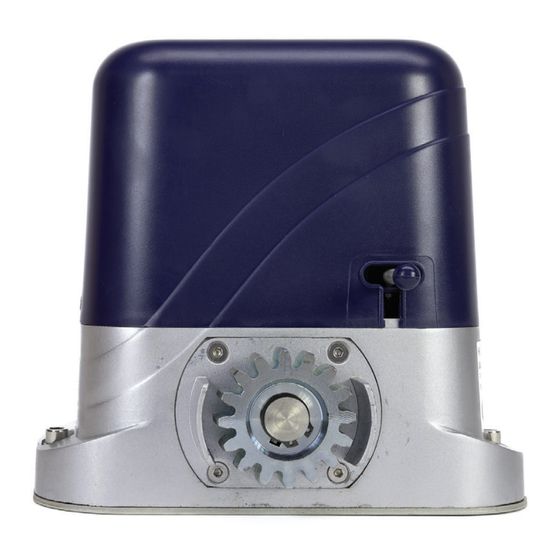

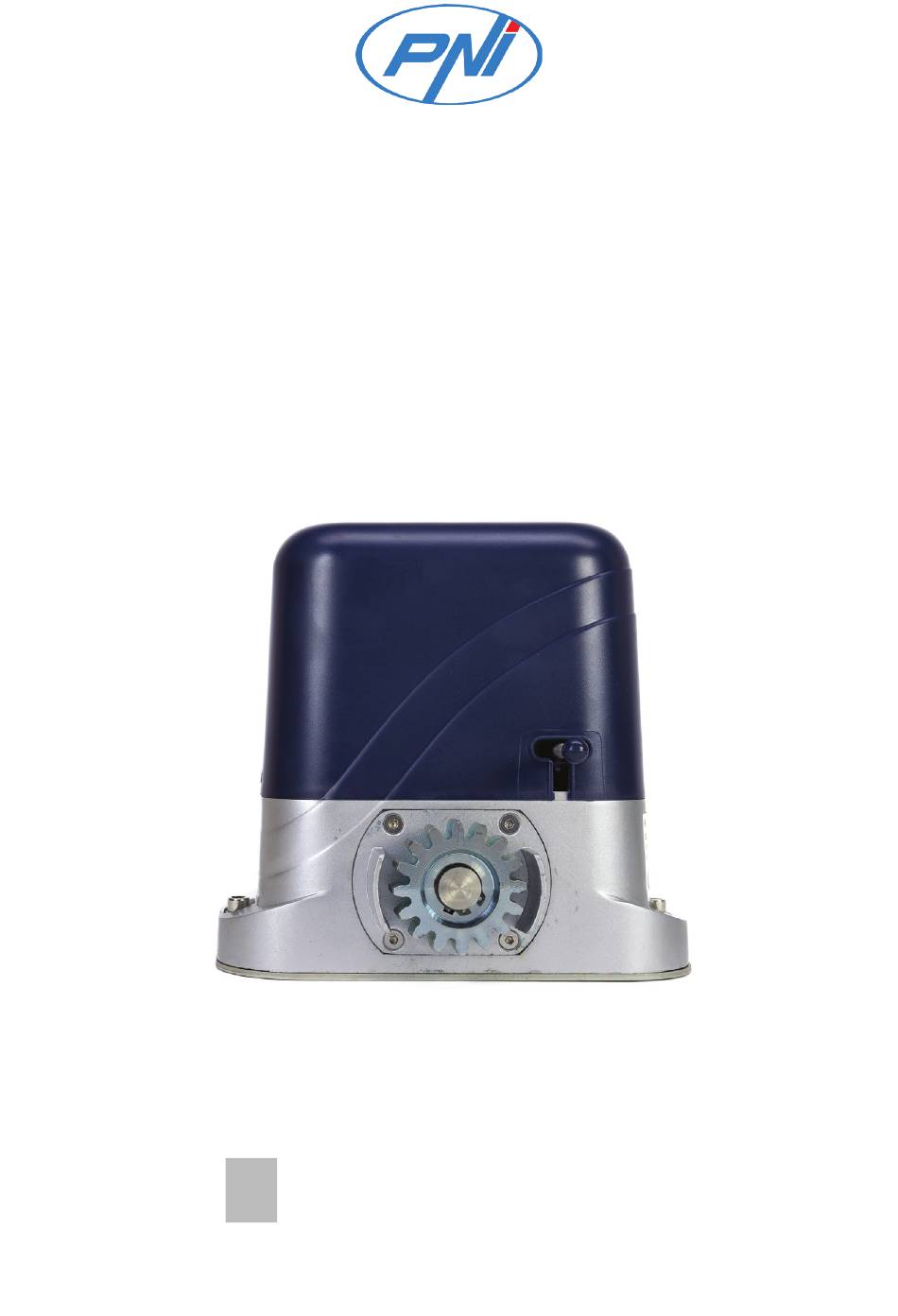

- Page 1 PNI MAP130 Sliding gate automation motor / Motor automatizare porti autoportante User manual ..........Manual de utilizare ........
-
Page 3: Safety Information
Warnings For your safety and to obtain an automation system with a correct operation, make sure that the following conditions are met: The gate structure must be adequate for the automation system » Make sure that the gates move correctly and evenly, without friction, »... -
Page 4: Package Contents
2 x limit trigger brackets Installation scheme Notes: PNI MAP130 is the engine of a gate automation system. The other components described in the image above are not included. For a complete gate automation system, we recommend purchasing the PNI AP800C self-supporting gate automation kit (product code: PNI-AP600C). -
Page 5: Technical Specifications
Technical specifications Engine working temperature: -26°C ~ + 80°C » Control unit power supply: 230V » Power: 350W » Transmission mode output: M = 4 » Torque: 30.0 N.m » Opening / closing speed: 12m / min » Rotations: 1400rpm »... -
Page 6: Engine Installation
Install the stop in the opening direction of the gate to prevent the engine » from running uncontrollably. Engine installation Choose your engine installation location carefully. » Temporarily place the engine mounting base at a distance of 35 mm from »... - Page 7 Position the first piece of rack on the gear leaving a space of 2-3 mm » between the rack and the wheel, then fix it on the gate. Manually move the gate back and forth to make sure the rack slides well »...
-
Page 8: Main Board
Power supply and installation testing Check the cables and connections again » Close the gate manually » Connect the system to a 10A power supply » Press the number 1 key on the remote control » The gate should open and stop when it reaches the end of the race »... - Page 9 the button. Now all the codes that were saved have been deleted. The system can learn a maximum of 20 remote controls. If you try to pair more than that, the D5 LED will flash 5 times to confirm that the maximum number of remote controls has been reached.
- Page 10 5. and 6 in the OFF position: disables the automatic closing function in “pedestrian” mode (default) 6. on the ON position and 6 on the OFF position: in the “pedestrian” mode, when the gate is completely open, it will close automatically after 5 seconds.
- Page 11 13.5 LED indicators D1: LED on - the gate is not completely closed Led off - the gate is completely closed D2: LED on - the gate is not fully open Led off - the gate is fully open D3: LED on - if you give, for example, the opening command from two connected access terminals, the LED will flash to warn that the same command has been given.
- Page 12 We recommend installing the engine to the right of the gate (seen from the inside): Terminal 3 - connect the red wire to the motor » Terminal 4 - connect the yellow wire to the motor » Terminal 5 - connect the blue wire to the motor »...
- Page 13 Warning lamp connection (not included) Infrared sensor connection (not included) • Remove the wire between terminal 14 and 15. • Connect terminal 15 to the COM terminal and terminal 14 to the OUT terminal of the sensor. • Terminals 12 and 13 power the sensor. Thus, connect terminal 12 to “+” (plus), and terminal 13 to “-“...
-
Page 14: Maintenance Instructions
Note: From the factory, the system board is set to connect the NO photocell. Therefore, keep the jumper in the NO position, as seen in the image above. Opening device connection (not included) If you do not want to use the remote control to control the gates, connect the external gate actuator to the terminal 11, such as the access button, the access keypad, etc. - Page 15 Atentionari Pentru siguranta dvs. si pentru obtinerea unui sistem de automatizare cu o functionare corecta, asigurati-va ca sunt indeplinite urmatoarele conditii: Structura portii trebuie sa fie adecvata sistemului de automatizare » Asigurati-va ca portile se misca corect si uniform, fara frecare, pe toata »...
-
Page 16: Continut Pachet
2 x limitatoare capete cursa Schema de instalare Note: PNI MAP130 este motorul unui sistem de automatizare porti. Celelalte componente descrise in imaginea de mai sus nu sunt incluse. Pentru un sistem complet de automatizare porti, recomandam achizitionarea kit-ului de automatizare porti autoportante PNI AP800C (cod produs: PNI- AP600C). -
Page 17: Specificatii Tehnice
Specificatii tehnice Temperatura de lucru pentru motor: -26°C ~ +80°C » Alimentare unitate de control: 230V » Putere: 350W » Iesire modul de transmisie: M=4 » Cuplu: 30.0 N.m » Viteza de deschidere/inchidere: 12m/min » Rotatii: 1400rpm » Forta de tragere: 1100N (Newton) »... - Page 18 Asigurati o distanta intre cremaliera (nu este inclusa) si roata dintata a » motorului pentru a nu incarca excesiv motorul. Instalati limitatorul de cursa in directia de deschidere a portii pentru a » evita ca motorul sa ruleze fara control. Instalare motor Alegeti cu grija locatia de instalare a motorului.
- Page 19 Pozitionati prima bucata de cremaliera pe roata dintata lasand un spatiu » de 2-3 mm intre cremaliera si roata, apoi fixati-o pe poarta. Miscati manual poarta inainte si inapoi pentru a va asigura ca cremaliera » aluneca bine pe roata dintata. Montati si urmatoarele bucati de cremaliera asigurandu-va ca sunt perfect »...
- Page 20 Alimentarea si testarea instalatiei Mai verificati inca o data cablurile si conexiunile » Inchideti poarta manual » Conectati sistemul la o sursa de alimentare de 10A » Apasati tasta numarul 1 de pe telecomanda » Poarta ar trebui sa se deschida si sa se opreasca cand ajunge la capatul »...
- Page 21 Tineti apasat butonul LEARN timp de 6 secunde, ledul D5 va clipi, eliberati butonul. Acum, toate codurile care au fost memorate au fost sterse. Sistemul poate invata maxim 20 de telecomenzi. Daca incercati sa imperecheati mai mult de atat, ledul D5 va clipi de 5 ori pentru a confirma ca numarul maxim de telecomenzi a fost atins.
- Page 22 5. si 6 pe pozitia OFF: dezactiveaza functia de inchidere automata in modul “pieton“ (implicit) 6. pe pozitia ON si 6 pe pozitia OFF: in modul “pieton“, cand poarta este complet deschisa, se va inchide automat dupa 5 secunde. 7. pe pozitia OFF si 6 pe pozitia ON: in modul “pieton“, cand poarta este complet deschisa, se va inchide automat dupa 10 secunde.
- Page 23 Led stins - poarta este complet inchisa D2: Led aprins - poarta nu este complet deschisa Led stins - poarta este complet deschisa D3: Led aprins - daca dati, de exemplu, comanda de deschidere din doua terminale de acces conectate, ledul va clipi pentru a avertiza ca s-a dat aceeasi comanda.
- Page 24 Recomandam instalarea motorului in dreapta portii (privita din interior): Terminalul 3 - conectati firul rosu de la motor » Terminalul 4 - conectati firul galben de la motor » Terminalul 5 - conectati firul albastru de la motor » Instalarea motorului in stanga portii (privita din interior): Terminalul 4 - conectati firul rosu de la motor »...
- Page 25 Conectare lampa de avertizare (nu este inclusa) Conectare senzor infrarosu (nu este inclus) • Indepartati firul dintre terminalul 14 si 15. • Conectati terminalul 15 la terminalul COM si terminalul 14 la terminalul OUT al senzorului. • Terminalul 12 si 13 alimenteaza senzorul. Astfel, conectati terminalul 12 la “+”...
- Page 26 Nota: din fabrica, placa de baza este setata sa conecteze fotocelula NO. De aceea, pastrati jumperul pe pozitia NO, dupa cum se vede in imaginea de mai sus. Conectare dispozitiv de deschidere (nu este inclus) Daca nu doriti sa folositi telecomanda pentru a controla portile, conectati la terminalul 11 dispozitivul extern de actionare a portilor, cum ar fi buton de acces, tastatura de acces etc.
- Page 27 Declaratie UE de conformitate simplificata ONLINESHOP SRL declara ca Motor automatizare porti autoportante PNI MAP130 este in conformitate cu Directiva EMC 2014/30/EU si Directiva LVD 2014/35/EU. Textul integral al declaratiei UE de conformitate este disponibil la urmatoarea adresa de internet:...
- Page 28 EN - Please download the full version of the user manual BG - Моля, изтеглете пълната версия на ръководството за потребителя DE - Bitte laden Sie die Vollversion des Benutzerhandbuchs herunter ES - Descargue la versión completa del manual de usuario FR - Veuillez télécharger la version complète du manuel d’utilisation HU - Kérjük, töltse le a felhasználói kézikönyv teljes verzióját IT - Si prega di scaricare la versione completa del manuale utente...
