Summary of Contents for Bosch WNA14411GR

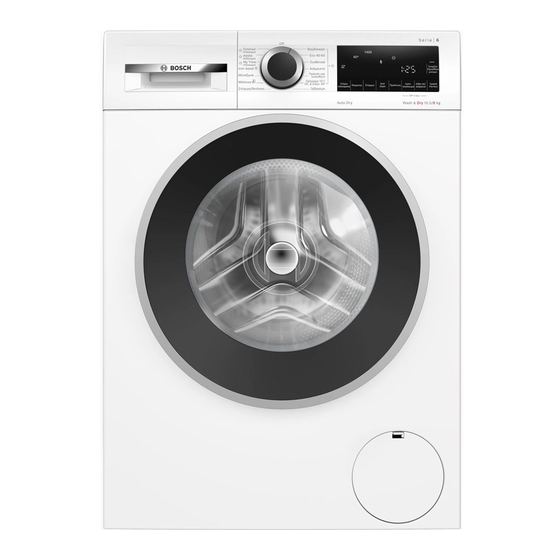

- Page 1 Washer dryer WNA14411GR [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 23 1.1 General information.... 4 9 Dryness level...... 25 1.2 Intended use...... 4 9.1 Changing the dryness level.. 25 1.3 Restriction on user group.. 4 1.4 Safe installation ...... 5 10 Programmes ...... 26 1.5 Safe use ........ - Page 3 15 Childproof lock...... 32 15.1 Activating the childproof lock ........ 32 15.2 Deactivating the childproof lock ........ 32 16 Basic settings...... 34 16.1 Overview of the basic set- tings........ 34 16.2 Changing the basic set- tings........ 35 17 Cleaning and servicing ... 35 17.1 Cleaning the drum....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... -
Page 6: Safe Use
en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶... - Page 7 Safety en ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ Call customer services. → Page 51 An ingress of moisture can cause an electric shock. ▶...
- Page 8 en Safety WARNING ‒ Risk of explosion! Highly flammable objects such as lighters or matches may ignite during the drying process. ▶ Remove all highly flammable objects from any pockets in your laundry before the drying process. Unwashed laundry that has come into contact with solvents, oil, wax, wax remover, paint, grease or stain remover may ignite when drying is in progress.
-
Page 9: Safe Cleaning And Maintenance
Safety en CAUTION ‒ Risk of scalding! When you wash at high temperatures, the detergent solution gets hot. ▶ Do not touch the hot detergent solution. CAUTION ‒ Risk of chemical burns! If the detergent drawer is opened, detergent and care products may spray out from the appliance. Contact with eyes or skin may cause irritation. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ Preventing material damage 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be Preventing material damage ATTENTION! able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Set the maximum spin speed if you ▶ spray residue or other residues im- want to dry the laundry in the appli- mediately if they come into contact ance afterwards. with the appliance. a The drier the laundry, the shorter the programme duration when dry- ing which, in turn, reduces energy... -
Page 12: Installation And Connection
en Installation and connection Replace the accessories in ques- ▶ Installation and connection 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 29 Installation and connection Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order. - Page 13 Installation and connection en ATTENTION! Installation loca- Requirements If residual water in the appliance tion freezes, this may cause damage to Against a wall Do not trap the the appliance. power cord or Do not install or operate this appli- ▶ the hoses ance anywhere that is liable to ex- between the wall...
-
Page 14: Connecting The Appliance
en Installation and connection Unscrew and remove all of Put on the 4 cover caps. the screws for the 4 transit bolts using a WAF 13 wrench. Push the 4 cover caps downwards. Remove the power cable from the holder. Note: To install the transit bolts to transport the appliance, perform these steps again in the reverse or- Remove the 4 sleeves. -
Page 15: Aligning The Appliance
Installation and connection en Connect the water inlet hose to a Plastic pipe with Fix and secure tap (26.4 mm = 3/4"). rubber sleeve the water outlet hose with an el- bow. → "Accessories", Page 29 Connecting the appliance to the electricity supply Note: Your electrical domestic install- ation for this appliance must comply with the local legal provisions and Open the water tap carefully and... - Page 16 en Installation and connection To align the appliance, turn the ap- pliance feet. Check that the appli- ance is level using a spirit level. All appliance feet must stand firmly on the ground. Use a WAF 17 wrench to tighten the lock nuts against the housing until they are hand-tight.
-
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 18: Control Panel
en Familiarising yourself with your appliance Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 26 Programme selector → Page 30... -
Page 19: Before Using For The First Time
Before using for the first time en Start the first wash cycle or set the Before using for the first time 6 Before using for the programme selector to Off to switch off the appliance. first time → "Basic operation", Page 30 Prepare the appliance for use. Before using for the first time 6.1 Starting an empty wash- ing cycle... -
Page 20: Display
en Display Display 7 Display The display shows the current settings, options or relevant information. Display Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 23 Recommendation for the maximum load capacity for the selected program in kg. - Page 21 Display en Display Description Spin Programme status Program end Programme status Drying Programme status Crease-reduction function Programme status ¡ Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is activated and the appli- ance has been operated. → "Deactivating the childproof lock", Page 32 The crease-reduction function is activated.
- Page 22 en Display Display Description ¡ Lights up: The door is locked and cannot be opened. ¡ Flashes: The door is not closed properly. ¡ Off: The door is unlocked and can be opened. ¡ No water pressure. ¡ The water pressure from the tap is too low. E:35 / -10 Error code, error display, signal.
-
Page 23: Buttons
Buttons en Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Buttons Button Selection Description Θερμοκρ. - 90 Adjust the temperature. Set temperature in °C. Στύψιμο - 1400 Adjust the spin speed or deactivate the spin cycle. Set spin speed in rpm. - Page 24 en Buttons Button Selection Description Anti Stain Multiple selection Select the type of stain. The temperature, drum movement and soaking time are all adjusted to suit the type of stain. Στόχος The dryness level defines how damp ¡ στεγνώματος or dry the laundry is after the pro- ¡...
-
Page 25: Dryness Level
Dryness level en Dryness level 9 Dryness level In some programmes, a dryness level is predefined. The dryness level defines Dryness level how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Multi-layered, thick laundry The laundry is dry. that does not dry readily. - Page 26 en Programmes Programmes 10 Programmes Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. Max. load load (kg) (kg) Wash Dry- Βαμβακερά Wash hard-wearing items made of cotton, 10.0 linen or blended fabrics. Also suitable as a short programme for nor- mally soiled laundry when you activate Speed Perfect .
- Page 27 Programmes en Programme Description Max. Max. load load (kg) (kg) Wash Dry- ¡ Max. 1400 rpm Ανάμεικτα Wash items made from cotton, linen, or syn- thetic or blended fabrics. Suitable for lightly soiled laundry. Programme setting: ¡ Max. 60 °C ¡ Max. 1400 rpm Μεταξωτά...
- Page 28 en Programmes Programme Description Max. Max. load load (kg) (kg) Wash Dry- Απαλό Dry items made from synthetic or blended fab- – στέγνωμα rics. Gentle programme with low temperatures for delicate fabrics. Εντατικό Dry items made from cotton or linen. –...
-
Page 29: Preparing The Laundry
Accessories en Accessories 11 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 51. Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx. -
Page 30: Detergents And Care Products
en Detergents and care products If required, adjust the programme Detergents and care products 13 Detergents and care settings. → "Adjusting the programme set- products tings", Page 30 The manufacturer's instructions for Detergents and care products use and dosage can be found on the 14.3 Adjusting the pro- packaging. -
Page 31: Starting The Programme
Basic operation en 14.6 Starting the programme 14.8 Adding laundry Requirement: A programme is set. After the programme starts, you can → "Setting a programme", Page 30 remove or add laundry depending on the programme status. Press Έναρξη/Προσθήκη Press Έναρξη/Προσθήκη ρούχων . ρούχων . a The drum rotates and load detec- During the washing cycle, the ap- tion takes place. -
Page 32: Cancelling The Drying Programme
en Childproof lock Wipe the rubber gasket dry and re- 14.10 Cancelling the drying move any foreign objects. programme Turn the programme selector to ▶ set any other programme. a The door lock opens automatically after a cooling period of a few minutes. - Page 33 Childproof lock en Press and hold the two Λιγοτ. ▶ τσαλάκωμα and Λήξη σε/ Διάρκεια buttons for approx. 3 seconds. goes out in the display.
-
Page 34: Overview Of The Basic Settings
en Basic settings Basic settings 16 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 16.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 35: Changing The Basic Set- Tings
Cleaning and servicing en 16.2 Changing the basic set- Cleaning and servicing 17 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. Cleaning and servicing ciently for a long time, it is important to clean and maintain it carefully. -
Page 36: Cleaning The Drain Pump
en Cleaning and servicing Press down on the insert and re- Fit the insert and click it into place. move the detergent drawer. Clean the opening for the deter- Pull out the insert upwards. gent drawer. Clean the detergent drawer and in- Push in the detergent drawer. - Page 37 Cleaning and servicing en Open and remove the mainten- CAUTION - Risk of scalding! ance flap. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 38 en Cleaning and servicing Insert the pump cap. Cleaning the drain pump Requirement: The drain pump is empty. → Page 36 Since water may remain in the drain pump, unscrew the pump cap carefully. Screw the pump cap as far as it will go. Clean the interior, the thread on the pump cap and the pump hous- ing.
-
Page 39: Cleaning The Intake Opening In The Rubber Gasket
Cleaning and servicing en 17.4 Cleaning the intake opening in the rubber gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening. Open the appliance door. Remove any blockages from the intake opening. Note: Do not use any sharp or poin- ted objects. -
Page 40: Troubleshooting
en Troubleshooting Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 41 Troubleshooting en Fault Cause and troubleshooting "E:30 / -80" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into compartment II (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 42 en Troubleshooting Fault Cause and troubleshooting flashes. Door is not closed. Close the door. ▶ Laundry is caught in the door. Remove any trapped laundry. ▶ "Hot" and the drum Cooling process active. rotates. Not a fault. Do not change the programme during the cooling process.
- Page 43 Troubleshooting en Fault Cause and troubleshooting Creasing. Unsuitable programme for the type of fabric. Set the suitable programme for the type of fabric. ▶ Easy-Care fabrics are dried for too long. The appliance is not The mains plug of the power cord is not plugged in. working.
- Page 44 en Troubleshooting Fault Cause and troubleshooting The water is not drain- → "Cleaning the drain pump", Page 36 ▶ ing. The water outlet hose is connected too high. Install the water outlet hose at a maximum height of ▶ 1 metre. Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶...
- Page 45 Troubleshooting en Fault Cause and troubleshooting No water is visible in Water is below the visible area. the drum. Not a fault – no action required. ▶ Do not add any extra water to the appliance while it ▶ is operating. Residual water is Insert in compartment is blocked.
- Page 46 en Troubleshooting Fault Cause and troubleshooting The spin programme Drain pipe or water drain hose is caught or jammed. does not start. Ensure that the drain pipe and water drain hose are ▶ not kinked or trapped. The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distrib- uted.
- Page 47 Troubleshooting en Fault Cause and troubleshooting The spin result is not Start the Στύψιμο programme. ▶ satisfactory. The laun- Unbalance load detection system is using a reduced dry is too wet/too spin speed to eliminate an unbalance. damp. Redistribute the laundry in the drum. ▶...
- Page 48 en Troubleshooting Fault Cause and troubleshooting Fluff on the laundry. Fluff has accumulated in the drum. Run the Βαμβακερά 90° programme without any ▶ laundry or detergent. Fabric softener re- The use of fabric softener is not supported for the se- mains in the detergent lected programme.
- Page 49 Troubleshooting en Fault Cause and troubleshooting Loud noises during The appliance feet are not fixed. the spin cycle. Secure the appliance feet. ▶ → "Aligning the appliance", Page 15 Transit bolts have not been removed. → "Removing the transit bolts", Page 13. ▶ Banging noises, rat- Foreign bodies have got into the drain pump.
-
Page 50: Emergency Release
en Transportation, storage and disposal 18.1 Emergency release 19.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 36 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 51: Disposing Of Old Appliance
Customer Service en 19.4 Disposing of old appli- Customer Service 20 Customer Service ance Function-relevant genuine spare parts Customer Service Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health! - Page 52 en Consumption values Consumption values 21 Consumption values The following information is provided in accordance with the EU Ecodesign Consumption values Regulation. The values specified for programmes other than Eco 40-60 are only given as a guide and were determined in accordance with the applicable standards EN60456 and EN62512.
-
Page 53: Technical Data
Technical data en Programme Load Pro- Energy Water Max- Spin Resid- (kg) gramm con- con- imum speed e dura- sump- sump- temper- (rpm) mois- tion tion tion (l/ ature ture (hr:min (kWh/ cycle) (°C) 5 cycle) mins Μάλλινα 0:41 0.180 45.0 30.00 30 °C Due to the influence of water pressure, hardness and inlet temperature, am-... - Page 54 en Technical data ternatively, you can also find the model identifier in the first line of the EU energy label.
- Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
