Roland DJ-99 - DJ Mixer Manual

Before using this unit, carefully read "IMPORTANT SAFETY INSTRUCTIONS" (Inside front cover), "USING THE UNIT SAFELY", and "IMPORTANT NOTES". After reading, keep the document(s) where it will be available for immediate reference.

MAIN SPECIFICATIONS

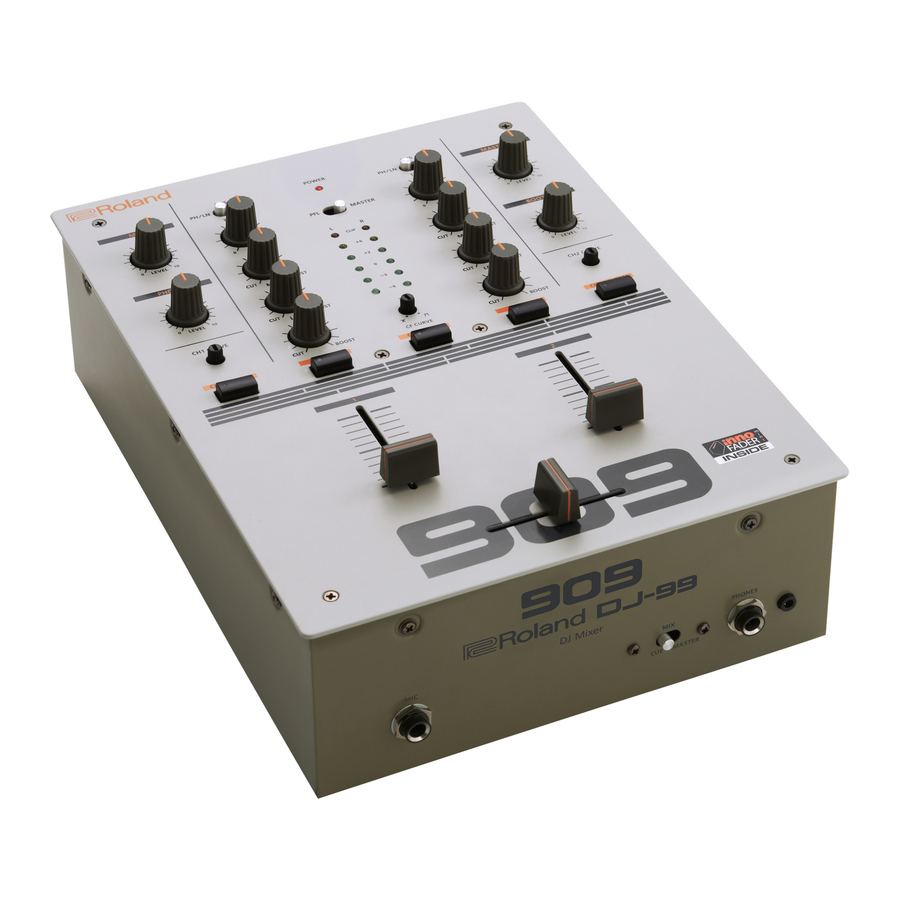

Roland DJ-99: DJ Mixer

* 0 dBu=0.775 Vrms

* This document explains the specifications of the product at the time that the document was issued. For the latest information, refer to the Roland website.

INTRODUCTION

The DJ-99 is a brand new 2-channel DJ Scratch Mixer with integrated mini innoFADER.

Premium quality contactless mini innoFADER integrated

The DJ-99 features the mini innoFADER from Audio Innovate as the crossfader. Inherited from the original innoFADER, it provides smooth and robust feeling to the Scratch DJs. The contactless design gives a long life of over 4,000,000 cycles. The cut-in position can be adjusted by users with simple calibration steps to fit your taste. The Reverse switch and Curve Adjust knobs for both channel faders and crossfader allows you to do different style of scratch skill. The mixer is also compatible with the original innoFADER for future upgrade.

Innovative DVS Mode for DVS users

The DJ-99's DVS Mode makes DJ's life easier switching between traditional turntable setup and DVS setup. At the rear of the DJ-99, the extra pairs of DVS SEND/RETURN RCA connectors allow you to connect to your DVS audio interface. Just switch to the DVS channel on the top panel, no need to reconnect any cables and you are ready to use as a DVS setup.

High-Quality and complete mixer

The DJ-99 serves as a full-feature 2-channel mixer: 3-band EQ, 1/4" microphone input, 1/4" & 3.5 mm headphones outputs with monitoring mode selector CUE/MIX/MASTER, 1/4" stereo Master output, and even an RCA Booth output with a dedicated volume control.

SCRATCH SERIOUSLY NOW!

Features

• High performance 2-channel scratch DJ mixer
• Integrated premium quality contactless mini innoFADER as the crossfader
• Crossfader compatible with the original full-size innoFADER
• Superb scratch performance with adjustable curve and reverse control for both channel faders and crossfader
• DVS mode: Switch between the traditional vinyl/CD setup and DVS software setup without reconnecting the cables
• 1/4" stereo master output and RCA booth output with dedicated volume control
• 1/4" and 3.5 mm headphones outputs with monitoring mode selector CUE/MIX/MASTER

Package Includes

• DJ-99 x 1pc
• Power cord x 1pc
• Owner's manual x 1pc
• Extra fader knob x 3pcs

FRONT, REAR AND TOP PANELS

1. POWER indicator
   LED will be lit when the unit is POWER ON
2. Input selector
   Assign the input source of CH1 & CH2.
3. MIC level knob
   Adjust the microphone input level.
4. TRIM level knob
   Adjust the input level for CH1 & CH2.
5. Channel EQ knob
   Adjust the EQ (HI/MID/LOW) for CH1 & CH2.
6. PHONES level knob
   Adjust the headphones output level.
7. Channel Fader curve adjustment knob
   Adjust the shape of the channel fader curve from a fast cut or to a slow fade.
8. Channel Fader reverse switch
   Press to reverse the direction of the channel fader.
9. CUE button
   Select the channel(s) to be monitored.
10. Channel Fader
    Adjust the volume for CH1 & CH2.
11. Crossfader
    Mix the sound from CH1 & CH2.
12. PFL/MASTER selector
    Determine the level meter mode.

    PFL	left side of the meter will indicate monaural level of CH1, and right side of the meter will indicate monaural level of CH2.
    MASTER	show the master output level

13. PFL/MASTER level meter
    Show the level depending on the position of PFL/MASTER selector
14. MASTER level knob
    Adjust the master output level.
15. BOOTH level knob
    Adjust the booth output level.
16. Crossfader curve adjustment knob
    Adjust the shape of the crossfader curve from a fast cut for scratching or to a slow fade for mixing.
17. Crossfader reverse switch
    Press to reverse the direction of the crossfader.
18. MIC input jack (1/4")
    Connect to your microphone.
19. Headphones Monitoring selector
    Select the source to be monitored with headphones.

    CUE	CH1 & CH2
    MIX	CH1 & CH2 at left side, and Master output at right side
    MASTER	Master output

20. PHONES output jack (1/4" + 3.5 mm)
    Connect to your headphones.
21. BOOTH output jack (RCA)
    Connect to your active monitors.
22. MASTER output jack (1/4" stereo)
    Connect to your active speakers.
23. POWER switch
    Turn this unit power ON/OFF.
    * Once everything is properly connected, be sure to follow the procedure below to turn on their power. If you turn on equipment in the wrong order, you risk causing malfunction or equipment failure.
    When powering up: this unit → connected devices
    When powering down: connected devices → this unit
    * Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/ off. However, this is normal and does not indicate a malfunction.
    * If you need to turn off the power completely, first turn off the unit, then unplug the power cord from the power outlet. Refer to "To completely turn off power to the unit, pull out the plug from the outlet".
24. AC IN Connector
    Connect to the main AC power with the power cord. (package included)
25. Fuse holder
    If the power does not turn on even though the unit is correctly connected, it could be that the fuse has blown. Check the fuse and replace it.
    Caution when replacing the fuse
    * Failure to observe the following cautions may result in electric shock.
    • Never connect the unit to an electrical power source while replacing the fuse.
    • When replacing the fuse, use only the specified type (T315mAL250V) and size (5 ф x 20 mm).
    • If you cannot obtain a replacement fuse or if the unit still does not work even after you replace the fuse, contact the Roland Service center.
26. DVS SEND jack (RCA)
    Connect to the inputs of your DVS audio interface.
27. DVS RETURN jack (RCA)
    Connect to the outputs of your DVS audio interface.
28. GND terminal
    Connect to the ground leads of your turntable.
29. LN/PH selector
    When connecting the turntable with moving magnet cartridge, be sure the switch is in "PH" position. When using the line level device, select "LN." Always be sure the main power is OFF before switching.
30. LN/PH input jack (RCA)
    Connect to your turntable or line level device.
31. CD input jack (RCA)
    Connect to your CD player.

HOW TO CONNECT

Typical connection example is shown in the above diagram.

To use the DJ-99 DVS connection for DVS system, please refer to the below steps:
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.

1. Connect your turntable to the LN/PH input jack of DJ-99, and select the LN/PH selector to "PH" position.
2. Connect the DVS SEND output jack of DJ-99 to the input jack of your DVS audio interface.
3. Connect the output jack of your DVS audio interface to the DVS RETURN input jack of DJ-99.
4. Select the input selector on DJ-99's top panel to "DVS" position.
5. Time code audio signal from the turntable will be by-passed to your audio interface through the DVS SEND output jack, and audio signal from your audio interface will be returned to the DJ-99 through the DVS RETURN input jack.

USING WITH THE ORIGINAL INNOFADER

The DJ-99 is also compatible with the original innoFADER as below table. For more information on innoFADER, please visit Audio Innovate website.
http://www.innofader.com/

• Users will take their own risk for the customization. Faulty operations may cause damages to the mixer.
• Opening the cabinet voids the warranty even if the warranty period has not expired.

USING THE UNIT SAFELY

About and Notices

	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly. * Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

Make sure that the power cord is grounded
Connect mains plug of this model to a mains socket outlet with a protective earthing connection.

To completely turn off power to the unit, pull out the plug from the outlet
Even with the power switch turned off, this unit is not completely separated from its main source of power. When the power needs to be completely turned off, turn off the power switch on the unit, then pull out the plug from the outlet. For this reason, the outlet into which you choose to connect the power cord's plug should be one that is within easy reach and readily accessible.

Do not disassemble or modify by yourself
Do not carry out anything unless you are instructed to do so in the owner's manual. Otherwise, you risk causing malfunction.

Do not repair or replace parts by yourself
Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information."

Do not use or store in the following types of locations

• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of vibration and shakiness; or are
• Placed in a poorly ventilated location.

Do not place in an unstable location
Otherwise, you risk injury as the result of the unit toppling over or dropping down.

Connect the power cord to an outlet of the correct voltage
The unit should be connected to a power supply only of the type described as marked on the rear side of unit.

Use only the supplied power cord
Use only the attached power cord. Also, the supplied power cord must not be used with any other device.

Do not bend the power cord or place heavy objects on it
Otherwise, fire or electric shock may result.

Avoid extended use at high volume
Use of the unit at high volume for extended periods of time may cause hearing loss. If you ever experience any hearing loss or ringing in the ears, you should immediately stop using the unit and consult a specialized physician.

Do not allow foreign objects or liquids to enter unit; never place containers with liquid on unit
Do not place containers containing liquid (e.g., flower vases) on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

Turn off the unit if an abnormality or malfunction occurs
Immediately turn the unit off, remove the power cord from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" when:

• The power cord has been damaged; or
• If smoke or unusual odor occurs; or
• Objects have fallen into, or liquid has been spilled onto the unit; or
• The unit has been exposed to rain (or otherwise has become wet); or
• The unit does not appear to operate normally or exhibits a marked change in performance.

Be cautious to protect children from injury
Always make sure that an adult is on hand to provide supervision and guidance when using the unit in places where children are present, or when a child will be using the unit.

Do not drop or subject to strong impact
Otherwise, you risk causing damage or malfunction.

Do not share an outlet with an unreasonable number of other devices
Otherwise, you risk overheating or fire.

Do not use overseas

Before using the unit in overseas, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information."

Use only the specified fuse
When replacing the fuse, use only the specified type (T315mAL250V) and size (5 ф x 20 mm).

When disconnecting the power cord, grasp it by the plug
To prevent conductor damage, always grasp the power cord by its plug when disconnecting it.

Periodically clean the power plug
An accumulation of dust or foreign objects between the power plug and the power outlet can lead to fire or electric shock.
At regular intervals, be sure to pull out the power plug, and using a dry cloth, wipe away any dust or foreign objects that may have accumulated.

Disconnect the power plug whenever the unit will not be used for an extended period of time
Fire may result in the unlikely event that a breakdown occurs.

Route all power cords and cables in such a way as to prevent them from getting entangled
Injury could result if someone were to trip on a cable and cause the unit to fall or topple.

Avoid climbing on top of the unit, or placing heavy objects on it
Otherwise, you risk injury as the result of the unit toppling over or dropping down.

Never connect/disconnect a power plug if your hands are wet
Otherwise, you could receive an electric shock.

Disconnect all cords/cables before moving the unit
Before moving the unit, disconnect the power plug from the outlet, and pull out all cords from external devices.

Before cleaning the unit, disconnect the power plug from the outlet
If the power plug is not removed from the outlet, you risk receiving an electric shock.

Whenever there is a threat of lightning, disconnect the power plug from the outlet
If the power plug is not removed from the outlet, you risk causing malfunction or receiving an electric shock.

Keep small items out of the reach of children

To prevent accidental ingestion of the parts listed below, always keep them out of the reach of small children.

• Included Parts
  Fader knob
• Removable Parts
  Fuse
  Fuse holder

Handle the ground terminal carefully
If you remove the screw from the ground terminal, be sure to replace it; don't leave it lying around where it could accidentally be swallowed by small children. When refastening the screw, make that it is firmly fastened, so it won't come loose.

IMPORTANT NOTES

Power Supply

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter or a motor (such as a refrigerator, washing machine, microwave oven, or air conditioner). Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This unit may interfere with radio and television reception. Do not use this unit in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface.
• Do not place containers or anything else containing liquid on top of this unit. Also, whenever any liquid has been spilled on the surface of this unit, be sure to promptly wipe it away using a soft, dry cloth.

Maintenance

• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• When disconnecting all cables, grasp the connector itself — never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• A small amount of heat will radiate from the unit during normal operation.
• To avoid disturbing others nearby, try to keep the unit's volume at reasonable levels.
• Do not use connection cables that contain a built-in resistor.
