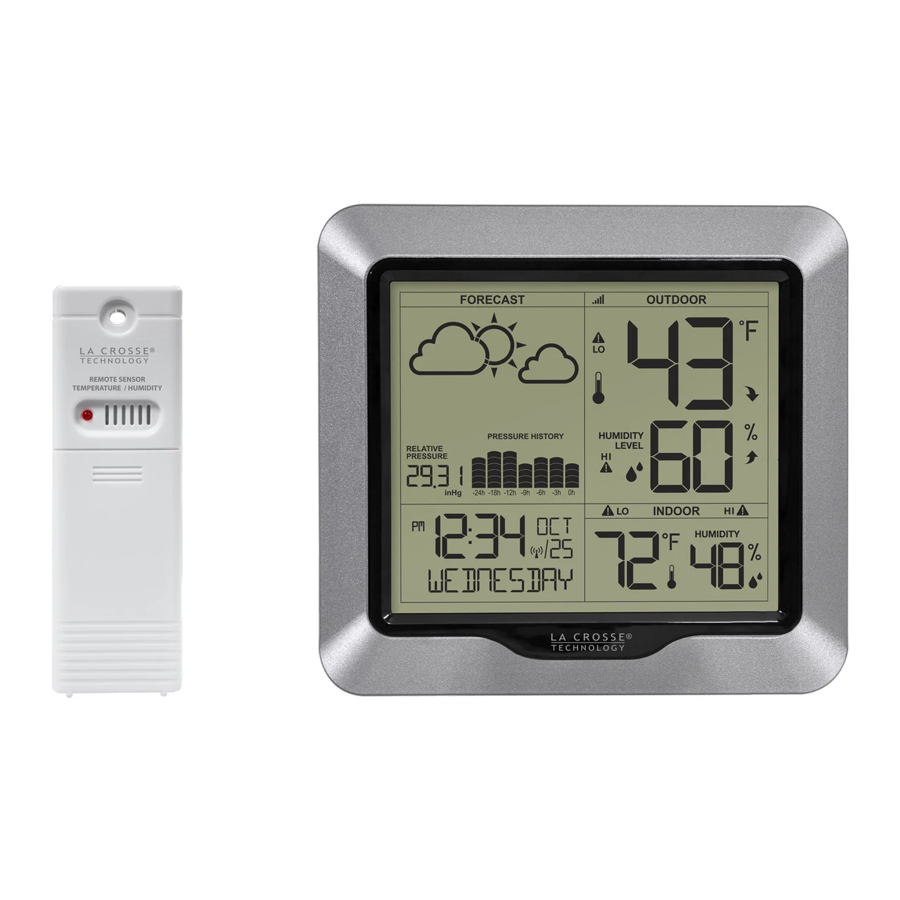

La Crosse Technology 308-1417 - Wireless Weather and Pressure Station Manual

La Crosse Technology 308-1417 - Wireless Weather and Pressure Station Manual

Also See for 308-1417:

Advertisement

La Crosse Technology 308-1417 - Wireless Weather and Pressure Station Manual

Button Function Explanation

For better programming instructions, please note these terms for button use:

  • Press: Press and release the designated button.
  • Hold: Hold the button for 3 seconds then release the button.

Setup

Setup

  1. Install 2-AA batteries into the TX141TH-Bv2 sensor. The red LED light will blink when transmitting.
  2. Insert 3-AA batteries into the back of the station.
  3. Keep sensor and weather station within 5 feet for at least 15 minutes after installing batteries. This allows the sensor and station to sync properly and ensures a strong connection.
  4. After 15 minutes, place sensor in desired location.
  5. Program the station in the settings menu.

Note: Press the TX button inside the battery cover of the sensor to force a signal transmission.

Atomic Time

  • The station will automatically search for the atomic time signal at UTC 7:00, 8:00, 9:00, 10:00, and 11:00.
  • Press the SEARCH button to search manually, for the atomic time signal.
  • Please be sure you have selected your time zone from the list in the Settings menu. When the Atomic time signal is received, the station will set to the time zone selected. Default is Eastern Time.
  • For information about WWVB visit: http://bit.ly/AtomicTime

Settings Menu

  1. Hold the SET button to enter settings menu.
  2. Press the + or - button to adjust the flashing values.
  3. Hold the + or - buttons to adjust quickly.
  4. Press the SET button to confirm adjustments and move to the next item.
  5. Press the SEARCH button at any time to exit.

Settings menu order:

  • Language: (English, Español, Français)

    Note: When Español is selected, the instructions on screen will be in Spanish. When Français is selected, the instructions on the screen will be in French.
  • Beep ON | OFF
  • Atomic ON | OFF
  • DST ON | OFF (Daylight Saving Time)
  • Time Zone

    Note: Setting the time zone ensures the time will be correct when the atomic time signal is received.
  • Format: 12Hr | 24Hr
  • Set Hour
  • Minutes
  • Set Year
  • Set Month
  • Set Date
  • Temperature Fahrenheit | Celsius

Note: The day of the week sets automatically when year, month and date are set.

LCD Features

LCD Features Overview

Forecast Icons
Pressure History Graph
AM | PM
Atomic Time
Low Battery Icon
Sensor Reception
warning HI | LO Alert Icons
Fahrenheit | Celsius
Temperature Section Icon
Trend Arrows
Percent Humidity
Humidity Section Icon

Weather Forecast Icons

Weather Forecast Icons

  • The forecast icons are determined by the station's barometric pressure reading. Please allow 7-10 days for barometric calibration.
  • Six forecast icons use changing atmospheric pressure to predict weather conditions for the next 12-hours with 70-75% accuracy.
  • When Outdoor temperature is below 32˚F and the forecast is RAIN or T-STORM, the station will display SNOW.

Pressure History Graph

  • Read from left to right, the Pressure History Graph indicates the rise and fall in air pressure over the past 24 hours.
  • The numbers below represent the hour in which the reading was taken. Where "0h" is the current pressure level. "-3h" was the reading taken three hours ago, compared to current pressure.
  • The bar chart will constantly scroll to avoid burnout of the LCD. This feature cannot be turned off.

Programmable Pressure Number

  • The relative air pressure number is programmable: 23.62 to 32.48 InHg (800 to 1100 hPa).
  • If not manually programed, please allow 7-10 days for the station to acclimate to your location. After this time, you should begin to see accurate pressure graph readings automatically displayed on your station's screen.

Program Pressure Number:

  1. Hold the PRESSURE button to set pressure number.
  2. PRESSURE will show and Pressure Value will flash.
  3. Press the + or - button to adjust the flashing pressure value.
  4. Hold the + or - buttons to adjust quickly.
  5. Press the PRESSURE button to confirm adjustments and exit.
  6. Press the SEARCH button at any time to exit.

Select Pressure Units (inHg or hPa)

Inches of Mercury (inHg) is common in the USA.
Select Pressure Units (inHg or hPa)

  • Press the PRESSURE button to toggle the pressure reading between Inches of Mercury and Hectopascals
  • The letters, INHG or HPA will show for 3 seconds. Other readings will remain.
  • Station will stay on measurement selected.

HI | LO Temperature | Humidity Records

All HI/LO temperature/humidity records reset automatically at 12:00 (midnight).

  • Press the TEMP button once to view HI indoor and outdoor temperature/humidity records.
  • Press the TEMP button a second time to view LO indoor and outdoor temperature/humidity records.
  • Press the TEMP button a third time to view outdoor Heat Index.
  • Press the TEMP button a fourth time to view outdoor Dew Point.
  • Press the TEMP button again to return to normal display.

Trend Arrows

  • The UP and DOWN arrows indicate changes in temperature and humidity over the past hour.
  • They update every 15 minutes and compare data from exactly one hour prior.

Temperature: arrow changes every 2 degrees Fahrenheit.
Humidity: arrow changes every 3% RH

Set Weather Alerts

Set Weather Alerts

  • Hold the ALERTS button to enter alert setting menu.
  • Outdoor LO ALERT ON | OFF will flash.

Alert ON:

  1. Press the + or - button to arm the alert.
  2. When the alert is armed (ON) the alert value will flash
  3. Press the + or - button to set the alert value (Hold to set quickly).
  4. Press ALERTS button to move to next alert.
  5. Press the SEARCH button at any time to exit.

Alert OFF:

  1. Alerts are OFF unless armed. If you do not wish to set an alert, simply press the ALERTS button again to move to the next alert.

Alert Setting Order:

  • Outdoor LOW Temperature ON/OFF
  • Outdoor LOW Temperature Value -40°F-140°F (-40°C-60°C)
  • Outdoor HIGH Temperature ON/OFF
  • Outdoor HIGH Temperature Value -40°F-140°F (-40°C-60°C)
  • Outdoor LOW Humidity ON/OFF
  • Outdoor LOW Humidity Value 10%RH-99%RH
  • Outdoor HIGH Humidity ON/OFF
  • Outdoor HIGH Humidity Value 10%RH-99%RH
  • Indoor LOW Temperature ON/OFF
  • Indoor LOW Temperature Value 32°F-99°F (0°C-37°C)
  • Indoor HIGH Temperature ON/OFF
  • Indoor HIGH Temperature Value 32°F-99°F (0°C-37°C)
  • Indoor LOW Humidity ON/OFF
  • Indoor LOW Humidity Value 10%RH-99%RH
  • Indoor HIGH Humidity ON/OFF
  • Indoor HIGH Humidity Value 10%RH-99%RH

Active Alert

warning

  • The alert icon will only show when the alert is active, and indicate HI or LO.
  • When armed alert value is reached, station will beep 5 times, once each minute, until out of alert range.
  • The flashing alert icon will indicate whether it is a LO or HI alert.
  • Press any button to stop the temp/humidity alert sound.
  • The alert icon will still flash while value is in alert range.

Disarm Alert:

  1. Hold the ALERTS button to enter alert setting menu.
  2. Press the ALERTS button until you see the alert you wish to disarm.
  3. Press the + or - button to disarm the alert. The alert will not sound.
  4. Press the SEARCH button to exit.

  • In normal mode hold the SEARCH button to search for sensor.
  • The sensor reception icon will animate while searching for sensor.
  • The icon will be solid when the sensor is connected.
  • The station will search for missing sensor for 3 minutes every hour.
  • If the signal is lost, station will display the LAST DATA recorded from the sensor for 10 minutes.
  • After that 10 minutes if the signal does not come back dashes will show.

Position TX141TH-Bv2 Sensor

  • To mount the sensor, use the hole at the top to either hang it from the back using a nail, or insert one mounting screw through the front
  • Mount the TX141TH-Bv2 sensor on a north-facing wall or in any shaded area. Under an eave or deck rail is preferred.
  • The maximum wireless transmission range to the weather station is over 330 feet (100 meters) in open air, not including walls or floors.
  • Be sure the sensor is mounted vertically, to allow moisture to drain out properly.
  • Watch sensor mounting video: http://bit.ly/TH_SensorMounting

Position Weather Station

  • Pull out the stand and place on a flat surface.
  • Or use the three hanging holes on the back to mount on a wall.
  • Choose a location 6 feet or more away from electronics such as cordless phones, gaming systems, televisions, microwaves, routers, etc.
  • Place within range of the outdoor sensors (330 ft, 100m open air).
  • Obstacles such as walls, windows, stucco, concrete, and large metal objects can reduce the range.

Low Battery Icon

  • By indoor humidity; replace batteries in station.
  • By outdoor temperature; replace batteries in the sensor.

Restart

A factory restart of the station returns it to default settings, and "out of the box" condition and may resolve connection issues.

  1. Be sure there are fresh batteries in the sensor and station.
  2. Hold the ALERTS and PRESSURE button together for 5 seconds to restart the station.

Specifications

Indoor
Temperature Range 32°F to 99°F (0°C to 37°C)
  • When above 99°F (37°C) temperature shows "HI";
  • When below 32°F (0°C) temperature displays "LO".
Humidity Range 10% to 99% RH
Update Interval About every 60 seconds
Relative Pressure Range 23.62 to 32.48 inHg (800 to 1100 hPa)
Update Interval About every 12 minutes
Thermo-hygro Sensor
Temperature Range -40°F to 140°F (-40°C to 60°C)
Note: When temperatures are colder than -22°F (30°C) it is recommended to use lithium batteries
Humidity Range 10% to 99% RH
Update Interval About every 51 seconds
Transmission Range over 330 feet (100 meters)
Power
Weather Station 3 AA LR6, IEC batteries (not included)
TX141TH-Bv2 Sensor 2 AA LR6, IEC batteries (not included)
Battery Life
Weather Station over 12 months with reputable batteries
TX141TH-Bv2 Sensor over 24 months with reputable batteries
Dimensions
Weather Station 6.88" L x 1.25" W x 6.42" H
(17.5cm L x 3.2cm W x 16.3cm H)
TX141TH-Bv2 Sensor 1.57" L x 0.79" W x 5.12" H
(4.0cm L x 2.0cm W x 13.0cm H)

Care and Maintenance

  • Do not mix old and new batteries.
  • Do not mix Alkaline, Standard, Lithium, or Rechargeable Batteries.
  • Always purchase the correct size and grade of battery most suitable for intended use.
  • Replace all batteries of a set at the same time.
  • Clean the battery contacts and also those of the device prior to battery installation.
  • Ensure the batteries are installed with correct polarity (+ and -).
  • Remove batteries from equipment when it is not used for an extended period of time.
  • Promptly remove expired batteries.

Warranty and Support

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.
Before returning a product, please contact our friendly customer support with questions or visit our online help:
Phone: 1-608-782-1610
Online Product Support and Registration: www.lacrossetechnology.com/support
View full warranty details online at: www.lacrossetechnology.com/warranty_info.pdf

Visit Us on Social Media

JOIN THE CONVERSATION
Ask questions, watch detailed setup videos, and provide feedback on our social media outlets!

For online video support: http://bit.ly/LaxTechTalk

Support Documents
FIND FULL MANUALS, FAQS, AND MORE UNDER THE SUPPORT TAB HERE: http://bit.ly/308-1417
