FEATURES:
• 150W + 150W Continuous Power Output at (4 Ohms)
• 24-bit level Audio Quantization
• 4 Speaker Output for Increased Sound Coverage
• 15-Step DSP Key Controller with Auto Reset
• Digital Echo with Repeat and Delay controls
• DSP Reverb for Exceptional Sounding Vocals
• Sonic Enhancer with High/Low Frequency Controls
• Vocal Cancel and Partner Modes for Multiplex Karaoke Media
• Music Bass and Treble controls
• 6 Microphone Inputs with Bass and Treble controls
• Remote Key Control Jack
• Noise Reduction Circuitry for Superb Recording Results
• Multiple Auto A/V Source Selector (2 Video, 3 Audio) w/ Background Video/Music
• 2 AC Outlets/Unswitched/(200W)
• Full Function Remote Control
• Dual voltage Selector
• Frequency Response: 20-20,000 HZ(±3db)
• S/N > 75db
DA-9800RV
2 4 B i t D S P R E V E R B
Advertisement
Table of Contents
Related Manuals for VocoPro DA-9800RV
Summary of Contents for VocoPro DA-9800RV

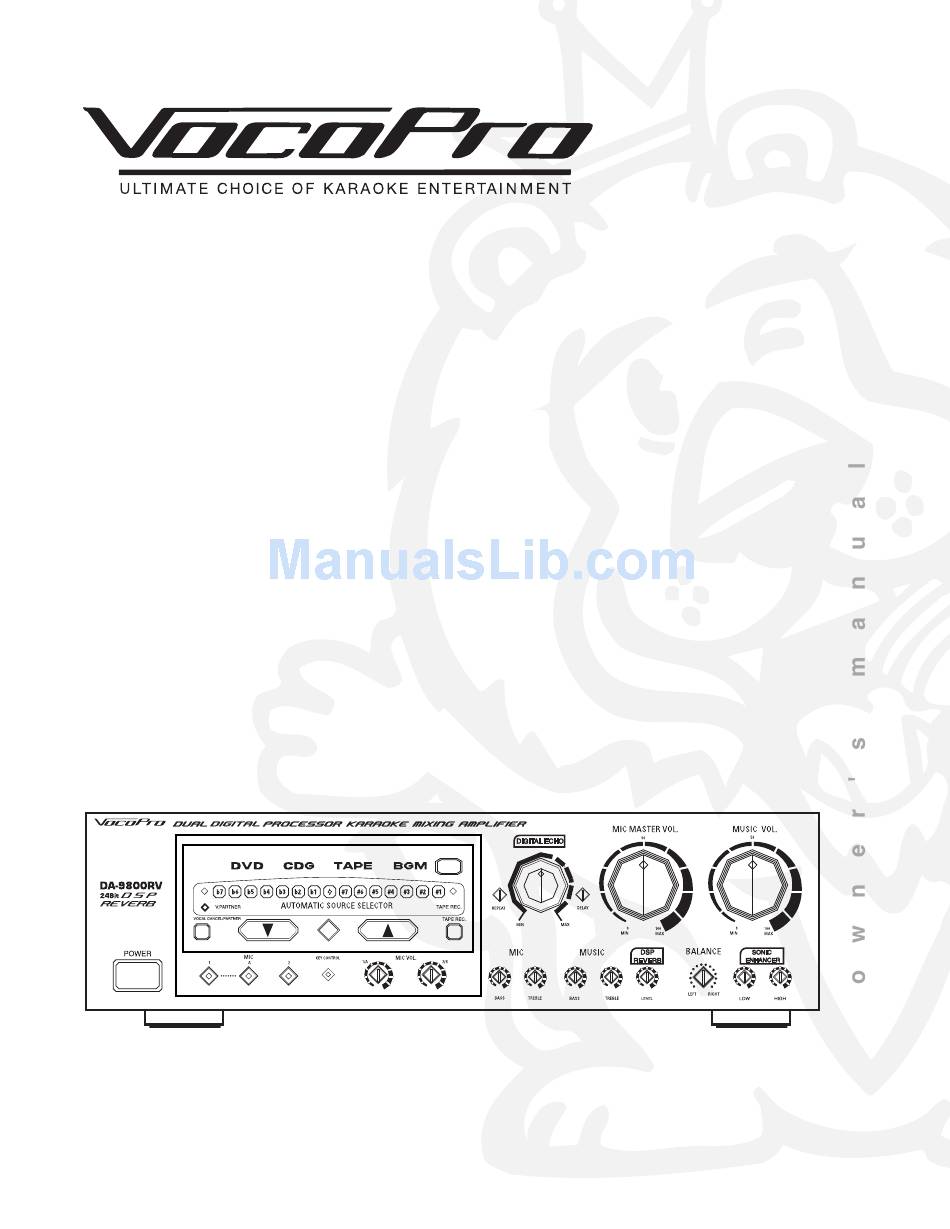

- Page 1 • Multiple Auto A/V Source Selector (2 Video, 3 Audio) w/ Background Video/Music • 2 AC Outlets/Unswitched/(200W) • Full Function Remote Control • Dual voltage Selector • Frequency Response: 20-20,000 HZ(±3db) • S/N > 75db DA-9800RV 2 4 B i t D S P R E V E R B...
-
Page 2: Table Of Contents
Recommended VocoPro Gear ........ -
Page 3: Cautions And Warnings
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. - Page 4 CAUTION: Read this before operating your unit The apparatus is not disconnected from the AC power source so long as it is connected to the wall outlet, even if the apparatus itself is turned off. To fully insure that the apparatus is indeed fully void if residual power, leave unit disconnected from the AC outlet for at least fifteen seconds.
-
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 6: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 7: Before Getting Started
• Insert each cable firmly into the designated jack. • If you place components above the DA-9800RV, route all cables down the side of the back of the DA-9800RV instead of straight down the middle of the back of the DA-9800RV. -
Page 8: Features And Specifications
The DA-9800RV's Features • 150W + 150W Continuous Power Output at (4 Ohms) • 24-bit level Audio Quantization • 4 Speaker Output for Increased Sound Coverage • 15-Step DSP Key Controller with Auto Reset • Digital Echo with Repeat and Delay controls •... -
Page 9: Front Panel Descriptions
Front Panel Descriptions 1. MUSIC VOLUME Control – This control increases and decreases the MASTER MUSIC VOLUME. To adjust the MUSIC VOLUME, turn clockwise to increase and counter-clockwise to decrease. 2. MIC MASTER VOLUME Control – The MIC MASTER VOLUME control serves as a single VOLUME control for all MIC channels. -
Page 10: Front Panel Descriptions
Front Panel Descriptions 7. POWER Switch – This button turns the DA-9800 RV ON/OFF. 8. MIC INPUT & REMOTE KEY CONTROL Jacks – Connect microphones with 1 / 4” plugs to these input jacks. The 1/8” REMOTE KEY CONTROL jack accepts the 1/8” plug from a key controllable microphone. 9. -
Page 11: Rear Panel Descriptions
ATTENTION: RISQUE DE CHOC ELECTRIQUE. NE PAS ENLEVER LES VIS. SPEAKER SYSTEM AC OUTLETS LA VERNE CALIFORNIA SAME AS LINE VOLTAGE U.S.A UNSWITCHED 300W MAX TOTAL KARAOKE AMPLIFIER 11-220V/220-240V~50/60HZ POWER CONSUMPTION:175W MAX POWER CONSUMPTION: 690W VOLTAGE SELECTOR 220-240V ~110-120V~ www.vocopro.com MADE IN TAIWAN... -
Page 12: Rear Panel Descriptions
STEREO AUTO F LEVEL MONO SERIAL NO. AUDIO 24 25 CAUTION: FOR CONTINUED PROTECTION AGAINST www.vocopro.com :MINIMUM 4 HOMS FIRE HAZARD, REPLACE ONLY WITH SAME TYPE FUSE. 110-220V~18.A 250V. :MINIMUM 4 HOMS 220-240V~T4A 250V. :MINIMUM 8 HOMS CAUTION: SHOCK HAZARD, DO NOT REMOVE SCREWS. -
Page 13: Remote Descriptions
Remote Control Descriptions NATURAL DOWN KEY CONTROL DOWN 1.KEY CONTROL (UP) BUTTON: Press to transpose the key of music 1/4 tone UP per step 2.KEY CONTROL (NATURAL) BUTTON: Press to reset music to its ORIGINAL key. 3.KEY CONTROL (DOWN) BUTTON: Press to transpose the key of music 1/4 tone DOWN per step 4.MUSIC VOLUME (UP) BUTTON: Press to RAISE the volume of the music. -
Page 14: Getting Connected
CABLE BOX SPEAKER SYSTEM 1 WARNING: MINIMUM SPEAKER IMPEDANCE IS 4 OHMS SPEAKER SYSTEM 2 WARNING: DO NOT HOOK UP MORE THAN ONE SPEAKER PER SPEAKER JACK. TV/MONITOR DA-9800RV DSP ECHO DA-9800RV D S P 24Bit REVERB V.PARTNER TAPE REC. -
Page 15: Troubleshooting
Troubleshooting PROBLEMS No output is being transmitted. Unable to connect the DA-9800 RV to my television monitor with the RCA cable provided. There is a loud "squealing" noise coming from the speakers. SOLUTIONS The input level for the source player is set too low to be recognized. -
Page 16: Recommended Vocopro Gear
Recommended VocoPro Gear CDG-4000 PRO Professional CD/CD+ Graphic Player • Pro CD Player W/ CD + Graphics Decoder • Pitch Control To 12% (+) Or (-) • Scramble protection during pitch changes • Single Track Mode • Frame Search W/ Jog Dial •... -
Page 17: Power Amplifier
Recommended VocoPro Gear VP-600X 2 Space 600W Professional Power Amplifier • 300W + 300W RMS • 600W + 600W Max • THD: 0.05% • Frequency Response: 20HZ-20KHZ Signal to Noise • 1/4" or XLR Inputs • Input Ratio: Less than 100DB •... - Page 18 Recommended VocoPro Gear LCD-V5 5" TFT LCD Color Monitor • TFT LCD Color Monitor • Audio/Video Input • 3 Watts Stereo Speakers • Headphone Output With Volume Control • Color/Brightness Adjustment • Reversible Screen Control For Both Table Top Or Auto Roof Mounting •...
-
Page 19: Recommended Vocopro Gear
Recommended VocoPro Gear SV-420 Professional 8" 3 Way Vocal Speakers • 3 Way 8" Karaoke Vocal Speakers (Sold in Pair) • Design for Karaoke Studio or Singers Monitor • Power Rating: 180 Watts Peak / 90 Watts RMS • Metal Grill •...
Need help?
Do you have a question about the DA-9800RV and is the answer not in the manual?
Questions and answers
I have amplify Vocopro DA9800RV try to connect the microphone Jack in but no sound out to speakers
There may be no sound coming from the speakers when connecting a microphone to the VocoPro DA-9800RV due to the following reasons:
1. Microphone Volume Too Low – Ensure the microphone volume is turned up.
2. Faulty Connection – Check that the microphone is properly connected to the correct input jack.
3. External Component Failure – Verify that the microphone and cables are functioning properly.
4. Power Cord Not Plugged In – Ensure the DA-9800RV is plugged into a power source.
5. Incorrect Input Source – Confirm that the correct input source is selected on the device.
Checking these factors should help resolve the issue.
This answer is automatically generated
