THE SINGER'S ULTIMATE CHOICE
• Professional grade KJ, DJ and VJ mixer with Video Select Toggle/Crossfader
• Integrated power amplifier
• 19" rack mountable, requiring only 6 spaces
• 7 input options; 4 Mics each with XLR/Phono, and 3 switchable AV/Phono/CD inputs, including a
pair with line input option
• 4 Mic Insert Loops for 1/4" connection of external stereo effects
• 3 video inputs and 3 outputs for multi-screen video options
• Bridge/Stereo speaker outputs
• Bridge/Stereo switch for quick switching between Bridge and Stereo output modes.
• Assignable 11-step Digital Key Controller with 1/2 tone increments per step and
Remote Key Control option
• Professional Digital Echo for each Mic channel with master Repeat and Delay and
Level controls
• Vocal Cancel and Vocal Partner for use with Multiplex CDs
• Vocal Eliminator can remove lead vocals from standard recordings
• Talkover function with automatic mode, headphone jack with Level control and 12V
DJ lamp jack for professional production
• 5-Band Graphic Equalizer for best fidelity and precision tuning
• Booth Phono Outputs, Balanced XLR or Unbalanced RCA Master Outputs, Auxiliary
AV and Record Outputs
1 2 3 4
(BALANCED)
(BALANCED)
(BALANCED)
GAIN
GAIN
GAIN
TREBLE
TREBLE
TREBLE
BASS
BASS
BASS
ECHO
ECHO
ECHO
CUE
CUE
CUE
ON
ON
ON
KEY
KEY
KEY
ON
ON
ON
MIC 1
MIC 2
MIC 3

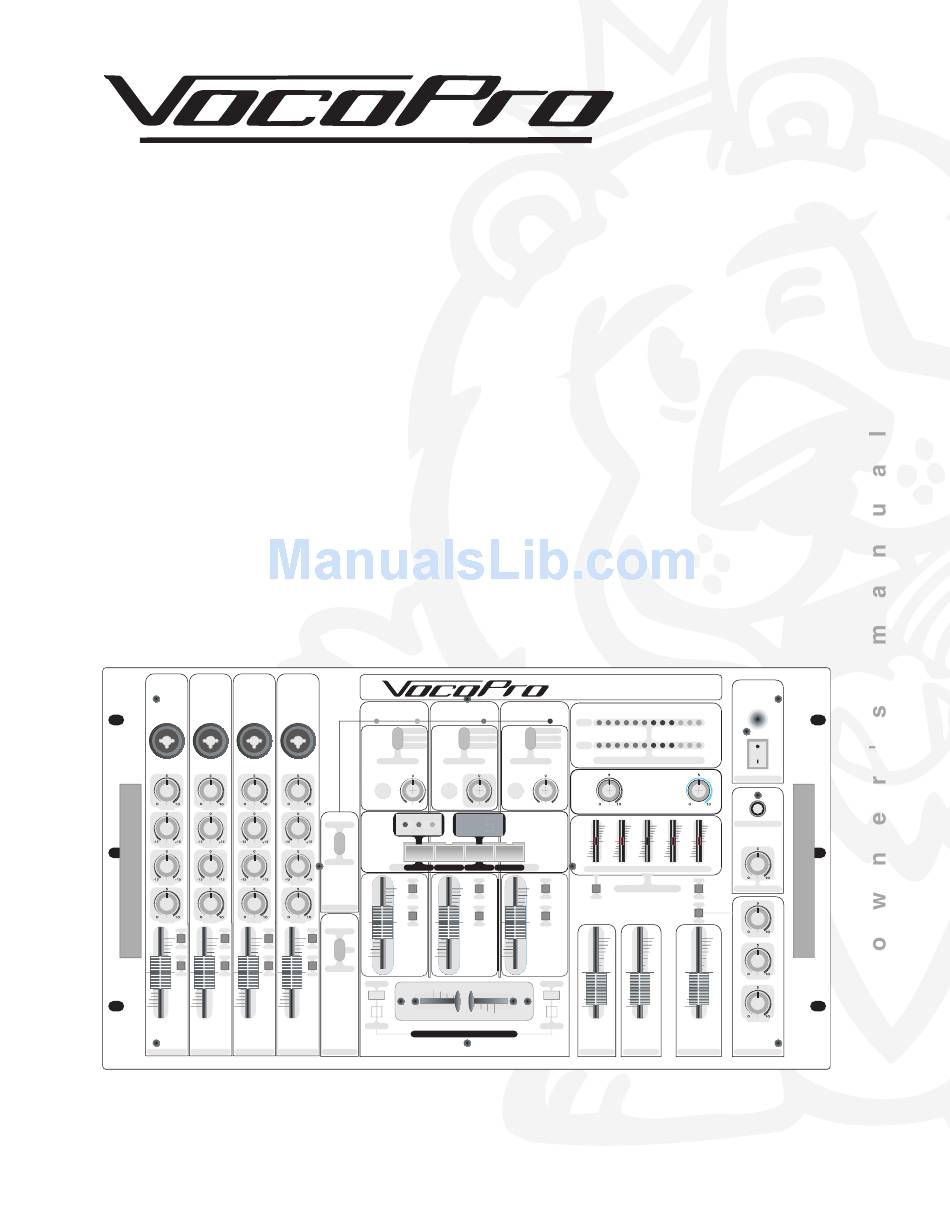

PKJ-9090PRO
PROFESSIONAL KARAOKE MIXER WITH DSP KEY CONTROL
CROSSFADER
VIDEO TOGGLE
VIDEO 1
AV 1
PH 1/LINE
CD 1
STEREO 1
STEREO 2
(BALANCED)
SIGNAL
SIGNAL
-20
+6
-20
GAIN
GAIN
VOCAL EFFECTS
MANUAL
PARTNER ELIMI. MULTI.
TREBLE
CROSSFADER
VOCAL
DOWN
CUE
BASS
ON
VIDEO SEL.
KEY
ECHO
ON
CUE
AUTO
ON
OFF
1
KEY
ON
ON
1
2
ASSIGN
CROSSFADER / VIDEO TOGGLE
MIC 4
TALK OVER
AND CROSSFADER VIDEO TOGGLE
PKJ-9090PRO
PROFESSIONAL
DJ/KJ/VJ
DSP KEY CONTROL AND
VIDEO 2
VIDEO 3
CROSSFADER VIDEO TOGGLE
LEFT
AV 2
AV 3
-26 -20 -17 -14 -10 -6
PH 2/LINE
PH 3/LINE
CD 2
CD 3
RIGHT
OUTPUT LEVEL DISPLAY
STEREO 3
SIGNAL
+6
-20
+6
GAIN
GAIN
AV OUT LEVEL
+12
+12
+12
-12
-12
NORMAL
UP
60
250
1K
CUE
CUE
MASTER EQUALIZER
ON
ON
ON
KEY
KEY
ON
ON
2
3
2
3
ASSIGN
MASTER/LEFT
MASTER/RIGHT
POWERED MIXER
LIGHT
(DC 12V)
0 +3 +6 +9 +10 +15
POWER
POWER AMP LEVEL
HEADPHONES
+12
+12
-12
-12
-12
4K
12K
CUE
PHONES LEVEL
MAST
ECHO
ON
LEVEL
REPEAT
DELAY
BOOTH
DIGITAL ECHO
Advertisement
Table of Contents
Related Manuals for VocoPro PKJ-9090PRO
Summary of Contents for VocoPro PKJ-9090PRO
- Page 1 ECHO ECHO ECHO ECHO AUTO MIC 1 MIC 2 MIC 3 MIC 4 TALK OVER PKJ-9090PRO PROFESSIONAL KARAOKE MIXER WITH DSP KEY CONTROL AND CROSSFADER VIDEO TOGGLE PKJ-9090PRO PROFESSIONAL CROSSFADER VIDEO TOGGLE VIDEO 1 VIDEO 2 VIDEO 3 CROSSFADER VIDEO TOGGLE...
-
Page 2: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 3: Fcc Information (U.s.a.)
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. -
Page 4: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 5: Table Of Contents
PKJ-9090PRO Key Control and Crossfader Video Toggle Table of Contents Safety Instructions ... 1 FCC Information ... 2 Listening For A Lifetime ... 3 Table of Contents ... 4 Specifications ... 5 Welcome ... 6 Mounting ... 7 Getting Connected ... 8 Microphone Panel Description and Functions ... -
Page 6: Specifications
Specifications Inputs Sensitivity: MICRO 1,2,3,4 (TOP) ...1.5mV/1K ohms (Balanced XLR Jack) AV/CD ...150mV/10K ohms (RCA Jack) PHONO ...3.0mV/47K ohms (RCA Jack) Outputs: MASTER OUTPUT ...1.5V/600 ohms (XLR Jack/Balance) ...1.5V/600 ohms (RCA Jack/Unbalance) BOOTH OUTPUT ...1.5V/600 ohms (¼” Jack/Unbalance) AV OUTPUT ...1.5V/600 ohms (RCA Jack/Unbalance) REC OUTPUT ...500mV/600 ohms (RCA Jack/Unbalance) HEADPHONES ...400mV/32Ω... -
Page 7: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 8: Mounting
Mounting To mount, carefully place the PKJ-9090PRO in the rack space of your case. The PKJ-9090PRO takes 4 screws to mount. Make sure holes are aligned evenly. Use an alternating “X” rotation when screwing to ensure even tension and alignment. -
Page 9: Getting Connected
CDG Player Since the PKJ-9090PRO has numerous connectivity options, and there exist many variations in user needs, we illustrate a system where all possible connections are used. Note: This is a reference model only. Refer- ence what you need from the diagram. -
Page 10: Microphone Panel Description And Functions
Microphone Panel Descriptions and Functions PROFESSIONAL KARAOKE MIXER WITH DSP KEY CONTROL AND CROSSFADER VIDEO TOGGLE (BALANCED) (BALANCED) (BALANCED) GAIN GAIN GAIN TREBLE TREBLE TREBLE BASS BASS BASS ECHO ECHO ECHO MIC 1 MIC 2 MIC 3 1. XLR or ¼” MICROPHONE/LINE INPUTS - This combination input can be used to connect either a low impedance (XLR), high impedance (¼”) microphone or line-level device. -
Page 11: Middle Panel Description And Functions
Middle Panel Descriptions and Functions 1. VIDEO SELECT toggle - Holding this switch in the CROSSFADER position for a second, toggles video selection options between either CROSSFADER activation and MANUAL. When in CROSSFADER mode, the LED above CROSSFAD- ER VIDEO TOGGLE will illuminate blue. This indi- cates that video ouput signal is recieved from the two assigned sources in the crossfader ASSIGN selections. -
Page 12: Middle Panel Description And Functions
Middle Panel Descriptions and Functions Cont... CROSSFADER VIDEO TOGGLE VIDEO 1 AV 1 PH 1/LINE CD 1 STEREO 1 SIGNAL SIGNAL GAIN VOCAL EFFECTS MANUAL PARTNER ELIMI. MULTI. CROSSFADER VOCAL DOWN VIDEO SEL. AUTO ASSIGN CROSSFADER/VIDEO TOGGLE TALKOVER VIDEO 2 VIDEO 3 AV 2 AV 3... -
Page 13: Master Panel Description And Functions
1. LED METERS - These meters display system OUTPUT LEVELS. For maximum performance with a clean, undistorted signal, increase source out- put, as well as the PKJ-9090PRO’s GAIN, CHAN- NEL FADER and L/R MASTER FADERS until meter LIGHT peaks in the yellow LED range (-2 to +4). Input... -
Page 14: Master Panel Description And Functions
Master Panel Descriptions and Functions Cont... LEFT -38 -30 -20 -10 -7 -4 0 +2 +4 +7 +10 RIGHT OUTPUT LEVEL DISPLAY A/V OUT LEVEL POWER AMP LEVEL MASTER EQUALIZER MASTER/L MASTER/R LIGHT (DC 12V) (BNC) POWER HEADPHONES PHONES LEVEL REPEAT DELAY BOOTH... -
Page 15: Rear Panel Description And Functions
7. PHONO 1, 2, 3/LINE INPUT- Use these STEREO INPUT jacks to connect turntables using L/R RCA. With PHONO 1 and 2, you also have the option of selecting line input, using #9 in conjunction with these jacks. Adjust the STEREO CHANNEL SOURCE toggle on the middle panel of the PKJ-9090PRO accord- ingly. - Page 16 12. VIDEO IN 1, 2, 3 - These jacks allow the video component of CD+G, DVD, VCD and LD players to be connected to the PKJ-9090PRO. Connect video cables from the VIDEO OUT jacks on your player(s) to these VIDEO IN jacks.
-
Page 17: Amplifier
Rear Panel (Amp) Descriptions and Functions 1. SPEAKER/BRIDGE OUTPUTS - This connection outputs to speakers using “banana cables”. You have the option of using the Bridge configuration or the Stereo configuration. See the OPERATIONS section for instructions on using the STEREO or BRIDGE configuration. 2. -
Page 18: Mixer
Advanced Operations Digital Key Control (BALANCED) (BALANCED) Using Digital Key Control Use the Digital Key Controller to obtain the a musical key that matches the natural range of your voice. You can increase or decrease the original or “NORMAL” note by 6 steps to cover the total musical range of 12 different keys. -
Page 19: Digital Echo
Advanced Operations Cont... Digital Echo PROFESSIONAL KARAOKE MIXER WITH DSP KEY CONTROL AND CROSSFADER VIDEO TOGGLE Customizing Digital Echo settings (See Figure 1) When using Digital Echo, you can customize the effect by adjusting the ECHO, REPEAT and DELAY controls. (BALANCED) (BALANCED) First set the ECHO level control to 5. -
Page 20: Talk Over
Advanced Operations Cont... Talk Over Making an announcement during playback To make an announcement during music playback, you most likely will want the music at a low enough volume so that you can be heard over the music clearly. To do this, you use the TALK OVER function(pg 9, #9) when the toggle is set to ON, the music volume is lowered considerably to allow for the announcement. -
Page 21: Recording
Advanced Operations Cont... Master Cueing Master Cueing will cue the MASTER OUTPUT to the headphones. This is commonly used to isolate the audio signal to the headphones. Master cueing makes it possible to practice when “audible” music is not permitted i.e. late night practicing at home. To MASTER CUE, make sure the CUE/MASTER button is set to MASTER and adjust the CUE LEVEL control to a desired volume level. -
Page 22: Stereo/Bridge Output Configurations
Advanced Operations Cont... Bridge Operation 1. Set the STEREO/BRIDGE switch to the BRIDGE position. 2. With the PKJ-9090’s power OFF, connect the banana plug cables from the speaker’s output to the STEREO.BRIDGE input horizontally. When using the bridge connection, only one cable can be used. ( - ) ( - ) Bare wire... -
Page 23: Crossfader
Troubleshooting Problems No sound coming from selected music source No video output from display devices Video cancel/partner features are not working properly Talk over feature lowers microphone volume with music volume Crossfader isn’t fading between channels No channels or volume being cued to head phones No audio being routed through insert channels... - Page 24 Vocopro 2005 V 1.1 WWW.VOCOPRO.COM...
