VocoPro DA-5800RX Owner's Manual

VocoPro DA-5800RX Owner's Manual

Digital signal processor karaoke preamplifier with digital key control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THE SINGER'S ULTIMATE CHOICE
DA-5800RX
Digital Signal Processor Karaoke Preamplifier With Digital Key Control
MIC 1
MIC 2
MIC 3
MIC 1 MIC 2 MIC 3 BASS
0 10
0 10
MIC INPUT
MIC VOL
DA-5800RX
Digital Signal Processor Karaoke Preamplifier
With Digital Key Control
REVERB
ECHO
ECHO
CHORUS
HALL
DELAY
KEY CONTROL
VOLUME
MIC
EFFECT
EFFECT
MID
FREQ
TREB
LPF
0 10 -15 +15 -15 +15 256 6k -15 +15 11
10
MIC EQ
REVERB
TREMOLO
INPUT
MUSIC
MASTER
MIC MASTER VOL
EFFECT VOL
INPUT
DSP
BASS
TREBLE
BAL
MUSIC
KEY
-15 +15 -15 +15
L
R
L/R
EFFECTS
MUSIC
0
10
0
MUSIC VOL
POWER
10
0
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-5800RX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VocoPro DA-5800RX

Summary of Contents for VocoPro DA-5800RX

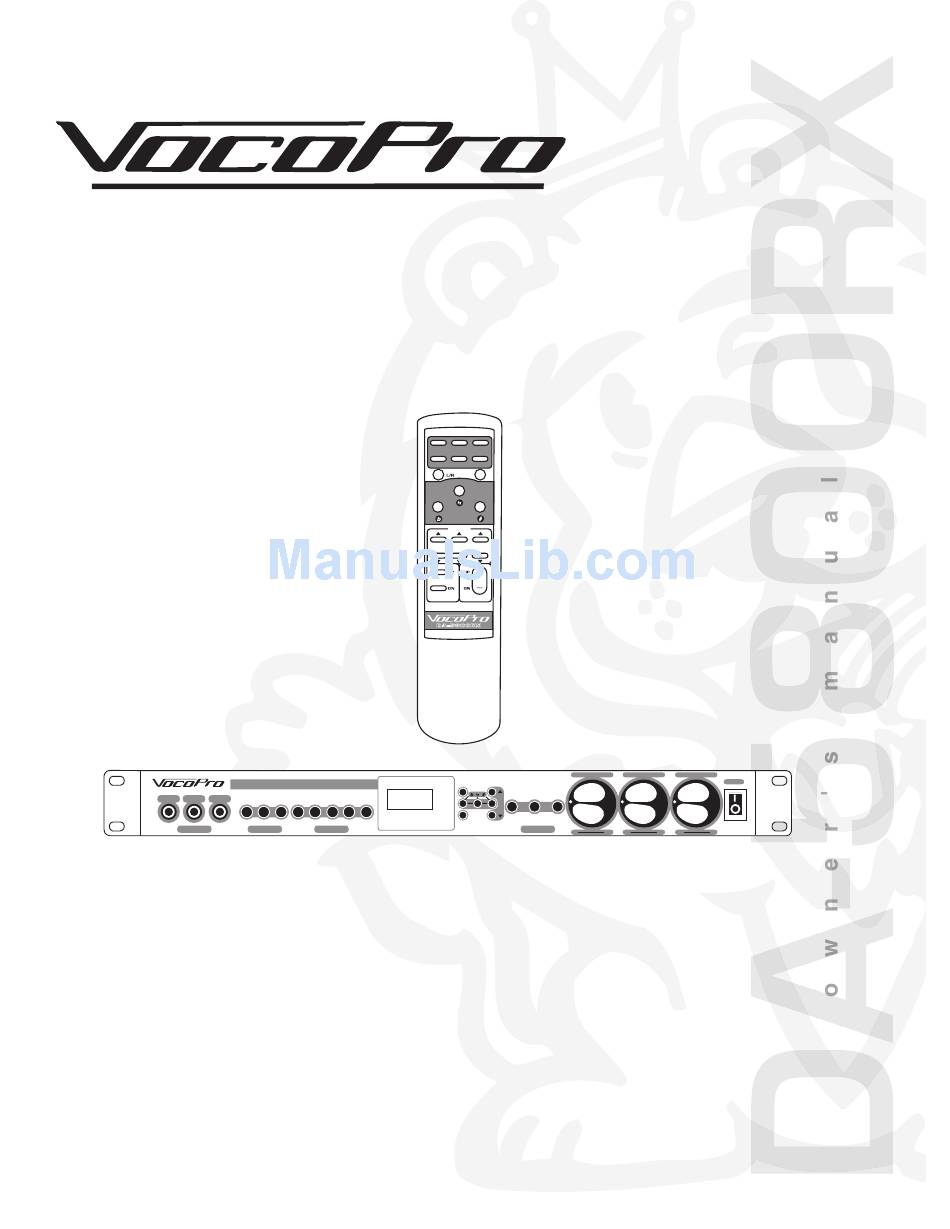

  • Page 1 THE SINGER'S ULTIMATE CHOICE DA-5800RX Digital Signal Processor Karaoke Preamplifier With Digital Key Control MIC 1 MIC 2 MIC 3 MIC 1 MIC 2 MIC 3 BASS FREQ 0 10 0 10 0 10 -15 +15 -15 +15 256 6k -15 +15 11...

  • Page 2: Safety Instructions

    Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
  • Page 3 UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.

  • Page 4: Welcome

    Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.

  • Page 5: Listening For A Lifetime

    Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.

  • Page 6: Table Of Contents

    Table of Contents Safety ... I FCC Information ... II Welcome ... III Listening for a Lifetime ... IV Specifications and Features ... 1 Mounting ... 2 Getting Connected ... 3 Controls and Functions ... 5 Front Panel ... 6 Rear Panel ...

  • Page 7: Specifications And Features

    Specifications and Features Features • 24 Bit high-speed DSP digital chip • 48KHz sampling rate • 60 internal effects each with LPF adjustment for added control and customization. • Vocal tonal enhancer for optimal vocal quality • Sonic Enhancer improves the music quality. •...

  • Page 8: Mounting

    Mounting the DA-5800RX Use the DVG-909K’s built-in mounting brackets to mount it into a 19” rack case. The DA-5800RX player requires 1 RU (1.75”) of available rack space. You Will Need: • 19” Rack Case with at least 1 RU (1.75”) available •...

  • Page 9: Getting Connected

    Getting Connected LEVEL FREQ MASTER CENTER SUB OUT CENTER VIDEO LEVEL LEVEL SUBWOOFER INPUT AUX R AUX L AUDIO INPUT GIG-MASTER COMPA CT COMPA CT MULTI-FORMAT PLAYER/MIXING AMPLIFIER PRO DI GITAL ECH O DI GITAL AUDI O DI GITAL AUDI O STANDBY EJECT POWER...
  • Page 10 Getting Connected cont. Outputting audio and video from the DA-5800RX SUB-1500 EXTERNAL REMOTE (OPTIONAL) LEVEL FREQ MASTER CENTER EXCITER AUDIO OUTPUT SUBWOOFER Connecting microphones to the DA-5800RX Connect up to three microphones to the MIC 1, MIC 2, and MIC 3 ¼” inputs using a mic cable with a ¼” jack.

  • Page 11: Controls And Functions

    Controls and Functions Front Panel DA-5800RX Digital Signal Processor Karaoke Preamplifier With Digital Key Control MIC 1 MIC 2 MIC 3 MIC 1 MIC 2 MIC 3 BASS 0 10 0 10 MIC INPUT MIC VOL 1. Microphone inputs - Connect microphones here using 2.

  • Page 12: Front Panel

    Controls and Functions Front Panel DA-5800RX Digital Signal Processor Karaoke Preamplifier With Digital Key Control MIC 1 MIC 2 MIC 3 MIC 1 MIC 2 MIC 3 BASS 0 10 0 10 MIC INPUT MIC VOL 9. L/R button - These buttons will cycle between three...

  • Page 13: Rear Panel

    Controls and Functions Rear Panel 115V 230V 1. AC input - Connect the female end of the power cord here. 2. Voltage selector - Selects between 115V and 230V power settings. 3. Exciter On/Off - Enhances the music tone. 4. Audio Outputs (XLR) - Master output using XLR cables. 5.
  • Page 14 Controls and Functions Rear Panel EXTERNAL REMOTE (OPTIONAL) EXCITER AUDIO OUTPUT 9. Subwoofer output (RCA) - Connect to a powered subwoofer using an RCA cable. 10. Center output (RCA) - Connect to an additional monitor using an RCA cable 11. L/R Pre output (RCA) - Connect to a mixer, amp, TV etc. using L and R (white & red) RCA cables. 12.

  • Page 15: Remote Control

    Controls and Functions Remote Control 1. Direct Effect buttons - These buttons jump directly to a specific effect. a. Echo - Turns on Echo b. Reverb Echo - Turns on Reverb with Echo c. Reverb - Turns on Reverb d. Chorus Delay - Turns on Chorus with Delay e.

  • Page 16: Operations

    Switching between AV input channels Press the INPUT button on the front panel of the DA-5800RX. This will switch between the CDG AV inputs, DVD AV inputs and AUX AV inputs. NOTE: Only one input can be active at a time.

  • Page 17: Basic Operations

    First set all of the controls to the center position (±0). While somebody is speaking or singing through the mic, adjust the EQ controls until the desired tone is found. MIC 1 MIC 2 MIC INPUT DA-5800RX Digital Signal Processor Karaoke Preamplifier With Digital Key Control MIC 3 MIC 1 MIC 2 MIC 3 BASS 0 10...

  • Page 18: Troubleshooting

    • If using a power strip/surge-protector, make sure that it is plugged in and switched on. There is no sound or video • Make sure the DA-5800RX is set to the correct input • Make sure the volume is turned up, including the Master OUT on the rear panel •...
  • Page 19 Vocopro 2005 V 1.1 W WW.VOCOPRO.COM...
