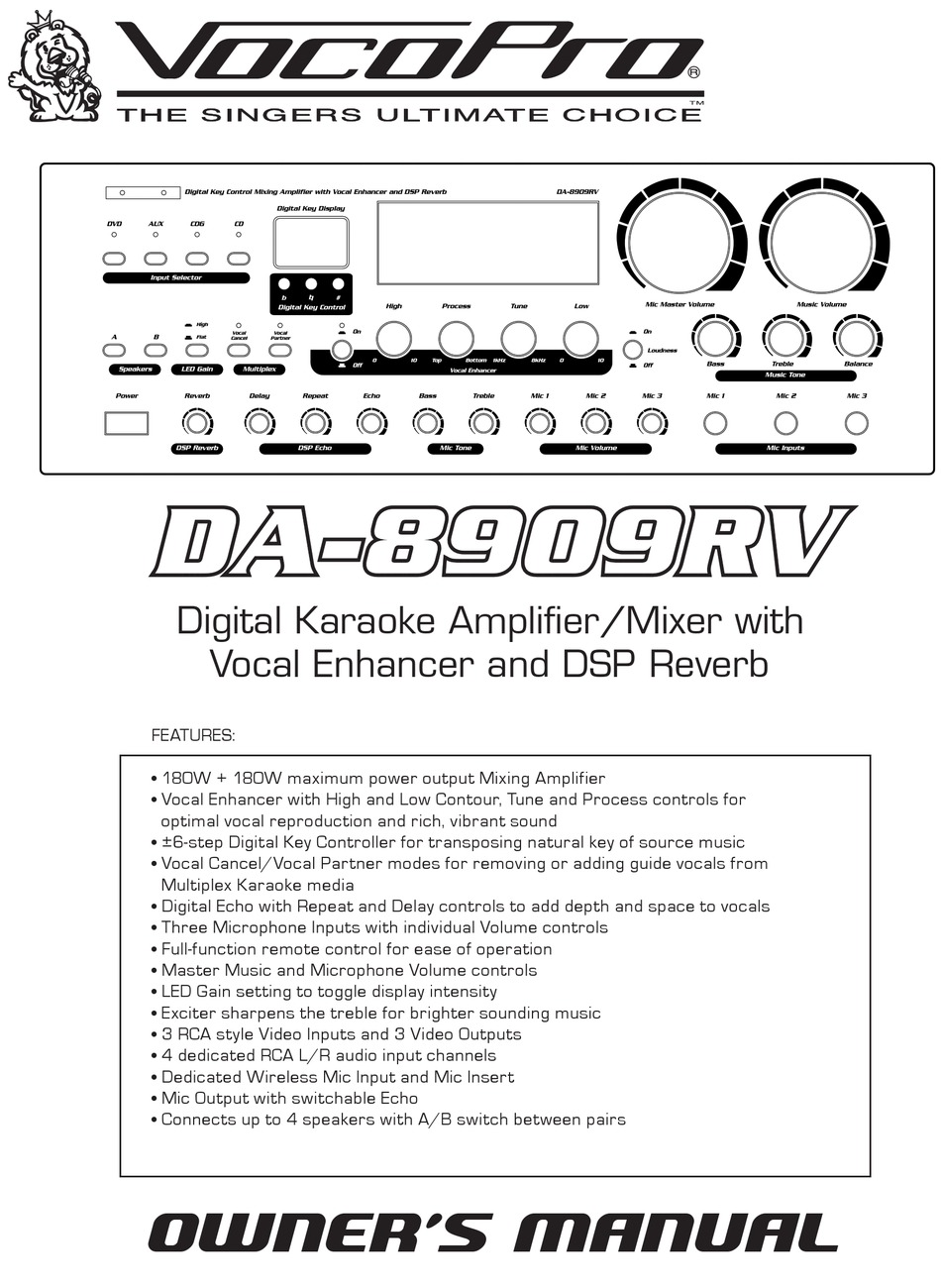

VocoPro DA-8909RV Owner's Manual

Digital karaoke amplifier/mixer with vocal enhancer and dsp reverb

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

��

�

��

FEATURES:

• 180W + 180W maximum power output Mixing Amplifier

• Vocal Enhancer with High and Low Contour, Tune and Process controls for

optimal vocal reproduction and rich, vibrant sound

• ±6-step Digital Key Controller for transposing natural key of source music

• Vocal Cancel/Vocal Partner modes for removing or adding guide vocals from

Multiplex Karaoke media

• Digital Echo with Repeat and Delay controls to add depth and space to vocals

• Three Microphone Inputs with individual Volume controls

• Full-function remote control for ease of operation

• Master Music and Microphone Volume controls

• LED Gain setting to toggle display intensity

• Exciter sharpens the treble for brighter sounding music

• 3 RCA style Video Inputs and 3 Video Outputs

• 4 dedicated RCA L/R audio input channels

• Dedicated Wireless Mic Input and Mic Insert

• Mic Output with switchable Echo

• Connects up to 4 speakers with A/B switch between pairs

OWNER'S MANUAL

��

�

��

�

��

Table of Contents

Need help?

Do you have a question about the DA-8909RV and is the answer not in the manual?

Questions and answers

Summary of Contents for VocoPro DA-8909RV

Page 1 �� ...
Page 2: Table Of Contents
DA-8909RV Manual Table of Contents Introduction Safety Instructions ... 1 & 2 Welcome ... 3 Listening for a Lifetime ... 4 Before Getting Started ... 5 Getting Connected Connecting Input Source Players ... 6 Connecting TV’s/Monitors ... 7 Descriptions and Functions Front Panel ...
Page 3: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
Page 4: Fcc Information (U.s.a.)
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft.
Page 6: Listening For A Lifetime
Now it s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
Page 7: Before Getting Started
DA-8909RV to ensure best performance. Unpacking the DA-8909RV Carefully remove the DA-8909RV from its carton. It is recommended that you store the original packaging materials in case you need to ship this equipment for any reason.
Page 8: Getting Connected
Connecting input source players to the DA-8909RV The DA-8909RV has stereo paired RCA inputs labeled for RCA stereo audio ouptut from CD, CDG, AUX and DVD players and three VIDEO inputs for corresponding video signals from CDG, AUX and DVD players.
Page 9: Connecting Tv's/Monitors
KJs and VJs to program a set. 1. Connect RCA style video cables from VIDEO OUTPUT jacks 1, 2 and 3 on the DA-8909RV to the VIDEO INPUT jack on your TV or other monitor. You may need to manually switch your TV to video mode, while some models automatically switch when a video signal is detected.
Page 10: Front Panel
1. INPUT SELECTOR - These 4 buttons allow you to select between DVD, AUX, CDG and standard CD player output to the DA-8909RV. This allows the DA-8909RV to differentiate between all the related source AUDIO INPUT options available on the back panel.
Page 11 Karaoke singer is performing, the vocals will never drop entirely out, keeping the action going. VOCAL ENHANCER - Because the DA-8909RV allows you to “TUNE” the frequency and mix, or “PROCESS” of your mi- crophone output, it is a more powerful EQ tool than standard Bass and Treble controls.
Page 12: Front Panel ................................................................................... 8
�� 17. POWER BUTTON - Use this button to turn the DA-8909RV ON or OFF. 18. REVERB VOLUME - Controls the output level of the reverb effect. Select between a range of 0 - 99% by turning the control clockwise to increase the reverb output level and counter-clockwise to decrease the reverb output level.
Page 13: Rear Panel
Rear Panel Descriptions and Functions �� 1. MIC MUTE switch - Mutes the microphone vocal output. Swtich ON to mute the microphone vocals and OFF to unmute the microphone vocals.
Page 14 13. PRE OUTPUT - These jacks are designed for connection to external power amplifiers. Output signals from the PRE OUTPUT are sent before the DA-8909RV amplification stage. This allows you to power your speaker system from a separate amplifier rather than the speaker output from the DA-8909RV.
Page 15: Remote Control
(front panel, #6) and the to lower the MUSIC VOLUME.  You will see the controls on the DA-8909RV move as you make adjustments using the remote keys. 5. VOCAL CANCEL/VOCAL PARTNER - With Multiplex media, lead vocals and music are recorded in separate left and right stereo channels. When the VOCAL CANCEL (VOC/C) button on the remote is selected, the LED will illuminate and the lead vocal channel will be removed, leaving a duplicated instrumental track to left and right only.
Page 16: Advanced Operations
Often, vocalists use external effects such as Echo, Reverb and Key Control. While enhancing vocals, these effects can also limit the signal’s sound quality. The DA-8909RV’s Vocal Enhancer can help “clean up” the vocal signal after effects have been applied.
Page 17: Loudness Control
DA-8909RV Specifications MAXIMUM POWER OUTPUT ... 180W + 180W AUDIO MICROPHONE ... 2.5MV/10KΩ DVD/AUX/CDG/CD ... 150MV/50KΩ VIDEO DVD/AUX/CDG ... 1V P-P/75Ω FREQUENCY RESPONSE DVD/AUX/CDG ... 20Hz–20kHz 3db TONE CONTROL (MUSIC/MIC) BASS ... 10db/±8db (100Hz) ±3db TREBLE ... 10db/±8db (10KHz) ±3db LOUDNESS CONTROL 100Hz ...
