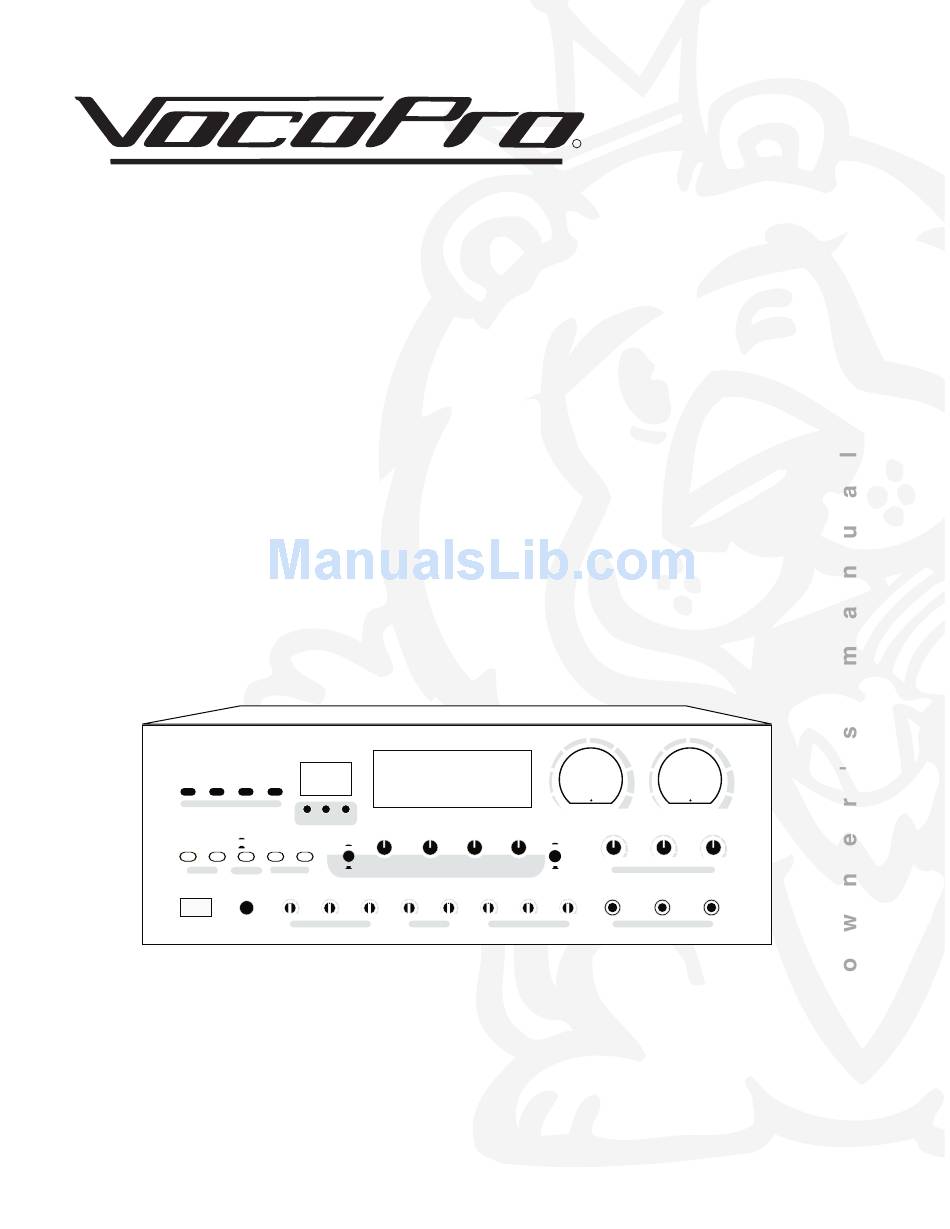

THE SINGER'S ULTIMATE CHOICE
FEATURES:
--180W + 180W maximum power output Mixing Amplifier
--Vocal Enhancer with High and Low Contour, Tune and Process controls for
optimal vocal reproduction and rich, vibrant sound
--13-step Digital Key Controller for transposing natural key of source music
--Vocal Cancel/Vocal Partner modes for removing or adding guide vocals from
Multiplex Karaoke media
--Digital Echo with Repeat and Delay controls to add depth and space to vocals
--Three Microphone Inputs with individual Volume controls
--Full-function remote control for ease of operation
--Master Music and Microphone Volume controls
--LED Gain setting to toggle display intensity
--Loudness boost for instant audio gain
--3 RCA style Video Inputs and 3 Video Outputs
--Dedicated Audio Ins for CD, CDG, LD and DVD
--Dedicated Wireless Mic Input and Mic Insert
--Mic Output with switchable Echo
--Connects up to 4 speakers with A/B switch between pairs
Digital Karaoke Amplifier With Vocal Enhancer
DVD
LD
CDG
CD
Input Selector
High
Vocal
A
B
Flat
Partner
Speakers
LED Gain
Multipex
Power
Remote
Delay
Sensor
Digital Karaoke Amplifier/Mixer With Vocal Enhancer
DA-8808VE
Digital Key Display
Digital Key Control
High
Process
Tune
Vocal
On
Cancel
0
10
Top
Bottom
1kHz
Off
Vocal Enhancer
Repeat
Echo
Bass
Treble
Digital Echo
Mic Tone
DA-8808VE
R
TM
Mic Master Volume
Low
On
Loudness
8kHz
0
10
Bass
Treble
Off
Music Tone
Mic 1
Mic 2
Mic 3
Mic 1
Mic 2
Mic Volume
Mic Inputs
Music Volume
Balance
Mic 3
Advertisement
Table of Contents
Related Manuals for VocoPro DA-8808VE
Summary of Contents for VocoPro DA-8808VE
- Page 1 High Vocal Vocal Flat Partner Cancel Speakers LED Gain Multipex Power Remote Delay Repeat Sensor Digital Echo DA-8808VE Digital Karaoke Amplifier/Mixer With Vocal Enhancer DA-8808VE Mic Master Volume High Process Tune Loudness Bottom 1kHz 8kHz Bass Vocal Enhancer Echo Bass...
-
Page 2: Table Of Contents
DA-8808VE Table of contents Introduction Safety instructions Welcome Listening for a lifetime Before getting started Getting Connected Connecting input source players Connecting TV’s/monitors Descriptions and Functions Front panel Rear panel Remote Control Advanced operations Specifications THE SINGER'S ULTIMATE CHOICE 9-11... -
Page 3: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. - Page 4 UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
-
Page 5: Welcome
And while you're there don't forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. -
Page 6: Listening For A Lifetime
Now it's time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. -
Page 7: Before Getting Started
DA-8808VE to ensure best performance. Unpacking the DA-2808VE Carefully remove the DA-8808VE from its carton. It is recommended that you store the original packaging materials in case you need to ship this equipment for any reason. -
Page 8: Getting Connected
Connecting input source players to the DA-8808VE The DA-8808VE has stereo paired RCA inputs labeled for RCA stereo audio ouptut from CD, CDG, LD and DVD players and three VIDEO inputs for corresponding video signals from CDG, LD and DVD players. -
Page 9: Connecting Tv's/Monitors
KJs and VJs to program a set. 1. Connect RCA style video cables from VIDEO OUTPUT jacks 1, 2 and 3 on the DA-8808VE to the VIDEO INPUT jack on your TV or other monitor. You may need to manually switch your TV to video mode, while some models automatically switch when a video signal is detected. -
Page 10: Front Panel
2. INPUT SELECTOR - These 4 buttons allow you to select between DVD, LD, CDG and standard CD player output to the DA-8808VE. This allows the DA-8808VE to differentiate between all the related source AUDIO INPUT options available on the back panel. - Page 11 In other words, while the Karaoke singer is performing, the vocals will never drop entirely out, keeping the action going. VOCAL ENHANCER Because the DA-8808VE allows you to “TUNE” the frequency and mix, or “PROCESS” of your microphone output, it is a more powerful EQ tool than standard Bass and Treble controls.
- Page 12 This control determines the Left to Right stereo BALANCE between speaker outputs. 18. REMOTE SENSOR - When operating the DA-8808VE with the Remote Control, direct the Remote towards this SENSOR within 23 feet. Maintain a line of sight between Remote and REMOTE SENSOR clear of obstacles to prevent signal deflection.
-
Page 13: Rear Panel
Rear panel descriptions and functions 1. RECORD OUT - These RCA output jacks are designed for connection to a recording device such as a cassette deck, CD burner or hard disc recorder. Output from the RECORD OUT jacks is line-level, so the MASTER VOLUME controls will not affect the output signal to your recording device. -
Page 14: Rear Panel
The 2 Loop Bars which are already installed in the EFFECT LOOP IN and OUT jacks of the DA-880VE allow the EFFECT LOOP to operate internally. However, if you wish to bypass the internal effects, these jacks enable you to connect external effects devices to the DA-8808VE in a stereo loop. -
Page 15: Remote Control
- Use the (front panel, #6) and the to lower the MUSIC VOLUME. You will see the controls on the DA-8808VE move as you make adjustments using the remote keys. 5. VOCAL CANCEL/VOCAL PARTNER - recorded in separate left and right stereo channels. When the VOCAL CANCEL (VOC/C) button on the remote is selected, the LED will illuminate and the lead vocal channel will be removed, leaving a duplicated instrumental track to left and right only. -
Page 16: Advanced Operations
Often, vocalists use external effects such as Echo, Reverb and Key Control. While enhancing vocals, these effects can also limit the signal’s sound quality. The DA-8808VE’s Vocal Enhancer can help “clean up” the vo- cal signal after effects have been applied. -
Page 17: Specifications
DA-8808VE Specifications MAXIMUM POWER OUTPUT-------------- 180W + 180W AUDIO MICROPHONE---------------------------------------------- 2.5MV/10K DVD/LD/CDG/CD------------------------------------- 150MV/50 VIDEO DVD/ LD / CDG --------------------------------------- 1V P-P/75 FREQUENCY RESPONSE DVD/ LD / CDG --------------------------------------- 20Hz–20kHz 3db TONE CONTROL (MUSIC / MIC) BASS------------------------------------------------------------- TREBLE -------------------------------------------------------- LOUDNESS CONTROL... - Page 18 THE SINGER'S ULTIMATE CHOICE VOCOPRO 2004 Version 1.0 www.vocopro.com...
