TRUE
manufacturing co
CONGRATULATIONS!
You have just purchased the finest commercial refrigerator
available. You can expect many years of trouble-free operation.
TABLE OF CONTENTS
Ownership and Uncrating
WARRANTY

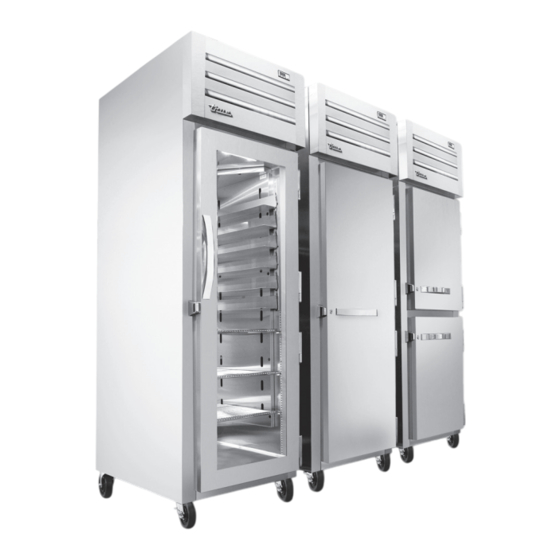

SPEC SERIES®: STR, STA & STG REFRIGERATOR/FREEZER
TRUE MANUFACTURING CO., INC.
2001 East Terra Lane • O'Fallon, Missouri 63366-4434
(636)-240-2400 • FAX (636)-272-2408 • INT'L FAX (636)272-7546 • (800)-325-6152
Parts Department (800)-424-TRUE • Parts Department FAX# (636)-272-9471
Web: www.truemfg.com
.,
.
inc
1
2
3
4
5
6
7
13
14
23
24
25
26
INSTALLATION MANUAL
SPEC SERIES: STR, STA & STG
INSTALLATION MANUAL
Advertisement
Table of Contents
Related Manuals for True Manufacturing Company STR Series
Summary of Contents for True Manufacturing Company STR Series
-
Page 1: Table Of Contents
TRUE INSTALLATION MANUAL manufacturing co SPEC SERIES: STR, STA & STG CONGRATULATIONS! You have just purchased the finest commercial refrigerator available. You can expect many years of trouble-free operation. TABLE OF CONTENTS SAFETY INFORMATION Safety Precautions Proper Disposal, Connecting Electricity, and Adapter Plugs INSTALLATION Ownership and Uncrating How to Connect to Electricity and Wire Gauge Chart... -
Page 2: Safety Information
TRUE truemfg SPEC SERIES®: STR, STA & STG NOTICE TO CUSTOMER Loss or spoilage of products in your refrigerator/ freezer is not covered by warranty. In addition to following recommended installation procedures you must run the refrigerator/freezer 24 hours prior to usage. SAFETY INFORMATION How to Maintain Your True Refrigerator to Receive the Most Efficient and Successful Operation. -
Page 3: Proper Disposal, Connecting Electricity, And Adapter Plugs
TRUE truemfg SPEC SERIES®: STR, STA & STG DANGER! WARNING! RISK OF CHILD HOW TO CONNECT ELECTRICITY DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR ENTRAPMENT REMOVE THE GROUND PRONG FROM THE POWER CORD. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED. PROPER DISPOSAL OF THE REFRIGERATOR The power cord from this appliance is equipped with a grounding Child entrapment and suffocation are not problems of the past. -
Page 4: Installation
TRUE truemfg SPEC SERIES®: STR, STA & STG INSTALLATION OWNERSHIP LOCK AND KEYS The following procedure is for locking and unlock unit: To ensure that your unit works properly from the first day, it must be installed properly. We highly recommend a trained refrigeration A. -
Page 5: How To Connect To Electricity And Wire Gauge Chart
TRUE truemfg SPEC SERIES®: STR, STA & STG HOW TO CONNECT ELECTRICITY WIRE GAUGE CHART Do not, under any circumstances, cut or remove the ground prong 115 Volt s Distance In Feet To Center of Load from the power cord. For personal safety, this appliance must be Amps 20 30 40 50 60 70 80 90 100 120 140 160 properly grounded. -
Page 6: Locating And Installation Of Legs Or Castors
TRUE truemfg SPEC SERIES®: STR, STA & STG LOCATING CLEARANCES Make sure unit is as close to the final location as possible. SIDES BACK Remove the shipping bolts located at the bottom of the STR, STA, STG 12" Open 0" 1"... -
Page 7: Leveling And Sealing Cabinet To The Floor
TRUE truemfg SPEC SERIES®: STR, STA & STG LEVELING SEALING CABINET TO FLOOR STEP 1 - Position Cabinet - Allow one inch between the wall and A. Set unit in its final location. Be sure there is adequate ventilation in your room. Under extreme heat conditions, (100°F+, rear of the refrigerator to assure proper ventilation. -
Page 8: Setup
TRUE truemfg SPEC SERIES®: STR, STA & STG SETUP STANDARD ACCESSORIES WARNING! Do not use pliers or any crimping tools PILASTER INSTALLATION & OPERATION when installing shelf clips. Altering shelf clips TRUE STR, STA, and STG cabinets are available with four different in any way can lead to shelving instability. - Page 9 TRUE truemfg SPEC SERIES®: STR, STA & STG CONFIGURATION (PILASTERS): Each TRUE Specification Series (STR, STA, and STG) is available with two pilaster configurations. Each configuration depends on the end user preference. Multiple door units can have two configurations for each section.
- Page 10 TRUE truemfg SPEC SERIES®: STR, STA & STG EXAMPLES OF POSSIBLE CONFIGURATIONS FOR TRAY SLIDES OR SHELVES Kit #2 Kit #1 Kit #3 Kit #1 Kit #3 Kit #2 Kit #3 Kit #2 Kit #4 18 1/8" 21 1/4" 460 mm 540 mm Angle Type Universal...
- Page 11 TRUE truemfg SPEC SERIES®: STR, STA & STG DOOR OPERATION DOOR CONFIGURATION: After installing, cabinet doors can be adjusted for alignment. The hinge on the door and hinge on the cabinet can be adjusted accordingly. STEP 1 To remove door open at a 90˚ angle from the cabinet and lift door up and out from the cabinet hinges carefully avoiding rainshield.
- Page 12 TRUE truemfg SPEC SERIES®: STR, STA & STG INSTALLING THE HEATING CONDENSATE PAN ON A SPEC SERIES DUAL TEMP MODEL STA/STG/STR1DT - PREVIOUS DESIGN TOOLS REQUIRED: • Cordless Drill • 1/4" Nut Driver Bit • Socket Set • 3/4" Socket STEP 1: Remove all the packing material from the cabinet.
- Page 13 TRUE truemfg SPEC SERIES®: STR, STA & STG INSTALLING THE HEATING CONDENSATE PAN ON A SPEC SERIES DUAL TEMP MODEL STA/STG/STR1DT - CURRENT DESIGN TOOLS REQUIRED: • Cordless Drill • 1/4" Nut Driver Bit • Socket Set • 3/4" Socket STEP 1: Remove all the packing material from the cabinet.
-
Page 14: Operation
TRUE truemfg SPEC SERIES®: STR, STA & STG OPERATION STARTUP C. Excessive tampering with the control could lead to service difficulties. Should it ever become necessary to replace A. The compressor is ready to operate. Plug in the cooler. temperature control, be sure it is ordered from your TRUE Temperature controls are factory-set to give refrigerators dealer or recommended service agent. -
Page 15: Electronic Temperature Controls Sequence Of Operation
TRUE truemfg SPEC SERIES®: STR, STA & STG ELECTRONIC TEMPERATURE CONTROLS LAE ELECTRONIC TEMPERATURE CONTROL GENERAL SEQUENCE OF OPERATION t1 = Thermostat t2 = Defrost t3 = Display t3 probe is not installed and / or activated in all applications when t3 is not installed and / or activated, the display probe is t1. - Page 16 TRUE truemfg SPEC SERIES®: STR, STA & STG HOW TO DIAGNOSE AN LAE ELECTRONIC CONTROL Indicator lights for Refrigeration/Heating Mode, Fan Operation, Defrost Mode. LAE Control LAE Control Icons Compressor Running Evaporator Fan Running Cabinet in Defrost Activation of 2nd Parameter Set Alarm Info / Set Point Manual Defrost /...
- Page 17 TRUE truemfg SPEC SERIES®: STR, STA & STG LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button HOW TO TURN OFF THE LAE ELECTRONIC CONTROL: May need to unlock control. WHY: Turning off the control will deactivate all electrical components. CAUTION: Turning off the control will not shut off power to the cabinet.
- Page 18 TRUE truemfg SPEC SERIES®: STR, STA & STG LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button CHANGING THE "SET POINT": May need to unlock control. WHY: The set point is the temperature at which the compressor will shut off. NOTE: The “set point”...
- Page 19 TRUE truemfg SPEC SERIES®: STR, STA & STG LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button INITIATE A MANUAL DEFROST: May need to unlock control. WHY: A one time additional defrost may be necessary to clear accumulated frost / ice from evaporator coil. HOW TO INITIATE A MANUAL DEFROST: The method to initiate a manual defrost is determined by the Defrost Mode Parameter “DTM”...
- Page 20 TRUE truemfg SPEC SERIES®: STR, STA & STG LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button CHANGING “DEFROST INTERVALS”: May need to unlock control. This can only be changed if defrost mode parameter “DFM” is set for “TIM”. WHY: The defrost interval is the time duration between defrost cycles.
- Page 21 TRUE truemfg SPEC SERIES®: STR, STA & STG LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button HOW TO CHANGE DISPLAY READOUT FROM FAHRENHEIT TO CELSIUS: May need to unlock control. This can NOT be changed with the LAE model AR2-28 version of the control.
- Page 22 TRUE truemfg SPEC SERIES®: STR, STA & STG LAE Control Info / Set Point Manual Defrost / Button Down Button Manual Activation Stand-By Up Button Button DISPLAYING TEMPERATURE PROBES, T1, T2, T3: WHY: To display temperature probe readings in different locations of the cabinet. HOW TO DISPLAY PROBE TEMPERATURES: STEP 1 - To display T1 temperature, press and release the info button .
- Page 23 TRUE truemfg SPEC SERIES®: STR, STA & STG LAE CONTROLLER PARAMETER SETTINGS FOR CELSIUS AR2-28 For LAE control model AR2-28 ONLY, ALL parameters with a formula (X-32) / 1.8 shown need to be converted for Celsius applications. (X-32) / 1.8 (X-32) / 1.8 (X-32) / 1.8 EXAMPLE:...
-
Page 24: Maintenance, Care, Cleaning
TRUE truemfg SPEC SERIES®: STR, STA & STG MAINTENANCE, CARE, CLEANING CLEANING THE CONDENSER COIL Thumbscrews located on cabinet ends When using electrical appliances, basic safety precautions should be followed, including the following. Disconnect power to unit. TOOLS REQUIRED • Phillips Screwdriver •... -
Page 25: Important Warranty Information
TRUE truemfg SPEC SERIES®: STR, STA & STG IMPORTANT WARRANTY INFORMATION THE CLEANING OF THE CONDENSER IS NOT COVERED BY THE WARRANTY! Condensers accumulate dirt and require cleaning every 30 days. Dirty condensers result in compressor failure, product loss, and lost sales... -
Page 26: Stainless Steel Equipment Care And Cleaning
TRUE truemfg SPEC SERIES®: STR, STA & STG STAINLESS STEEL EQUIPMENT CARE 8 STEPS THAT CAN HELP PREVENT RUST ON AND CLEANING STAINLESS STEEL: CAUTION: Do not use any steel wool, abrasive or chlorine based USING THE CORRECT CLEANING TOOLS products to clean stainless steel surfaces. -
Page 27: Warranty
TRUE truemfg SPEC SERIES®: STR, STA & STG WARRANTY INFORMATION ( U.S.A. & CANADA ONLY! ) THIS WARRANTY ONLY APPLIES TO UNITS SHIPPED FROM TRUE'S MANUFACTURING FACILITIES AFTER SEPTEMBER 1, 2015. THREE-YEAR PARTS & LABOR WARRANTY TRUE warrants to the original purchaser of every new TRUE refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instruction packet supplied with each TRUE unit.
