Black & Decker HLVA325JP/BP - Dustbuster AdvancedClean Pet Cordless Handheld Vacuum Manual

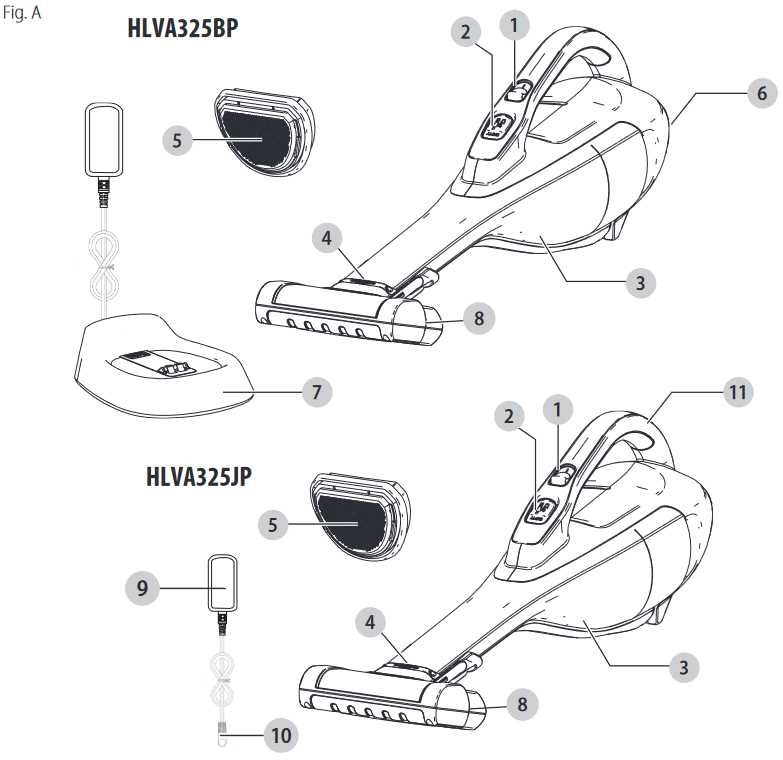

OVERVIEW

1. On/off switch
2. Dust bowl release button
3. Dust bowl
4. Extendable crevice tool
5. Filter
6. Charging terminals

SYMBOLS

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V	volts
A	amperes
Hz	hertz
W	watts
min	minutes
or AC	alternating current
or DC	direct current
no	no load speed
	Class I Construction (grounded)
	earthing terminal
	safety alert symbol
	Class II Construction (double insulated)
.../min or rpm	revolutions or reciprocation per minute
Wh	Watt Hours

ASSEMBLY

Do not attempt to modify or repair the appliance

Charging the battery (HLVA325JP)

For use only with the supplied charger.
From new, the rechargeable cells of the product need a minimum charge time of 16 hours to ensure full power.

• The switch must be in the off ("O") position, the product will not charge if it is in any other position.
• Figure B - Plug the jack plug of the charger into the charging socket of the tool. Plug the charger into any standard 120 Volt 60 Hz electrical outlet.

• While charging, the charger may get warm, this is perfectly normal and safe. It is safe to leave the appliance connected to the charger indefinitely. The charger automatically reduces power consumption when charging is complete.

Do not charge the battery at ambient temperatures below 39°F (4°C) or above 104°F (40°C).

Charging the battery (HLVA325BP)

For use only with the supplied charger.

• Before first use, the battery must be charged for at least 6 hours.

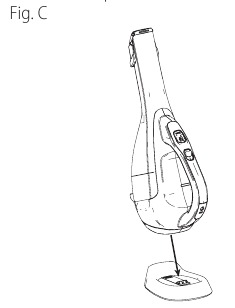

• Place the appliance on the charging base whenever it is not in use as shown in Figure C.

• Plug the charger into any standard 120 Volt 60 Hz electrical outlet.

Before charging, be sure to empty all contents and dry thoroughly if needed to avoid damage to your appliance.

• Make sure the appliance is switched off. The battery will not be charged when the on/off switch is in the on position.

NOTE: While charging, the charger may become warm. This is normal and does not indicate a problem. The appliance can be left connected to the charger indefinitely.
NOTE: Remove the pet head before charging.

Do not charge the battery at ambient temperatures below 39°F (4°C) or above 104°F (40°C).

USE

Switching on and off (Fig. D)

• Figure D - To start, slide the On/Off switch forward (i.e. "O"= Off, "I" = On).

• To stop, slide the switch back.
• Return the product to the charger immediately after use so that it will be ready and fully charged for the next use. Ensure that the product is fully engaged with the charger plug.

Cleaning and emptying the product

Projectile/Respiratory Hazard:
Never use the vac without its filter.
NOTE: The filter is re-usable, do not confuse it with a disposable dust bag, and do not throw it away when the product is emptied. We recommend that you replace the filter every 6–9 months depending on frequency of use.
There are two methods of cleaning the bowl, a quick empty method and a thorough clean method.

For a quick empty (Fig. E, F)

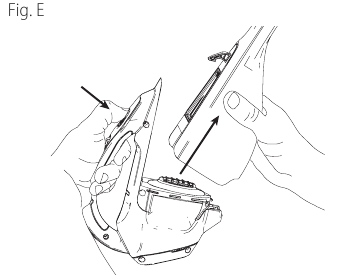

• Figure E - Press the dust bowl release button on the handle and remove the dust bowl.

• The top of the bowl is open when the bowl is removed so that dust can be easy dumped without touching the filter.

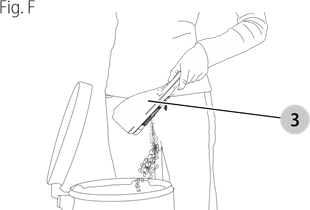

• Figure F - Empty the dust from the bowl

• To replace dust bowl, place it back onto the handle until it "clicks" firmly into position.

For a more thorough cleaning, remove bowl as described below.

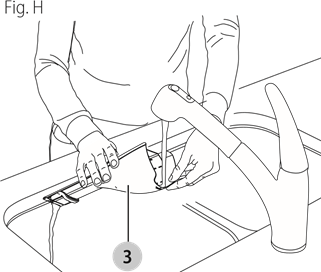

For a more thorough cleaning (Fig. G, H)

• Figure G - Press the dust bowl release button on the handle and remove the dust bowl.

• Remove filter from within the bowl.
• Shake or lightly brush any loose dust off filter.
• The dust bowl and filter can be washed in warm soapy water. Allow to dry before placing back into the vac.

• Place filter back into the bowl pressing firmly to ensure a secure fit.
• To replace dust bowl, place it back onto the handle until it "clicks" firmly into position.

Maximum dust collection will only be obtained with a clean filter and an empty dust bowl. If dust begins to fall back out of the product after it is switched off, this indicates that the bowl is full and requires emptying.

• Wash the filters regularly using warm, soapy water and ensure that it is completely dry before using again. The cleaner the filter is, the better the product will perform.
• It is very important that the filter is correctly in position before use.

Nozzle / Accessories (Fig. I–K)

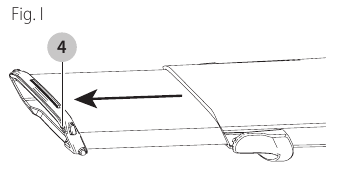

• Figure I - A crevice tool is built into the nozzle and can be extended as shown in Figure I by pulling the extension piece until it locks into position.

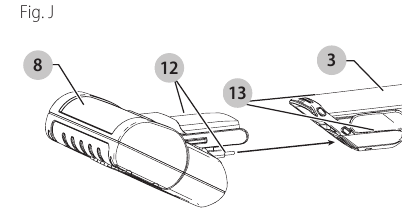

Attaching Pet Head (Fig. J)


The unit needs to be switched off when the pet head is attached or detached.
NOTE: Do not use directly on pets.
Slide the dust bowl opening into the opening of the motorized pet head , ensuring that the connectors engage with the recesses . An audible click will be heard.

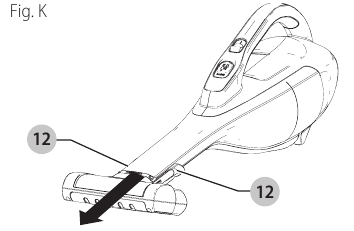

Removing Pet Head (Fig. K)


The unit needs to be switched off when the pet head is attached or detached.
Pull the motorized pet head release tabs outward.

• Pull the main unit from the pet head .

Scented filter
BEFORE FIRST USE - remove bag from the scented pre-filter. Reassemble per instructions above.
When the vacuum is turned on, the plastic scented filter will emit an aroma to freshen the air.

• Causes mild skin irritation
• Toxic to aquatic life
• Harmful to aquatic life with long lasting effects.
• Dispose of contents/ containers to an approved waste disposal plant.

NOTE: When the plastic scented filter no longer lets off the aroma, it can be an indication that the filter needs to be replaced. See below for information on replacement filters.

Replacing the filters
The filters should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filters are available from your BLACK+DECKER dealer.
Visit www.blackanddecker.com to locate dealers.

• Remove the old filters as described above.
• Fit the new filters as described above.

MAINTENANCE

Use only mild soap and damp cloth to clean the vac. Never let any liquid get inside the vac; never immerse any part of the vac into a liquid.

Make sure the vacuum is completely dry before using it.

To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (other than those listed in this manual) should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts.

TROUBLESHOOTING

If the product does not work, check the following:

• The charger was correctly plugged in for recharge. (It feels slightly warm to the touch.)
• The charger cord is not damaged and is correctly attached.
• The charger is plugged into a working electrical outlet.
• The switch is in the "OFF" position when charging. For assistance with your product, visit our websitewww.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1–800–544–6986.

ACCESSORIES

Recommended accessories for use with your appliance are available from your local dealer or authorized service center.
If you need assistance regarding accessories, please call: 1-800-544-6986.

The use of any accessory not recommended for use with this appliance could be hazardous.

SERVICE INFORMATION

All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliances, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Some household dust contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm such as asbestos and lead in lead based paint.

To reduce the risk of fire, electrical shock or injury:

• Shock Hazard. To protect against risk of electrical shock, do not put charging base in water or other liquid.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filters in place.
• Do not charge the unit outdoors.
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
• This appliance is intended for household use only and not for commercial or industrial use.
• Shock Hazard. To protect against risk of electrical shock, do not put unit or charging base in water or other liquid.
• Do not allow the cord to hang over the edge of a table or counter or touch hot surfaces. The unit should be placed or mounted away from sinks and hot surfaces.
• Plug the charger directly into an electrical outlet.
• Use the charger only in a standard electrical outlet (120V/60Hz).
• Unplug the charger from outlet before any routine cleaning or maintenance.
• Do not look into the air vents when the unit is switched on, as sometimes there is a possibility of small debris being discharged from the air vents, especially after cleaning / replacement of the filters as debris inside the unit can be disturbed.
• Leaks from battery cells can occur under extreme conditions. If the liquid, which is a 20-35% solution of potassium hydroxide, gets on the skin
  • wash quickly with soap and water or
  • neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

ADDITIONAL SAFETY WARNINGS

1. Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
3. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
4. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause explosion.
5. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

Only for use with S003AQU1500015, SSC-150015US, S010QU1400040, SSC-140040US chargers.
SAVE THESE INSTRUCTIONS

BlackandDecker.com
1-800-544-6986
