3.3.3.3 JTAG Connectors
The TSW14J59EVM includes one industry-standard JTAG connector, P2, that connects to the JTAG port of the
FPGA. The FPGA can be programmed using this connector or through the USB 3.0 interface. The USB 3.0
interface allows the FPGA to be programmed using the HSDC Pro software GUI. Every time the TSW14J59EVM
is powered-down, the FPGA configuration is removed. The user must program the FPGA through the GUI after
every time the board is powered-up. The FPGA can also be configured using the two on-board flash devices, U3
and U6.
The TSW14J59EVM also has a surface mount Digilent JTAG programmer, U5, which can be used to program
the FPGA as well.
FLASH DEVICES The TSW14J59EVM includes two serial flash programming EEPROMS that can load FPGA
firmware. Jumper J35 determines which EEPROM configures the FPGA when switch SW2 is pressed. If the
EEPROMs are programmed, then, after power up, pressing SW2 loads the FPGA with the content of flash
device U3 if J35 has a shunt between pins 1-2. The FPGA is programmed with the content of U6 if the shunt is
between pins 2-3 or removed.
Program the Memory Device
To program U3 and U6 with new files, use the following steps:
Install Vivado ® version 2018.3 or later (Lab Edition)
1. Connect the TSW14J59 Capture card to the PC through a JTAG Xilinx Programmer cable. This is the JTAG
connect P2.
2. Install a shunt on JP3.
3. Open the Vivado Installation:
• Double click Open Hardware Manager.
4. In the Hardware Manager, left click on Open target and select Auto Connect.
5. The last step lists all the FPGAs connected to the PC through JTAG Programmer cables.
6. Right click on "xcku5p_0" -> click on Add Configuration Memory Device.
7. In the pop-up window, search for the "mt25qu256-spi-x1_x2_x4" component. Click the OK button.
SLWU095 – APRIL 2023
Submit Document Feedback
Note

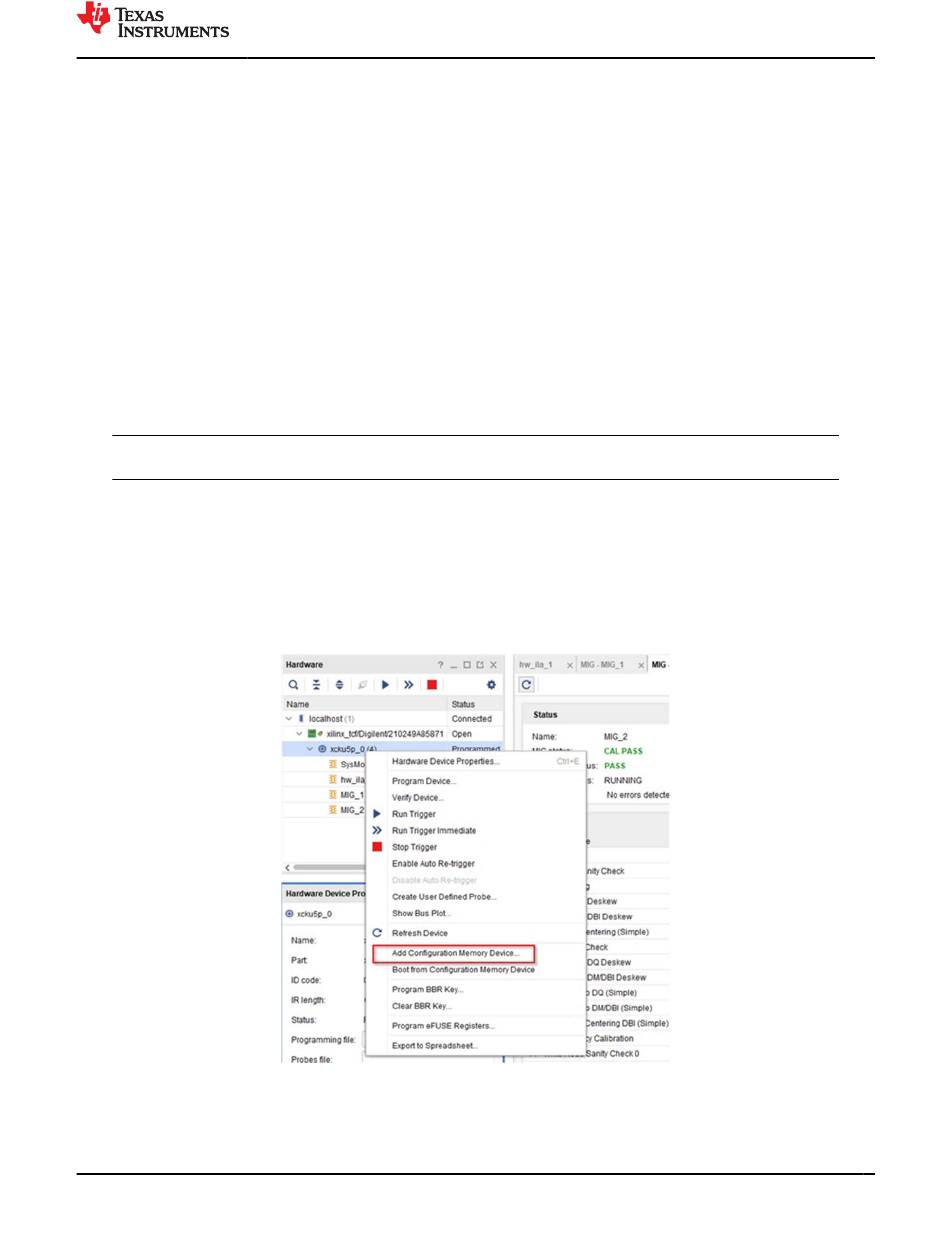

Figure 3-1. Add Configuration Memory Device
