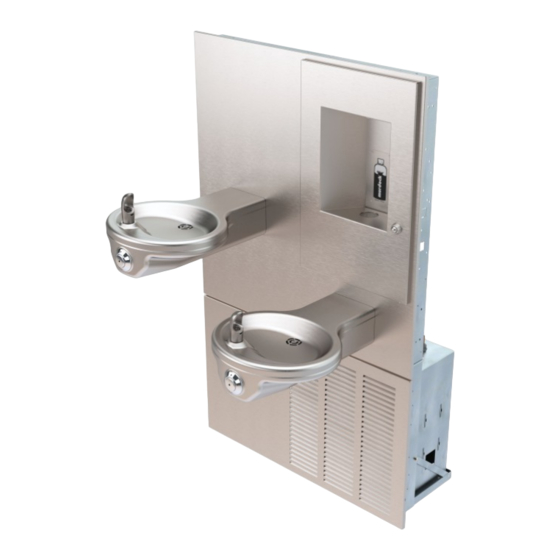

Barrier Free, Bi-Level, Vandal Resistant, Bi-Level, Wall Mounted Chilled Drinking Fountain
with Semi-Recessed Sensor Operated and Pushbutton
A132408F-VR-BF3
A132408F-VR-BF3 / A132408S-VR-BF3 / A132408F-VR-BF4 / A132408S-VR-BF4 &
A132408F-VR-BF3-RBL / A132408S-VR-BF3-RBL / A132408F-VR-BF4-RBL / A132408S-VR-BF4-RBL
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
7021-019-001
Date: 03/17/2023 D
CONTEMPORARY WATER COOLERS
DRINKING FOUNTAINS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
A132.8-VR-BF3 and A132.8-VR-BF4 Series
Operated Bottle Filler and 32" Trim Panel
1.800.591.9360
Technical Assistance E-Mail: fieldservice@acorneng.com
NSF/ANSI/CAN 61
A132408F-VR-BF4
(220V Compressor Only)
Federal
Public Law
Member of
111-380
(No Lead)
ANSI/ASHRAE 18
15125 Proctor Ave,
City of Industry, CA
91746 U.S.A.
Phone 800-453-7465
626-333-2543
www.murdockmfg.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Murdock A132 8-VR-BF3 Series
Summary of Contents for Murdock A132 8-VR-BF3 Series
- Page 1 2. Please read this entire booklet before beginning the installation. 3. Check your installation for compliance with plumbing, electrical and other applicable codes. Murdock assumes no responsibility for use of void or suspended data. © Copyright Murdock, City of Industry, CA Member of Morris Group International.
- Page 2 3 inches. Provide clear floor space as required. Adjust vertical dimensions as required to comply with federal, state, and local codes. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
-
Page 3: Dimensional Drawing
3 inches. Provide clear floor space as required. Adjust vertical dimensions as required to comply with federal, state, and local codes. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •... - Page 4 3 inches. Provide clear floor space as required. Adjust vertical dimensions as required to comply with federal, state, and local codes. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
-
Page 5: Installation Instructions
OF CHILLER MOUNTING FRAME 2 ALIGN HOLES IN CLIPS WITH HOLES 6 IN FRAME AND USE SHEET METAL SCREWS 4 PROVIDED. SEE ANCHORING CLIP DETAIL. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com... -
Page 6: Prior To Installation
Warranty is void if the unit is allowed to operate outside the range of 20 PSIG (138 kPa) to 105 PSIG (724 kPa). Consult with UPC and local codes for maximum allowable water pressures. 11. Due to cold waste water, Murdock Mfg. recommends that waste piping supplied by installer be insulated appropriately to prevent excessive condensation. - Page 7 When the container is almost filled release the pushbutton and lower the container below the until the water stops flowing. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 8 " O.D. Copper Outlet Electrical Knockout Thermal Adjustment Chiller Assembly Detail MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7021-019-001 Date: 03/17/2023 D A132.8-VR-BF...
- Page 9 WATER TUBING DIAGRAM 2169-000-000 Tubing, 1/4" O.D. LLDPE, (Blue) 7012-055-000 Foam Pipe Insulation MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7021-019-001 Date: 03/17/2023 D A132.8-VR-BF...
-
Page 10: Filter Cartridge Replacement
Panel Assembly Water Inlet Water Inlet Valve Open Valve Closed Replacement Cartridge MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7021-019-001 Date: 03/17/2023 D A132.8-VR-BF... -
Page 11: Electrical Installation
Red Wire Blue Wire Junction Box Provided Sensor 9-12VDC Solenoid Valve MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7021-019-001 Date: 03/17/2023 D A132.8-VR-BF... - Page 12 ILLUMINATED LCD DISPLAY MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 13 • The “REPLACE FILTER” will no longer appear on the display • Test by actuating the bottle filler, alert will not appear. Reset/Mode Button MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 14 (Black Cables) Sensor Connection Transformer Sensor Sensor Connection (Black & Red Cables) MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com 7021-019-001 Date: 03/17/2023 D A132.8-VR-BF...
- Page 15 PE tubing to remove from the push-in fitting. COLLET MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 16 Check flow adjustment. See start up note #3. g. Flow control in solenoid valve outlet elbow clogged remove & clean. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com...
- Page 17 Scotch-Brite™, are recommended. Apply stainless steel cleaner/ polish to the synthetic abrasive pads and carefully rub the panel with the grain. DO NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will void the Murdock warranty.
- Page 18 7003-093-001 Flow Restrictor - Low-Flow Bubbler Only 7003-195-000 Spring, Overtravel Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 19 I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S A132.8-VR-BF4 SERIES BREAKDOWN Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
- Page 20 0331-003-000 #8 Helical Spring Lock Washer Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 21 I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S A132.8-VR-BF3 SERIES BREAKDOWN Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
-
Page 22: Part Number Description
1895-450-000 1/8" O.D. Nylon Compression Nut Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
