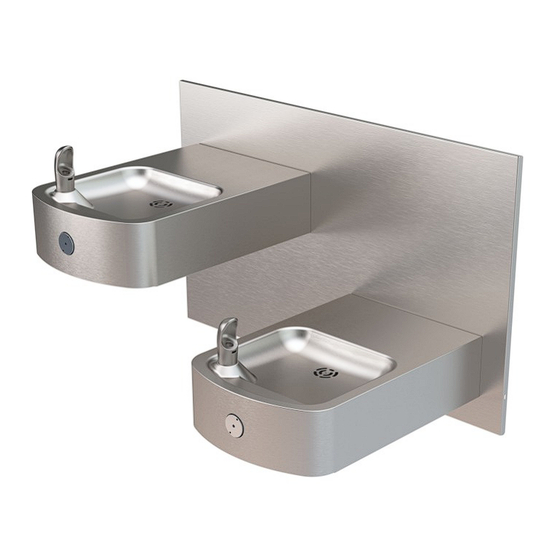

A152-FG Series Barrier Free, Bi-Level, 14-Gauge Wall Mounted
A152400F-FG / A152400S-FG & A152400F-FG-RBL / A152400S-FG-RBL
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
For current Warranty click hyperlink
®
Murdock assumes no responsibility for use of void
or suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International .
Please visit www.murdockmfg.com for most
current specifications.
7021-038-001
Date: 03/29/2024 A
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
Drinking Fountain and 32" Trim Panel
A152400S-FG
1.800.743.8259
Technical Assistance E-Mail: Fieldservice@acorneng.com
Product Warranty
®
NSF/ANSI/CAN 61
DRINKING FOUNTAINS
or visit: www.murdockmfg.com/terms-and-warranty
Federal
Public Law
111-380
(No Lead)
15125 Proctor Ave,
Member of
City of Industry, CA
Phone 800-453-7465
www.murdockmfg.com
91746 U.S.A.
626-333-2543
Advertisement
Related Manuals for Murdock A152-FG Series
Summary of Contents for Murdock A152-FG Series
- Page 1 I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S A152-FG Series Barrier Free, Bi-Level, 14-Gauge Wall Mounted Drinking Fountain and 32”...
- Page 2 3 inches. Provide clear floor space as required. Adjust vertical dimensions indicated with (*) as required to comply with federal, state, and local codes. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 3 COMPLY WITH FEDERAL, STATE, & LOCAL CODES. 3. STANDARD BI-LEVEL ROUGH-INS SHOWN. FOR -RBL REVERSE BI-LEVEL, MOUNTING FRAME ROUGH-INS OPPOSITE. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
- Page 4 COMPLY WITH FEDERAL, STATE, & LOCAL CODES. 3. STANDARD BI-LEVEL ROUGH-INS SHOWN. FOR -RBL REVERSE BI-LEVEL, MOUNTING FRAME ROUGH-INS OPPOSITE. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
-
Page 5: Flow Adjustment
WITH SCREWS 6 . OVER STUDS 10 FROM MOUNTING PLATE 1 & SECURE WITH NUTS AND WASHERS 11 . MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com... -
Page 6: Prior To Installation
See page 5 for details. 4. Recheck all water connections with water flowing through system. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com... - Page 7 While holding the collet in, pull on the PE tubing to remove from the push-in fitting. COLLET MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7021-038-001...
-
Page 8: Troubleshooting
Replace valve cartridge. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com... - Page 9 Stainless steel should be kept clean at all times. If a coating of stainless steel cleaner/polish is maintained, stainless steel surfaces will retain their new, clean, polished appearance indefinitely. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 10 0152-010-000 #10-32 x 1" Hex Flat Head C/R Screw 7003-093-001 Flow Restricto - Low Flow Bubbler Only Repairs must be made with Murdock Manufacturing parts only. Please order through your local representative or distributor. The phone number to locate your local representative is 1.800.591.9360.
