Summary of Contents for Transcend Micro

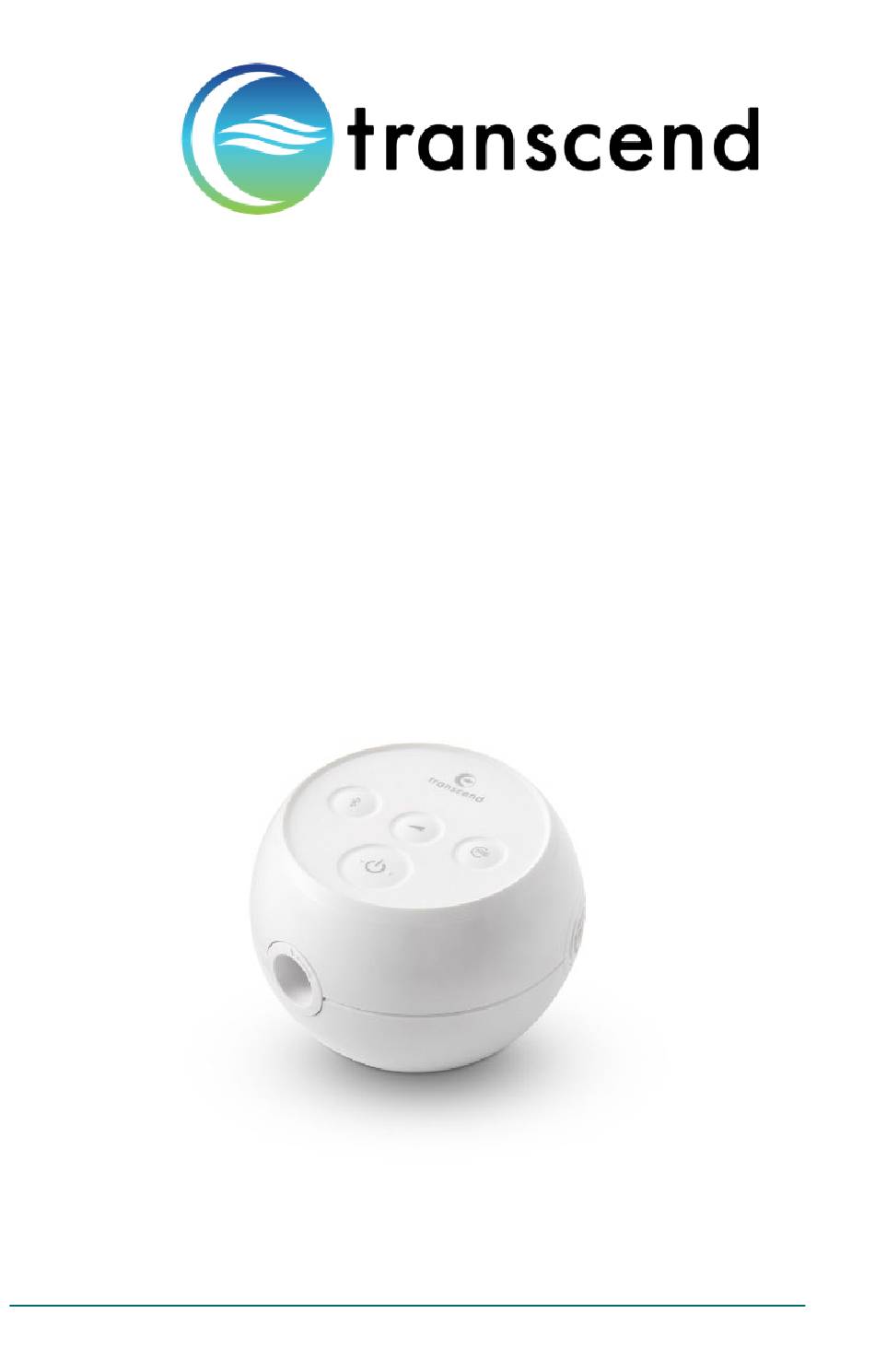

  • Page 1 ® Micro Quick Guide...

  • Page 2: Using Your Transcend Micro With The Mysleepdash App

    MySleepDash app Transcend MySleepDash is a mobile device app that will guide you through the setup process for your new Transcend Micro device. It includes setup videos, helpful information and can track your sleep health progress. The app is not...

  • Page 3: Table Of Contents

    Table of Contents Using your Transcend Micro with the MySleepDash app ... 1 Indications for Use ............3 Contraindications ............3 Adverse Effects .............. 4 Your Transcend Micro ............ 5 Setting Up Your Transcend Micro ........6 AIRFLEX™ HOSE CONNECTION ......6 CONNECTING THE LAPTOP STYLE POWER SUPPLY 7 Connecting Comfort Features .........

  • Page 4: Indications For Use

    Welcome The Transcend Micro™ is Transcend’s smallest and lightest Continuous Positive Airway Pressure (CPAP) device. CAUTION Federal law in the US restricts this device to the sale by, or on the order of, a physician. Indications for Use The Transcend Micro provides positive airway pressure for treatment of obstructive sleep apnea (OSA) in adults weighing over 66 pounds (30 kg).

  • Page 5: Adverse Effects

    Adverse Effects You should report unusual chest pain, severe headache, or increased breathlessness to your prescribing physician. An acute upper respiratory tract infection may require temporary discontinuation of treatment. The following side effects have been reported by users of airway delivery devices during CPAP therapy. •...

  • Page 6: Your Transcend Micro

    Your Transcend Micro Power button Bluetooth button Pressure ramp button Dry cycle button Air filter cover Air outlet USB-C data port Power supply inlet...

  • Page 7: Setting Up Your Transcend Micro

    Setting Up Your Transcend Micro AIRFLEX™ HOSE CONNECTION a. Transcend Micro device b. Air outlet c. Air hose coupler d. AirFlex hose Connect the hose firmly to the air outlet by inserting the hose coupler into the air outlet on the device.

  • Page 8: Connecting The Laptop Style Power Supply

    CONNECTING THE LAPTOP STYLE POWER SUPPLY Power Cord Power Outlet Transcend Micro AC Adaptor Connect the power cord to the power inlet at the bottom of the device. Connect one end of the power cord into the AC adapter and the other end into the power outlet.

  • Page 9: Connecting Comfort Features

    HME (Heat/Moisture Exchanger). AIRMIST™ HME ADAPTER ASSEMBLY The Transcend AirMist HME assembly is sold separately, and it is not included with the Transcend Micro system. a. Long air hose b. HME adapter bottom c.

  • Page 10: Navigating The Device Buttons

    Securely attach the HME adapter bottom to your hose. Securely attach the HME adapter top to your mask. Navigating the Device Buttons CONTROL PANEL a. Bluetooth b. Pressure ramp c. Dry cycle d. Power POWER BUTTON AND LED INDICATORS Standby Mode When the device is plugged in, it will be in Standby Mode.

  • Page 11: Bluetooth Button And Led Indicators

    Therapy Mode When the device is powered and in Therapy Mode: • The LED is off. • Pressing the power button transitions the device to Standby Mode. The LED glows green. The blower stops. BLUETOOTH BUTTON AND LED INDICATORS Standby Mode Pressing the button toggles Bluetooth communication between enabled/disabled.

  • Page 12: Ramp Button And Led Indicators

    The LED is off if Ramp is not configured, or Auto Ramp is disabled. • Pressing the button when Ramp is not configured has no effect. See Transcend desktop software user guide to configure https://mytranscend.com/customer- care/user-guides/ • Pressing the button when Ramp is configured toggles Auto Ramp between enabled and disabled.

  • Page 13: Connecting Your Transcend Micro And Smart Device

    Once selections are complete on the Create Account page, tap submit. After creating your account, you will be required to login using the email and password you just set up. The next step will be to connect your Transcend Micro device to the MySleepDash app.

  • Page 14: Connecting Your Device

    Micro device and scan using your smart device. • Click add to complete adding your device. • The blue light on the Transcend Micro will turn green. • Your device is now connected. Starting Therapy Connect the Transcend Micro to a power source and allow it to enter Standby Mode.

  • Page 15: Gentlerise Ramp Function

    NOTE: Once installed and connected, you may use the MySleepDash app to change ramp settings on compatible Micro devices. Alternatively, to adjust ramp starting pressure or duration see the Transcend Micro software manual available on the Transcend website (mytranscend.com).

  • Page 16: Ending Therapy

    Once installed and connected, you may use the MySleepDash app to change air relief settings on compatible Micro devices. Alternatively, see the Transcend Micro software manual available on the Transcend website (mytranscend.com) and follow the steps to change settings.

  • Page 17: Caring For Your Device

    Do not perform any cleaning or maintenance tasks while the device is in operation. Damage caused by improperly caring for your device may not be covered by Transcend’s limited warranty. •...

  • Page 18: Cleaning The Exterior

    Rinse the cloth in clear water to remove residual cleaning solution. Wring excess water from the cloth and wipe the Transcend Micro using a gentle front to back wiping motion to remove any detergent solution remaining on the surface. Wipe the device with a dry, lint-free cotton cloth until...

  • Page 19: Disconnecting Comfort Features

    Disconnecting Comfort Features WHISPERSOFT MUFFLER ASSEMBLY Short air hose WhisperSoft muffler Long air hose Remove the short air hose from the device, by twisting the connector left or counterclockwise and pulling the hose away from the device. Disconnect the other end of the short air hose from the muffler.
  • Page 20 AirMist HME Adapter Follow these steps to clean the accessories. Fully immerse the accessory in the cleaning solution. DO NOT immerse the Transcend Micro device. NOTE: The HME Cartridge must be removed prior to cleaning the HME Adapter. The HME cartridge cannot be cleaned.

  • Page 21: Transcend Batteries

    Transcend batteries. Replacing Transcend Micro PureFresh™ Air Filter The Transcend Micro PureFresh air filter should be replaced at a minimum every three months. Depress the tab on the right side of the filter cover to remove it from the device Remove the filter and discard.
  • Page 22 Troubleshooting PROBLEM AND POSSIBLE RECOMMENDED SOLUTION CAUSE Discomfort due to a feeling of high pressure Device pressure may be set too Breathe slowly through your nose high with your mouth closed. Use the ramp pressure, if available. If the pressure remains problematic, contact your homecare provider.
  • Page 23 Power source is not properly Check all power connections and connected verify if the LED light on the power supply is illuminated. AC power may not be active. Use another power outlet. Confirm outlet is not controlled by a wall switch. No airflow from the device Contact the homecare provider’s technical service department.
  • Page 24 Replace any external hardware Breathing circuit not assembled exceeding recommended service correctly life. If problems persist, contact your homecare provider. All LEDs flash four times then pause, then flash again Device detects an operating error Hold down the power button until all LEDs stop flashing.

  • Page 25: Precautions For Use

    Precautions for Use This section describes the warnings and cautions associated with use of the Transcend Micro. The following guidelines apply to this document: Warning Indicates the possibility of serious injury or death to yourself or others.

  • Page 26: Warnings

    • This device is not intended for life support. • The Transcend Micro must be set up and adjusted by a trained provider before being used for therapy ramp and pressure. • The air temperature produced by this device can be as much as 10ºF higher than the temperature of the room.
  • Page 27 • To prevent disconnection of the tubing during use only Transcend supplied hoses or hoses in compliance with ISO 5367 or ISO 80601-2-74 should be used. • Strangulation hazard from power cord and air tube.

  • Page 28: Cautions

    Portable RF (radio frequency) communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Micro device. Cautions • Federal law in the US restricts this device to the sale by, or on the order of, a physician.
  • Page 29 Transcend recommends replacing the hose after every three months of use. • To protect the environment, some parts and accessories of the Transcend Micro, including optional batteries, must be disposed of in accordance with local regulations. • The equipment must not be covered or positioned in such a way that adversely affects the performance of the equipment, as it may also create a safety issue.
  • Page 30 Symbols Ramp functionality Drying Mode Power Caution Protected against finger-sized objects IP22 and against dripping water when tilted 15 degrees from specified orientation Type BF Applied Part Upper and lower temperature limits Separate collection for electrical and electronic equipment per EC Directive 2002/96/EC.
  • Page 31 Date of Manufacture Manufacturer Fragile, handle with care Keep dry Serial Number Bluetooth Regulatory Compliance Mark – indicates compliance with Australian Radiocommunications Notice 2014 and Radiocommunications Act 1992 Wireless. FCC part 15 compliant. RTCA/DO-160 Section 21 Category M compliant & FAA compliant. Shipping and storage temperature limitation.

  • Page 32: Environmental Information

    If information on these disposal systems is needed, please contact your local waste administration. If you require information on the collection or disposal of your device please contact Transcend, your homecare provider, or go to MyTranscend.com/environment. California Perchlorate Information: The coin-cell battery within this device may contain Perchlorate Material –...
  • Page 33 Notices Notice The information contained in this document is subject to change without notice. Trademark The moon logo, Transcend Micro, WhisperSoft, AirFlex, PowerAway, AirMist, MySleepDash, and Transcend are trademarks and/or registered trademarks of Transcend Inc. Copyright Copyright 2023 Transcend Inc. All Rights ©...
