Page 6: Introduction
A DC power jack and a USB port are also incorporated into the Transcend EZEX. Indications for use The Transcend EZEX provides positive airway pressure for treatment of obstructive sleep apnea (OSA) in adults weighing over 66 pounds (30 kg). The device is intended for home and hospital/institutional use. -
Page 7: Warnings
Page 7 Transcend EZEX User Manual Warnings Do not allow water to enter this device. Transcend EZEX should not be exposed to environmental conditions where the system may get wet. This device is not intended for life support. -
Page 8: Cautions
See Appendix: Part Numbers. Discontinue use of the Transcend EZEX and contact your physician if respiratory or skin irritations occur. Do not introduce objects into the Transcend EZEX air inlet or air outlet. ... -
Page 9: Symbols
Page 9 Transcend EZEX User Manual Symbols Attention: Consult accompanying documents Type BF Applied Part UL Seal of Approval demonstrating quality, safety and professional manufacturing of medical product Upper and lower temperature limits Separate collection for electrical and electronic equipment per EC Directive 2002/96/EC. -
Page 10: Components Of The Transcend Ezex
Transcend EZEX User Manual Components of the Transcend EZEX Begin by unpacking all items from the Transcend EZEX travel bag and inspect them to ensure they were not damaged during shipment. Report any missing or damaged items to the home healthcare provider that provided the Transcend EZEX to you. -
Page 11: What's Not Included (All Sold Separately)
Transcend Mobile Power Adaptor Transcend P Battery Transcend P Battery Transcend Base Station Transcend LCD Programming Base Station Transcend Portable Solar Battery Charger (to be used as an alternative charging source for Transcend P and P batteries) -
Page 12: Description Of Transcend Ezex Components

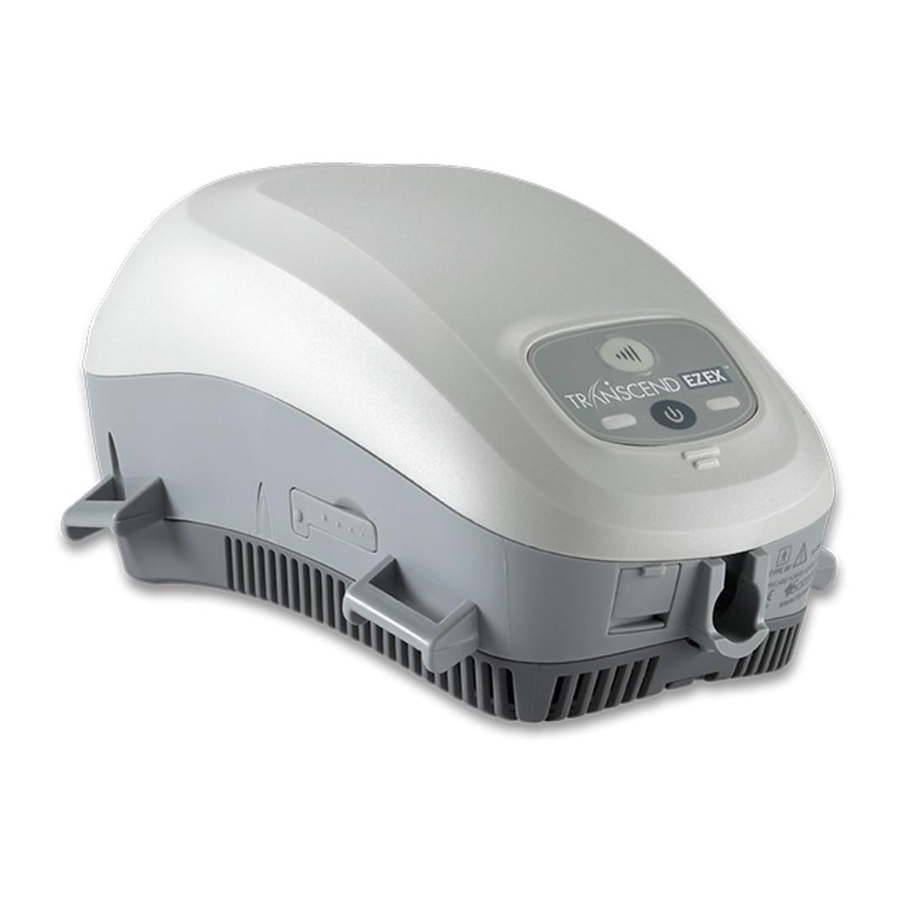

Description of Transcend EZEX components Transcend EZEX Device The Transcend EZEX comes ready to generate and regulate continuous positive airway pressure therapy for delivery to the interface. An external power source connects to the Transcend EZEX to supply power to the device. -
Page 13: Power Connection Jack And Usb Port
Page 13 Transcend d EZEX User r Manual Power co onnection n jack an nd USB p port The power jack accep pts the barr rel plug of the output cable from m a DC pow wer source operate the e Transcen d EZEX. -
Page 14: Air Inlet Filter
Page 14 Transcend d EZEX User r Manual Air Inlet Filter During ther rapy opera tion ambie ent air is drawn into the Transc cend EZEX through an Air Inlet Fil ter. The Fi lter Media should be cleaned at... -
Page 15: Assembling The Transcend Ezex
Transcend EZEX User Manual Assembling the Transcend EZEX The mask interface connects to the Transcend EZEX via the air supply tube. One end of the air supply tube attaches to the outlet port of the Transcend EZEX via the Universal Hose Adaptor. -
Page 16: Powering The Transcend Ezex
Page 16 Transcend EZEX User Manual Powering the Transcend EZEX There are three choices for powering your Transcend EZEX device: Using the Multi-plug Universal Power Supply (PSA2) Using the optional Transcend (P or P ) Battery Using the optional Transcend Mobile Power Adapter (MPA1) -
Page 17: Using The Multi-Plug Universal Power Supply
The Transcend EZEX power-up LED flash sequence should initiate. Once the power- up LED flash sequence is complete the LED lights will turn off. This sequence indicates that power is being supplied to the Transcend EZEX and that it has successfully entered Standby Mode. -
Page 18: Using The Transcend P Or P Battery
P battery outlet cable to the Transcend EZEX by inserting the barrel connector into the power jack on the Transcend EZEX. Be sure the power-up LED flash sequence completes indicating that power is being supplied to the Transcend EZEX and that it has successfully entered Standby Mode. -
Page 19: Explanation Of The Optional Transcend P 4 And P 8 Battery Led Lights
Note Charge the battery fully before the first use. Do not connect the Battery to Transcend EZEX during the initial charge. Note To maintain maximum battery performance Somnetics recommends using the Battery in-line with the AC Power Supply or Mobile Power Adaptor during therapy... - Page 20 Page 20 Transcend EZEX User Manual Connect the power outlet barrel connector from the Universal Power Supply or Mobile Power Adaptor to the power connection jack on the P or P Battery. Connect the Universal Power Supply or Mobile Power Adaptor to a power source.
-
Page 21: Using The Transcend Mobile Power Adaptor (Mpa1)
Make certain that the cables are securely connected to the Mobile Power Adaptor and to the power jack on the back of the Transcend EZEX. It may be necessary to unplug the cables and reconnect to ensure a good connection. -
Page 22: Using The Transcend Ezex
The Transcend EZEX operational status is displayed by LED illumination states. When a power source is connected to the device the Transcend EZEX power-up LED flash sequence should initiate. Once the power-up LED flash sequence is complete the LED lights will turn off. -
Page 23: Starting Therapy
Be sure your user interface is fit firmly in place before initiating therapy. To initiate therapy press the Power button. Pressing the Power button when Transcend EZEX is in Standby Mode will initiate On Mode. Air flow will begin as the blower delivers or ramps to prescribed therapy pressure. -
Page 24: Using The Ezex Function
This feature is designed to provide additional comfort to the patient by reducing the amount of resistance they experience as they exhale. EZEX settings are adjusted by clinicians only. There are four EZEX settings: OFF, 1, 2 or 3; progressively increasing the amount of pressure relief from none to maximum. Ending therapy... -
Page 25: Replacing The Filter Media
Transcend EZEX User Manual Replacing the Filter Media The Transcend EZEX Filter Media should be replaced every six months at minimum. Remove the Filter Frame by gently pressing the button release at the back of the Filter Frame towards the front of the device. Then pull the filter frame away from the device. -
Page 26: Caring For Your Transcend Ezex And Components
Submerge a lint-free cotton cloth into the detergent solution. Wring excess water from the cloth then wipe the exterior of the Transcend EZEX device for approximately 20 seconds using a gentle, back and forth wiping motion from the front to back of the device. -
Page 27: Cleaning Of Accessories
Page 27 Transcend EZEX User Manual Exterior cleaning of the device should be performed as follows: Product Periodic Cleaning Cycle Product Service Life Transcend EZEX 2x/Month 5-Year Cleaning of Accessories The following accessories should be cleaned with a 5% solution of mild liquid detergent in distilled water (1.6 fl oz liquid cleaning detergent per quart of distilled water). -
Page 28: Cleaning The Filter Media And Filter Frame
Page 28 Transcend EZEX User Manual Rinse the air supply tube in distilled water by fully immersing. Lift, then lower, the ends of the tube while the tube is filled with water. Repeat this motion for approximately 10 seconds to remove cleaning agent residue. -
Page 29: Cleaning For Multiple Users
Follow instructions for cleaning the exterior of the device as noted in Cleaning the Exterior (above). Apply a new bacterial/viral filter to the Universal Hose Adaptor of the Transcend EZEX and attach a new air supply tube before providing the device to a new user. -
Page 30: Fault And Alert Codes
Fault and Alert Codes Fault Codes When the Transcend EZEX encounters a fault the processor resets and enters a fault loop. In this loop, the device repeatedly flashes the yellow fault LED to indicate the specific fault encountered. If the device is reset or power cycled while in fault mode, it re-enters fault mode upon power up. -
Page 31: Alert Codes
Check that all filters are properly installed and not excessively dirty. Alert codes Alerts are similar to faults but they do not reset the processor when they occur (i.e., the EZEX device continues to deliver therapy pressure). Device Fault Error... -
Page 32: Troubleshooting
Nose or throat irritation. Dry air. Add humidity to the room. Contact your homecare provider. If you are using the Transcend Heated Humidifier, increase the setting. If you are using the H6B or H9M waterless humidification system, replace the HME. -
Page 33: Appendix: Part Numbers
Page 33 Transcend EZEX User Manual Appendix: Part numbers This section presents three topics: Disposable parts Accessories Replacement parts Disposable parts Item Part Item Part number number Filter Media 503067 Standard 6-foot hose 503081 Transcend EZEX Filter Frame... -
Page 34: Appendix: Specifications
Page 34 Transcend EZEX User Manual Appendix: Specifications This section presents the following topics: Transcend EZEX AC power supply - PSA2 Mobile power adaptor (optional) - MPA1 Batteries Transcend EZEX Performance Manufacturer’s declaration Transcend EZEX Transcend EZEX weight: Less than 1.0 lbs (454 gm) -
Page 35: Transcend Ezex Performance
Page 35 Transcend EZEX User Manual Transcend EZEX performance Working pressure range: 4 to 20 cm H Accuracy of pressure setting: ±1 cm H O or ±10%, whichever is greater Maximum system shutdown pressure: 30 cm H Ramp time duration:... -
Page 36: Manufacturer's Declaration
Electromagnetic immunity IEC 60601-1 Compliance Electromagnetic emissions The Transcend EZEX is intended for use in the electromagnetic environment specified below. The customer or the user of the system should ensure that it is used in such an environment. Emissions test Compliance Electromagnetic environment—guidance... - Page 37 If the user 40% U (60% dip in 40% U (60% dip in U power supply input of the Transcend EZEX requires ) for 5 cycles for 5 cycles lines continued operation during 70% U (30% dip in...
-
Page 38: Iec 60601-1 Compliance
Page 38 Transcend EZEX User Manual IEC 60601-1 compliance Protection against electric shock: Class II Type BF Degree of protection against ingress of water: IP21. Protected against ingress of solid foreign objects greater than or equal to 12.5 mm in diameter. Vertically falling drops shall have no harmful effects. -
Page 39: Appendix: Limited Warranty
Page 39 Transcend EZEX User Manual Appendix: Limited warranty Somnetics warrants its products to be free of defects in materials and workmanship and will perform in accordance with the product specifications for a period specified in the following table: Product... - Page 40 Page 40 Transcend EZEX User Manual To qualify for repair, replacement, or refund, the defective device must be returned to Somnetics within 30 days after the discovery of the defect. Proof of purchase, including proof of the date of purchase, is required. Any repair, replacement, or refund obligation would not apply if the device has been repaired or otherwise altered in a facility not authorized in writing by Somnetics.
