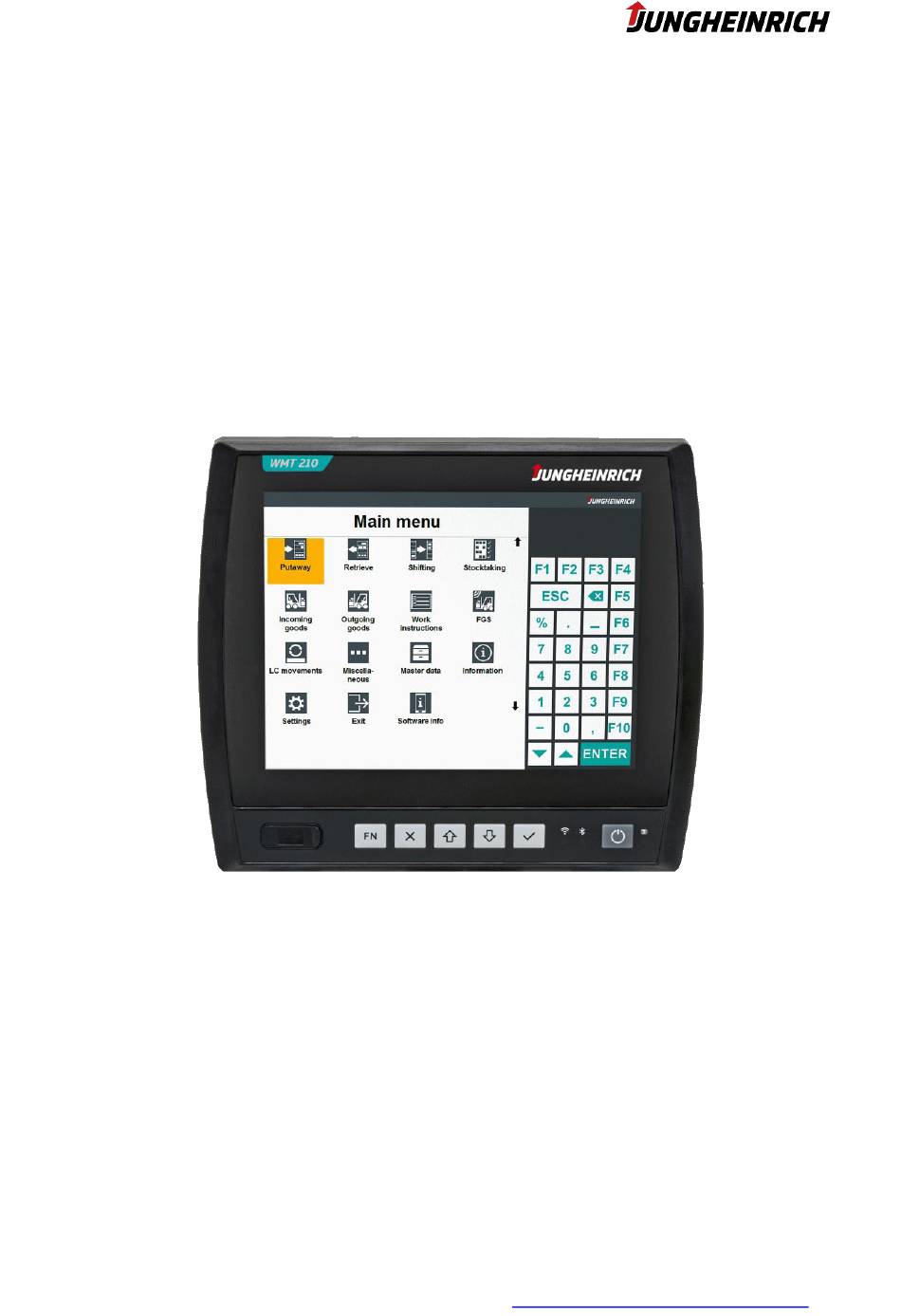

- Page 1 Jungheinrich WMT 210/215 Service manual Page 1 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de...
-
Page 2: Table Of Contents
Treatment and disposal of lithium batteries ..............6 Technical Data - Power supply ..................7 Technical data – UPS ....................7 Type plate ........................8 WMT 210 ........................8 WMT 215 ........................8 Scope of delivery ..............9 Mounting and Handling ............ 10 VESA75 Interface ...................... - Page 3 Power On / Power Off ....................27 6.11 Serial Port Wedge ....................... 28 6.12 Adaptive brightness and adjustment ................30 Jungheinrich Image: Windows Standard 10 IoT Enterprise 2019/2021 LTSC ..............31 Windows Updates......................31 Pre-installed third-party software ................. 31 BIOS ................... 32 Navigation in BIOS ......................
-
Page 4: Comments
Comments General Comments This manual is about administration and usage of the Jungheinrich truck terminals WMT 210 and 215, referred to in the following as device You can find further information for mounting, cabling and safety- relevant aspects in the separate available operation instructions. -
Page 5: General Description
The device can be damaged as a result of unauthorised mechanical modifications. Make sure that the device is not drilled, chiselled or perforated and its exterior shape and design is not modified in any way! Page 5 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 6: Environmental Conditions
Regarding conformity, please observe the information in the operating instructions enclosed with the device. The complete text of the EU declaration of conformity is available at the following Internet address: www.jungheinrich.com/declaration-of-conformity Warranty / repairs During the device warranty period, any repairs must only be performed by the manufacturer or by ser- vice personnel that has been authorised by the manufacturer. -
Page 7: Technical Data - Power Supply
The batteries cannot be charged at cell temperatures below 0 °C. Discharging: 0…60 °C) -20 – 45 °C Storage temperature Backup power time (typical) Depending on the load, at least 15 minutes Max. power 40 W Weightt 0,42 kg Page 7 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 8: Type Plate
Type plate WMT 210 Description Feature number Production year and calendar week Serial number (also as barcode above) WLAN MAC address (also as barcode above) Input voltage and maximum power consumption Manufacturer WMT 215 Description Feature number Production year and calendar week... -
Page 9: Scope Of Delivery
Check the contents of the packaging for completeness regarding your order: • 1 x device • 1 x 4-pin plug for power supply in the service duct • Operating instructions • Accessories according to order/delivery note Page 9 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 10: Mounting And Handling
Mounting and Handling WMT 210 WMT 215 VESA75 Interface VESA75 hole pattern according to illustration, position 4. Horizontal and vertical distance between the screw holes: 75 mm Thread: M6, torque: 8 Nm (recommended) Screw-in depth in the threaded bushings: max. 6 mm... -
Page 11: Interface Overview
Interface Overview WMT 210 Description Switch for autostart (OFF:ON) – standard: off Power supply (PE – 0 VDC – Ignition - +12 to +48 VDC) Grounding (PE) – 1,5mm² flat plug contact COM2 (RS232) COM1 (RS232) with optional 5V power supply on pin 9... -
Page 12: Wmt 215
Use grommets to ensure IP65 protection. The grommets have a slot on the side for inserting the cables. For strain relief, an additional cable tie can be attached over the corresponding opening on the outside. Page 12 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 13: Power Supply Connector
The two antennas for 2.4 and 5 GHz WLAN and Bluetooth are protected behind the two plastic covers on the back of the device. Avoid covering the antennas with metal parts during installation. WMT 210 WMT 215 The option "external antenna" deactivates the internal antenna at the rear right (2) and offers it exter- nally in the service slot via an R-SMA connector. -
Page 14: Start-Up
Except for the FN key and the power button, all keys can be individually configured via the Configuration Center. NOTE The assignment of the front keys in the BIOS differs from that in the operating system. See chapter Page 14 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 15: Users
Accept the Windows 10 licence agreement After completing the wizard, 2 reboots are performed and the final configuration scripts are run. Wizard Reset With the script "reset_image_for_customer" in the path C:\Program Files\Jungheinrich\ResetImage, the Windows Setup Wizard can be reset and restarted. Partitioning The devices are always equipped with a 64GB eMMC mass storage and optionally with an additional 128GB SSD. -
Page 16: Touch Calibration
Even if the system shuts down when battery capacity is critical, it cannot be guaranteed that updates have already been completely installed at this time. Configuration of the battery operation is done via the power settings of Windows 10. Page 16 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 17: Configuration Center
Administrative rights are required to edit the settings. The following chapters describe the individual menu items of the Configuration Center. All settings must always be saved via the diskette symbol at the top right before they become active. Page 17 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 18: System Information
System Information Displays detailed system-specific information, among other things: - System overview - BIOS version - Serial number - Model number - Image version - Network information - Hardware information Page 18 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 19: Ignition Key
Applying a voltage to the enable contact when the vehicle is switched off causes the device to switch on automatically. NOTE If no ignition voltage is applied to the device, activating the ignition function may render the device unusable until appropriate wiring has been established. Page 19 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 20: Wireless Connections
Wireless Connections Configuration of the WLAN and Bluetooth radio modules. Page 20 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 21: Backup And Restore
Backup and Restore Tools for backing up and restoring the operating system. Further information and details in chapter 9. Installation, Backup and Restore. Page 21 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 22: On-Screen Keyboard
The following settings, among others, can be made for the on-screen keyboard via the Con- figuration Center: Input language / keyboard layout (alphanumeric / numeric) Display (colours / transparency) Auto-hide after inactivity timeout (in seconds) Page 22 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 23: Internal Watchdog
Internal Watchdog Configuration of the internal watchdog. With the help of the watchdog, a "freeze" of the operating system can be detected and the system can react automatically with a restart or shutdown. Page 23 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 24: Front Buttons
Front buttons Configuration of the front buttons. Page 24 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 25: Usb Port Blocking
Only the data connection is blocked. Charging of USB devices is still possible. Complete deactiva- tion of the front USB port is possible via the BIOS. To deactivate a USB port, mark the corresponding USB port and press the "Lock" button. Page 25 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 26: Unified Write Filter
NOTE The change of the Unified Write Filter status is only applied after a restart. The current write protection status can be determined via the configuration menu or via the display on the desktop. Page 26 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 27: Power On / Power Off
If the power button is pressed for longer than 5 seconds, the device is switched off hard, regardless of the configuration. These settings are permanently stored in the system controller of the device. Changing the power settings in the operating system for the power button has no effect on the behaviour. Page 27 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 28: Serial Port Wedge
You can find a selection of possible pre- or postcodes in the following table: Code Syntax BACKSPACE {BACKSPACE}, {BS}, or {BKSP} BREAK {BREAK} CAPS LOCK {CAPSLOCK} DEL or DELETE {DELETE} or {DEL} DOWN ARROW {DOWN} {END} ENTER {ENTER} or ~ {ESC} HELP {HELP} HOME {HOME} Page 28 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... - Page 29 Y} you will have your following key delay Y ms but the subsequent keys will be delayed X ms. {APPACTIVATE WindowTitle} Activates an application using is WindowTitle. Very useful if you want to send different keys to different applications. Page 29 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de...
-
Page 30: Adaptive Brightness And Adjustment
6.12 Adaptive brightness and adjustment Default values according to illustration. Page 30 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 31: Jungheinrich Image: Windows Standard 10 Iot Enterprise 2019/2021 Ltsc
Jungheinrich Image: Windows Standard 10 IoT Enterprise 2019/2021 LTSC The following settings differ from the standard Windows configuration: • Windows Remote Desktop (RDP) connections are activated for "Admin" and "User" users. • Automatic Windows updates are deactivated, please deactivate the write protection (UWF) in any case before activating the updates. -
Page 32: Bios
To start the BIOS setup menu, please press the DEL key (external keyboard) directly after switching on the device. The One-Time-Boot menu can be opened via the ESC key (external keyboard) or via the "X" front key when the Jungheinrich boot logo is displayed: "Enter Setup" starts the BIOS setup menu. Navigation in BIOS NOTE The assignment of the front keys in the BIOS differs from that in the operating system. -
Page 33: Activating/Deactivating Interfaces
Default System Settings → Network Stack Configuration PXE-Boot Disabled Boot → Network Stack Driver Support Disabled System Settings → Front USB Front USB Enabled System Settings → M.2 Slot 3 USB3 3 USB 3.0 Enabled Page 33 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 34: Installation, Backup And Restore
"Create Backup..." button. In both cases, a copy of the backup image is first saved on the local restore partition. The image is stored as install*.swm in the folder image/"name of the backup" on the target drive. Page 34 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 35: Restore
In the menu "Please select boot device" that appears, select the option "Backup and Restore System" with the arrow keys and confirm with Enter. Then select the option "Restore System from Backup" by touching it. Page 35 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 36: Installation With Usb-Stick
Rquirments • USB stick with 16 or 32 GB storage space. • Either WMT 2XX with Jungheinrich Configuration Center at least v1.12.127 • Oder PC with Microsoft Windows 10 (oder höher) • WinPE boot environment for WMT 2XX (please contact LS-Support-Interfaces@junghei- rich.de) -
Page 37: Installation From Usb-Stick
The device loads the setup files of the USB stick and starts the "Backup and Restore System" tool. Continue with the desired installation. After pressing the button, a command line window opens automatically, which carries out the reinstal- lation of the unit. The progress is displayed during the installation. Page 37 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de... -
Page 38: Change History
Change history Date Description Version 30.05.2022 First Version 24.05.2023 Update for Image Version 4.1 Page 38 v1.1 24.05.2023 LS-Support-Interfaces@jungheinrich.de...
