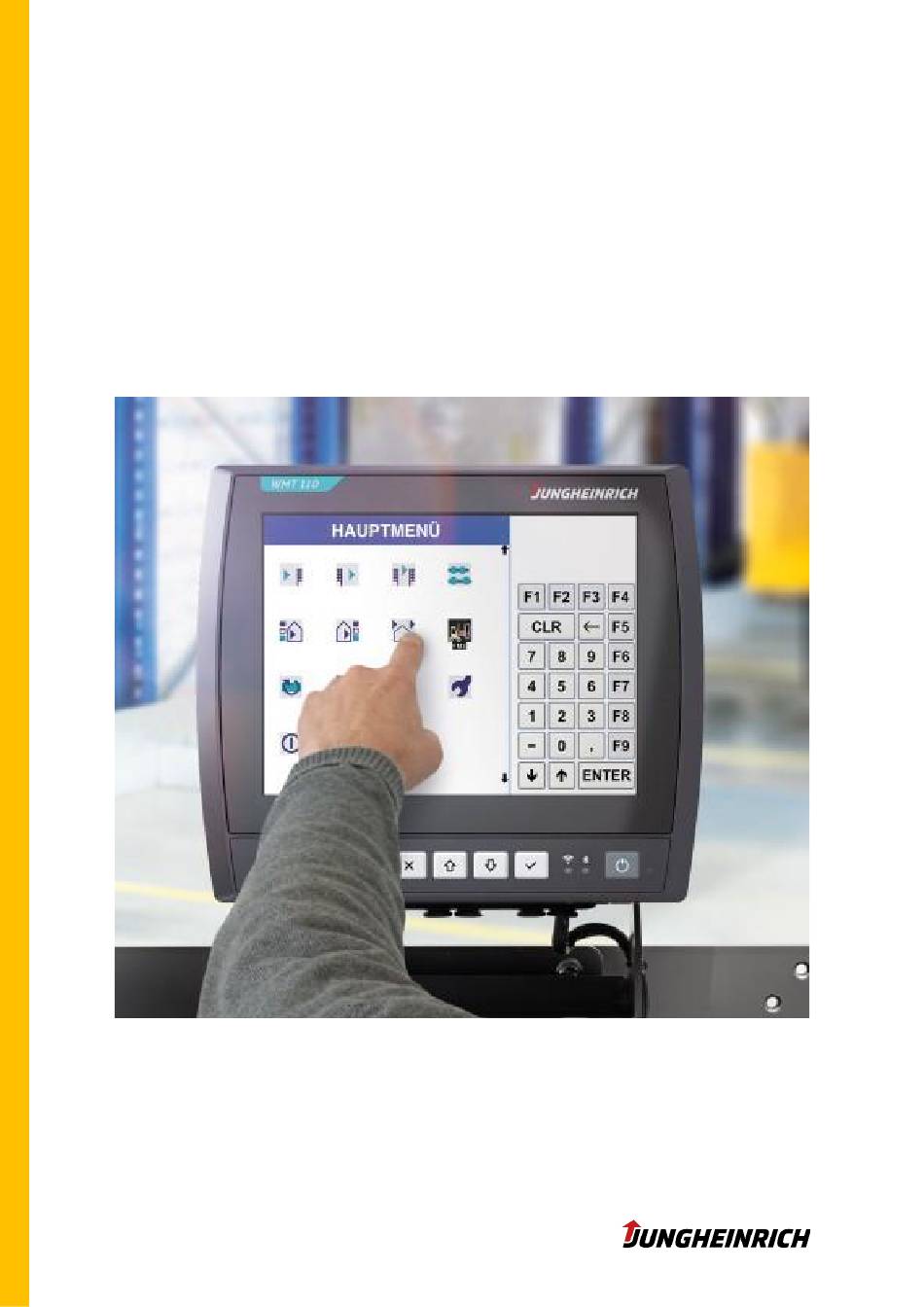

- Page 1 Jungheinrich WMT WMT110 / WMT115 Manual v1.7 18.06.2020...
-
Page 2: Table Of Contents
Windows Embedded Standard 7 ............6 User: “User” ................... 6 User: “Admin” ..................6 Front Buttons (default) ................7 Configuration ..............8 Jungheinrich WMT Setup Wizard ............8 WMT Configuration Center..............9 System Information ................10 USB Lock .................... 10 Front Buttons ..................11 On-Screen Keyboard ................ - Page 3 Creating an Install USB stick: .............. 27 Boot from Install USB stick ..............29 Create a Device Image Backup ............30 Reinstall / Restore System from Backup ..........32 Creation of a Clone Master Image ............33 WMT Operating System ............ 37 Elo Touchscreen –...
-
Page 4: Change History
1. Change History Date Description Version First Version 15.12.2016 Release 1.0 20.03.2017 Change Nomenclature / Screenshots 27.03.2017 Roundup according to german version 1.3 07.11.2017 Adaptations for SparkLAN Refresh 10.09.2018 Update for Windows 10 2019 LTSC 02.06.2019 ... -
Page 5: Comments
Every change in usage or recycling of the sup- plied contents, especially multipication, changes or publication needs to be approved by Jungheinrich. Jungheinrich reserves the right to assert rights concerning events of a breach of the copyright. The copyright of this manual belongs to JUNGHEINRICH AG. -
Page 6: Handling
3. Handling Users Windows Embedded Standard 7 If the terminal was started for the first time it will straight come up with the onbard administrator user „Admin” and start with the „4.1 WMT Setup Wizard”. As long as the „WMT Setup Wizard” hasn’t been completed once the WMT will boot with the „Admin”... -
Page 7: Front Buttons (Default)
Front Buttons (default) By default, the front buttons of the WMT are assigned to the following presets: On / Off button. Operating System will shut down or start. Power supply will not be disconnected Toggle key for the second keyboard layer. Press and hold, then use the function keys. -
Page 8: Configuration
The following chapter explains the necessary steps for setting up the WMT as well as other individual software configurations. Jungheinrich WMT Setup Wizard Jungheinrichs WMT Setup-Wizard can be used to set up the WMT and starts auto- matically at the first boot. The „WMT Setup Wizard” can set up the following configu- rations. -
Page 9: Wmt Configuration Center
Note The WMT Setup Wizard supports preconfiguring the following WLAN profiles: WEP or WPA / WPA2 encryption with a Pre-Shared-Key (PSK) authentification. WLAN-Profiles using EAP-authentification must be configured manually by using the Windows network configuration center. WMT Configuration Center Differences between WMT Configuration Center and WMT Info Center: The “WMT Configuration Center”... -
Page 10: System Information
System Information Displays system specific information: Computer name Device type Serial number Feature number BIOS version Firmware version Image version Network information Hardware equipment Screen “WMT Configuration Center” and ”WMT Info-Center“ are equal. USB Lock Tool to disable USB ports. -
Page 11: Front Buttons
To disable a USB port activate the checkbox of the appropriate USB port and save your changes by clicking on the floppy disk symbol in the upper right hand corner. Front Buttons Allows user specific configurations of the front buttons underneath the display. (default config look at 3.2) v1.7 18.06.2020... -
Page 12: On-Screen Keyboard
3. Follow the instuctions of the wizard then click on the disk symbol. The changes will now affect the front button. The front button configuration is saved under the following registry path: „[HKEY_LOCAL_MACHINE\SOFTWARE\Jungheinrich\FkCommProxy]” On-Screen Keyboard Beside Windows On-Screen-Keyboard (osk.exe) there is another preinstalled key- board available for the WMT. -
Page 13: Serial Port Wedge
Standard layout On-Screen-Keyboard: The „Configuration Center” enables the following setups Input language / keyboard layout (alphanumeric / numeric) Display (colour / transparency) Automatic fade out after inactivity timeout (in seconds) Enable key combination Lock control keys Serial Port Wedge By using the „Serial Port Wedge”... -
Page 14: File-Based Write Filter (Fbwf) / Unified Write Filter (Uwf)
How to configure Serial Port Wedge: 1. Select the appropriate COM port 2. Enable the checkbox „Enable port for Serial Wedge” 3. Configure the transmission settings according to the requirements of your serial device 4. Optional: Configure a Precode (inserted before entry) 5. - Page 15 It is recommended to enable the FBWF/UWF to avoid unintended changes to the sys- tem. Note All changes according to FBWF/UWF will affect after restarting the WMT. For Windows 7 the current FBWF status is permanently visible on the desktop back- ground, for Windows 10 only an active UWF state is displayed.
-
Page 16: Volume And Brightness
Volume and Brightness Allows regulation of display brightness and sound volume. Optionally, an automatic brightness control can be activated. The brightness sensor is mounted above the power LED. „Switching threshold” indicates the brightness sensor value, which triggers switching between „Night mode” and „Day Mode”. „Night mode brigthness”- as well as „Day mode brigthness”... -
Page 17: Ignition Key
Ignition Key The WMT is able to be turned on/off or its screen to be blocked via an additional signal input, the so called Ignition key. This function is intended for securing the device from unauthorized access and as well for saving energy on all battery operated vehicles or other mobile usage sites (see Device install guide). - Page 18 Show text Possibility of individual text display if Ignition function is executed Block screen: Locks / protects screen Block screen and power off backlight: Locks / protects screen and switches display Lock workstation: Locks current user session Shutdown: WMT will shutdown Sleep: WMT will go to sleep mode Timeout in seconds: Specifies the timespan in seconds until the specified action is performed...
-
Page 19: Power Button
Power Button Adjusts the behavior when pressing the power button Use Power-On delay Specifies the time in seconds that the power button must be pressed to turn on the WMT. Use power button to turn the device off If the power button is pressed during operation, the WMT switches off. Use Power-Off delay Specifies the delay after which the selected action is performed. -
Page 20: Configuration Deviations From Windows Standard
Display of file extensions has been activated. Energy settings are adjusted for long term usage. Internet-Explorer standard home page is changed to: https://support-rdt.jungheinrich.com/support/ All icons and symbols are displayed all the time in the system tray Windows Defender is disabled... -
Page 21: Preinstalled 3Rd-Party-Software
Preinstalled 3rd-Party-Software Following 3rd party software is included in the WMT1XX image: Product Manufacturer Function Sumatra PDF Krzysztof Kowalczyk PDF Viewer UNEX driver Qualcomm-Atheros WiFi network driver + configuration BGInfo Sysinternals Display Write Protection Status Elo Touchscreen driver Elo Touch Solutions Touchscreen configuration Intel Wireless driver Intel... -
Page 22: Egalax Touchscreen (Capacitive Displays)
Wavelink Telnet Client is one of the leading emulation clients to display emulation connections to host servers with VT, 5250, 3270, and HP connection protocols. The client is pre-installed on every Jungheinrich WMT11X-WMT. Wavelink can be started by default from the Start menu or via the following path: “C:\Program Files\Wavelink\Telnet\TelnetWin\TelnetWin.exe”... - Page 23 For more information, as well as the Wavelink Telnet client user guide, please refer to the manufacturer's web page. v1.7 18.06.2020...
-
Page 24: Bios
WMT. The one-time boot menu can be opened via the ESC key (external keyboard) or via the “X” front button when the Jungheinrich boot logo is displayed: „Enter Setup” starts the BIOS setup menu. Navigation in BIOS HINWEIS The front key assignment differs in the BIOS from that in the operating system. -
Page 25: Enable / Disalbe Interfaces
BIOS-Menu: Advanced & Chipset Enables the configuration of performance, hardware and interface properties. The settings are factory-set to the Jungheinrich WMT 11X and should only be changed by experienced staff. Via the following menu path, selected interfaces can be acti-... -
Page 26: Reinstall / Backup & Clone / Restore
Clone Master Image: A clone master image represents a backup of an already configured WMT, which can be played back on any number of Jungheinrich WMTs. Important: To be able to restore the image to multiple WMTs, it has to be reset partially back to the delivery configuration. -
Page 27: Wmt Usb Creator
PC with Microsoft Windows 7 (oder higher) Bootable USB Wizard for creating an install USB stick: Download the latest „Bootable USB Creator” from: https://support-rdt.jungheinrich.com/support/ Note Execute the „Bootable USB Creator” from a local filesystem on your computer and not from a network attached storage. - Page 28 “Do not want to copy a image file to the flash drive”. To reset the WMT to factory settings, download the latest image from http://www.support-rdt.jungheinrich.com. Continue with “Next” and check the settings before you finish the process with “Fin- ish”.
-
Page 29: Boot From Install Usb Stick
Boot from Install USB stick Before switching on the WMT, connect the installation USB stick to one of the USB ports. Switch on the WMT and start the one-time boot menu with the “ESC” button (see chapter 5 BIOS) and select the USB stick. The admin password is required, so a USB-Keyboard is required. -
Page 30: Create A Device Image Backup
Restart WMT will restart Create a Device Image Backup Create an installation USB stick and boot from it (see previous chapter). Select “Cre- ate System Backup” from “Backup and Restore System”. Requirements for a Device Image Backup: Prepared installation USB flash drive without operating system ... - Page 31 A command line window opens which automatically executes the backup. The pro- gress is displayed during the backup. After completion, the WMT is automatically re- started and booted from the internal memory card. The backup is stored on the USB stick under “X: \ images \ install.wim” where X: is the drive letter of the USB stick.
-
Page 32: Reinstall / Restore System From Backup
Reinstall / Restore System from Backup The Backup Image which was selected in the Wizard will be restored to the WMT (See previous chapter). When pressing the „Restore System From Backup” button, a command line window opens automatically, which performs the new installation of the WMT. The progress is displayed during installation. -
Page 33: Creation Of A Clone Master Image
The “Clone Master Image” is created using the “Clone Wizard”. It can be started via the link on the desktop or in the start menu of the “Admin” user or via the following path: „C:\Program Files\Jungheinrich\Clone Assistant\cloneass.exe” With enabled FBWF resp. UWF the following message appears: If you confirm this with “Yes”, the WMT is automatically restarted and the Write Filter... - Page 34 Commit with „Next” Choose an appropriate name for the backup file and connect a USB stick (8GB or more). v1.7 18.06.2020...
- Page 35 Note The size of the USB stick depends on the memory space occupied by the WMT and can be larger depending on the storage space requirement. Note Note that only one USB storage device may be connected to the WMT during the Clone process.
- Page 36 Note All data on the USB stick will be deleted and can not be restored. The WMT automatically restarts and boots the “Jungheinrich Backup and Recovery System”, which automatically performs the backup of the Clone master image. After completion of the Clone master backup the WMT is automatically restarted and booted from the internal memory card.
-
Page 37: Wmt Operating System
Jungheinrich has decided to install almost all the features for the WMT110 / WMT 115, thus providing an operating system that is comparable (or nearly identical) to a “full”... - Page 38 Additional Software components included in WMT Win 10 IoT Enterprise Windows 10 IoT Enterprise 2016 LTSB (64bit) Adobe Reader XI (11.0.17) Elo Touch Solutions. EloMultiTouch 6.9.0.19 Intel® Graphics Driver Jungheinrich Device Tools Microsoft Visual C++ 2012 Redistributable (x64) - 11.0.61030 Microsoft Visual C++ 2012 Redistributable (x86) - 11.0.61030 PEAK-Drivers Wavelink Telnet Client LANDesk Software Inc.
-
Page 39: Elo Touchscreen - Calibration (Resistiver Touch)
8. Elo Touchscreen – Calibration (resistiver Touch) WMTs, which are delivered with a resistive touchscreen, use an external driver to allow use of the touchscreen. In this case, the WMT must be manually calibrated. Affected WMTs can be identified by the following feature number: WMT11x-xRxxxxxxxxxx Note All resistive devices are calibrated before initial delivery and must be recalibrated... - Page 40 2. Go to the “small icons” view and select the “Elo Touchscreen” entry: 3. Select the desired calibration mode and start by clicking the button “Align” v1.7 18.06.2020...
