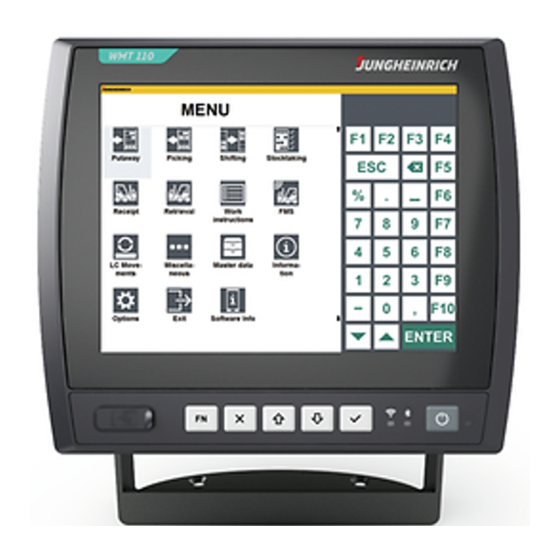

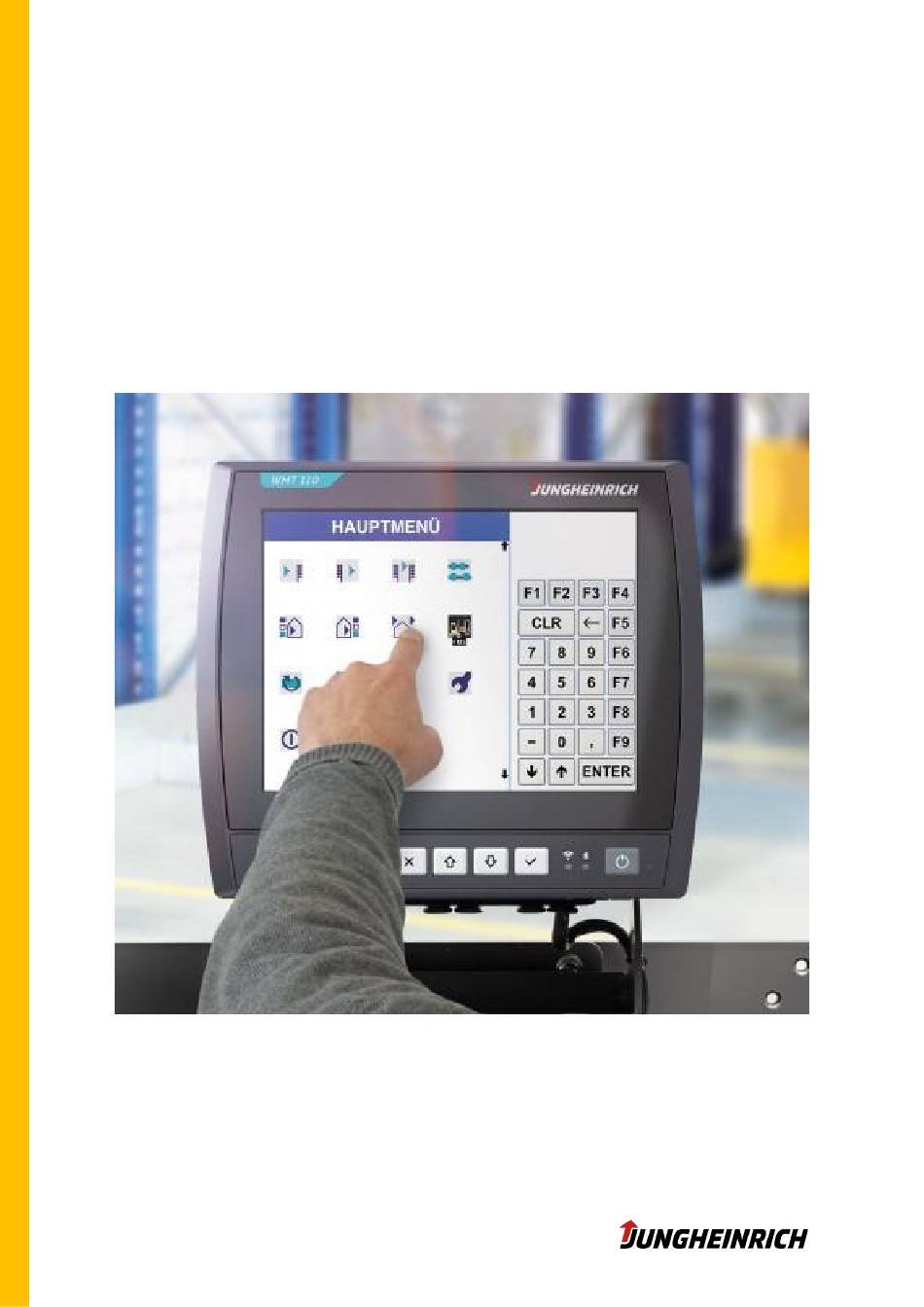

- Page 1 Jungheinrich WMT WMT110 / WMT115 Manual 51885736 v1.9 31.08.2021...
-
Page 2: Table Of Contents
Antennas WLAN and Bluetooth ................... 10 Handling ................11 Users ........................... 11 Front Buttons (default) ....................11 Configuration ..............13 Jungheinrich WMT Setup Wizard ................13 WMT Configuration Center ..................14 System Information...................... 15 USB Lock ........................15 Front Buttons ....................... 16 On-Screen Keyboard .................... - Page 3 Reinstall / Backup & Clone / Restore....... 29 WMT USB Creator....................... 30 Requirements: ......................30 Creating an Install USB stick: ..................30 Boot from Install USB stick ..................31 Create a Device Image Backup ................... 33 Reinstall / Restore System from Backup ..............35 Creation of a Clone Master Image ................
-
Page 4: Change History
Change History Date Description Version 15.12.2016 First Version 20.03.2017 Release 1.0 27.03.2017 Change Nomenclature / Screenshots 07.11.2017 Roundup according to German version 1.3 10.09.2018 Adaptations for SparkLAN Refresh 02.06.2019 Update for Windows 10 2019 LTSC 07.11.2019 Formal adaptions 18.06.2020 Windows Defender added 28.09.2020 Formal adaptions 31.08.2021... -
Page 5: Comments
Comments General Comments This manual is about administration and usage of the Jungheinrich WMT series 110/115. You can find further information for mounting, cabling and safety-relevant aspects in the separate available quick installation guide. The original version of this manual is in German. Every non-german version of this manual is a trans- lation. -
Page 6: General Description Of The Truck Terminal
General Description of the truck terminal Use description The Jungheinrich truck terminals WMT were specifically developed for use on forklift trucks in logistics and industrial environments. The terminal must be operated and stored under the following conditions: Temperature during operation -30°C to +50°C Temperature during storage -40°C to +80°C... -
Page 7: Type Plate
Type plate Description Feature number Production date (year and calendar week) Serial number (also as barcode above) WLAN MAC address (also as barcode above) Manufacturer Input voltage and maximum power consumption Material number v1.9 31.08.2021... -
Page 8: Opening The Service Chamber Cover
Opening the Service Chamber Cover Note The relevant safety measures must be observed at all times when handling electrostatically haz- ardous components. (DIN EN61340-5-1 / DIN EN 61340-5-2). Remove the screws from the service chamber cover (Fig. II, item 4) using a Torx Tx10 screwdriver. Remove the service chamber cover from the terminal. -
Page 9: Overview Of Interfaces
Overview of interfaces Description Grounding (PE) - 2x1,5mm² flat plug contacts Power supply (0V DC - ignition contact - +12 V or +24/48 V DC) Switch for auto start function (OFF:ON) COM2 (RS232) Switch for 5V at Pin9 COM1 (OFF:ON) COM1 (RS232) with optional 5V power supply on pin 9 R-SMA connector for external 2.4/5 GHz WLAN antenna (optional) 2 x Ethernet 10/100/1000 Mbit RJ45... -
Page 10: Antennas Wlan And Bluetooth
Antennas WLAN and Bluetooth The two antennas for 2.4/5 GHz WLAN and Bluetooth are protected behind the two plastic covers on the back of the vehicle terminal. When mounting, make sure that the antennas are not covered. If the option external antenna has been selected, the internal antenna at the rear right (2) is deac- tivated and offered externally in the service slot via an R-SMA connector. -
Page 11: Handling
When the device is switched on for the first time, the operating system automatically starts with the administrator user and begins with the WMT Setup Wizard (see 5.1 Jungheinrich WMT Setup Wizard). The WMT will continue to start in setup mode until the wizard has been completed once. - Page 12 Toggle key for the second keyboard layer. Press and hold, then use the function keys. Layer 1: Cancel (ESC) Layer 2: Decrease display brightness Layer 1: Navigation upwards Layer 2: Increase display brightness Layer 1: Navigation downwards Layer 2: Decrease volume Layer 1: Accept (Enter) Layer 2:...
-
Page 13: Configuration
Jungheinrich WMT Setup Wizard The Jungheinrich WMT Setup-Wizard can be used to set up the WMT and starts automatically at the first boot. The „WMT Setup Wizard” can set up the following configurations. Language and region... -
Page 14: Wmt Configuration Center
WMT Configuration Center The “WMT Configuration Center” is necessary for device specific configurations. Please look for the desktop icon to start the application. Administrator rights are needed. Further explanation is given in the following chapter. The “WMT Info Center” is able to display system information. Please look for the desktop icon to start the application. -
Page 15: System Information
System Information Displays system specific information: Computer name Device type Serial number Feature number BIOS version Firmware version Image version Network information Hardware equipment Screen “WMT Configuration Center” and ”WMT Info-Center“ are equal. USB Lock Tool to disable USB ports. -
Page 16: Front Buttons
To disable a USB port activate the checkbox of the appropriate USB port and save your changes by clicking on the floppy disk symbol in the upper right hand corner. Front Buttons Allows user specific configurations of the front buttons underneath the display. (default config look at 3.2) v1.9 31.08.2021... -
Page 17: On-Screen Keyboard
3. Follow the instructions of the wizard then click on the disk symbol. The changes will now affect the front button. The front button configuration is saved under the following registry path: „[HKEY_LOCAL_MACHINE\SOFTWARE\Jungheinrich\FkCommProxy]” On-Screen Keyboard Beside Windows On-Screen-Keyboard (osk.exe) there is another preinstalled keyboard available for the WMT. -
Page 18: Serial Port Wedge
Standard layout On-Screen-Keyboard: The „Configuration Center” enables the following setups Input language / keyboard layout (alphanumeric / numeric) Display (colour / transparency) Automatic fade out after inactivity timeout (in seconds) Enable key combination Lock control keys Serial Port Wedge By using the „Serial Port Wedge”... -
Page 19: File-Based Write Filter (Fbwf) / Unified Write Filter (Uwf)
How to configure Serial Port Wedge: 1. Select the appropriate COM port 2. Enable the checkbox „Enable port for Serial Wedge” 3. Configure transmission settings according requirements your serial device 4. Optional: Configure a Precode (inserted before entry) 5. Optional: Configure a Postcode (inserted after entry) 6. - Page 20 It is recommended to enable the FBWF/UWF to avoid unintended changes to the system. Note All changes according to FBWF/UWF will affect after restarting the WMT. The current write protection state can be determined either via the configuration menu or via the desktop information.
-
Page 21: Volume And Brightness
Volume and Brightness Allows regulation of display brightness and sound volume. Optionally, an automatic brightness control can be activated. The brightness sensor is mounted above the power LED. „Switching threshold” indi- cates the brightness sensor value, which triggers switching between „Night mode” and „Day Mode”. „Night mode brightness”- as well as „Day mode brightness”... -
Page 22: Ignition Contact
Ignition Contact The truck terminal has the option of being started or locked by means of an additional signal input. This function is used to protect the system against unauthorized access and saves energy when used in battery-powered vehicles or mobile locations. Applying a voltage to the ignition contact in the switched-off state automatically switches on the vehicle terminal. - Page 23 Show text Possibility of individual text display if Ignition function is executed Block screen: Locks / protects screen Block screen and power off backlight: Locks / protects screen and switches display off Lock workstation: Locks current user session Shutdown: WMT will shutdown Sleep: WMT will go to sleep mode Timeout in seconds: Specifies the timespan in seconds until the specified action is performed Background color: Specifies background colour...
-
Page 24: Power Button
Power Button Adjusts the behaviour when pressing the power button Use Power-On delay Specifies the time in seconds that the power button must be pressed to turn on the WMT. Use power button to turn the device off If the power button is pressed during operation, the WMT switches off. Use Power-Off delay Specifies the delay after which the selected action is performed. -
Page 25: Configuration Deviations From Windows Standard
Display of file extensions has been activated. Energy settings are adjusted for long-term usage. Internet-Explorer standard home page is changed to: https://support-rdt.jungheinrich.com/support/ All icons and symbols are displayed all the time in the system tray Windows Defender is disabled... -
Page 26: Egalax Touchscreen (Capacitive Displays)
The following functions are available: Handling touch control Define double click behaviour Define acoustical touch feedback Perform the calibration Disable touch function In the calibration mode “normal”, a 3-point calibration is performed. In the “enhanced” mode, a more precise, 29-point calibration is performed. -
Page 27: Bios
WMT. The one-time boot menu can be opened via the ESC key (external keyboard) or via the “X” front button when the Jungheinrich boot logo is displayed: „Enter Setup” starts the BIOS setup menu. Navigation in BIOS HINWEIS The front key assignment differs in the BIOS from that in the operating system. -
Page 28: Enable / Disable Interfaces
Enables the configuration of performance, hardware and interface properties. The settings are fac- tory-set to the Jungheinrich WMT 11X and should only be changed by experienced staff. Via the fol- lowing menu path, selected interfaces can be activated / deactivated:... -
Page 29: Reinstall / Backup & Clone / Restore
Clone Master Image: A clone master image represents a backup of an already configured WMT, which can be played back on any number of Jungheinrich WMTs. Important: To be able to restore the image to multiple WMTs, it has to be re- set partially back to the delivery configuration. -
Page 30: Wmt Usb Creator
Wizard creating install stick: Download the latest „Bootable USB Creator” from: https://support-rdt.jungheinrich.com/support/ Note Execute the „Bootable USB Creator” from a local file system on your computer and not from a network attached storage. Creating an Install USB stick: Download latest „Bootable USB Creator” and extract the compressed file. Then start „bootusbcrea- tor.exe”... -
Page 31: Boot From Install Usb Stick
“Do not want to copy an image file to the flash drive”. To reset the WMT to factory settings, download the latest image from http://www.support-rdt.jungheinrich.com. Continue with “Next” and check the settings before you finish the process with “Finish”. The USB stick... - Page 32 At the time of the new installation, only the boot USB stick should be connected to the WMT. Do not use a USB hub, but connect the boot USB stick directly to one of the available USB ports. The WMT loads the setup files from the USB stick and starts the “Backup and Restore System” tool. Continue with the desired installation.
-
Page 33: Create A Device Image Backup
Restart WMT will restart Create a Device Image Backup Create an installation USB stick and boot from it (see previous chapter). Select “Create System Backup” from “Backup and Restore System”. Requirements for a Device Image Backup: Prepared installation USB flash drive without operating system ... - Page 34 A command line window opens which automatically executes the backup. The progress is displayed during the backup. After completion, the WMT is automatically restarted and booted from the internal memory card. The backup is stored on the USB stick under “X:\images\install.wim” where X: is the drive letter of the USB stick.
-
Page 35: Reinstall / Restore System From Backup
Reinstall / Restore System from Backup The Backup Image, which was selected in the Wizard, will be restored to the WMT (See previous chap- ter). When pressing the „Restore System from Backup” button, a command line window opens automatically, which performs the new installation of the WMT. The progress is displayed during installation. After completion, the WMT will restart automatically and boots from the local storage of the WMT. -
Page 36: Creation Of A Clone Master Image
A Clone Master Image is a backup of an already configured WMT (including all settings and installed applications), which can be restored to any number of Jungheinrich WMT. To restore the backup to several WMTs, some device-specific settings are removed during the Clone process, e.g. Computer name, IP configuration. - Page 37 Commit with „Next” Choose an appropriate name for the backup file and connect a USB stick (8GB or more). v1.9 31.08.2021...
- Page 38 Note The size of the USB stick depends on the memory space occupied by the WMT and can be larger depending on the storage space requirement. Note Note that only one USB storage device may be connected to the WMT during the Clone process. Note The “Next”...
- Page 39 All data on the USB stick will be deleted and cannot be restored. The WMT automatically restarts and boots the “Jungheinrich Backup and Recovery System”, which automatically performs the backup of the Clone master image. After completion of the Clone master backup, the WMT is automatically restarted and booted from the internal memory card.
-
Page 40: Operating Systems
Operating Systems All Jungheinrich WMTs have a feature number on the back. This number can be used to draw conclusions on the preinstalled operating system. An embedded operating system (WES7, Windows 10 IoT) installed on a WMT con- tains a customized Jungheinrich image with additional software. -
Page 41: Windows Embedded Standard 7
Windows Embedded Standard 7 Included Software Components in the WMT WES7 Installation Image: WE7P SP1 (32 bit), .Net Framework 2.0 & 3.5; Application Support (COM OLE, COM+), Win32 Runtime & Libraries, Boot Environments: Windows Boot Environment, Internet Explorer 8, Windows Data Access Components (SQL), all Data Integrity features;...
