- Page 1 A R B I N T E N S I T Y I Q • U S E R M A N U A L USER MANUAL ARB INTENSITY IQ DRIVING LIGHTS...
- Page 3 To take full advantage of the features and benefits of these lights, please comprehensively read these instructions. If you have any further questions, please contact your nearest ARB dealer. Enjoy! A R B . C O M . A U...
-
Page 4: Care And Maintenance
• Ensure all electrical connectors and the wiring loom are secured away from sharp edges and hot surfaces. • Regularly check all mounting and adjusting bolts to ensure they are secure and tight. • If your light requires further service or repair, return it to your local ARB distributor. Compliance •... -
Page 5: Supplied Parts

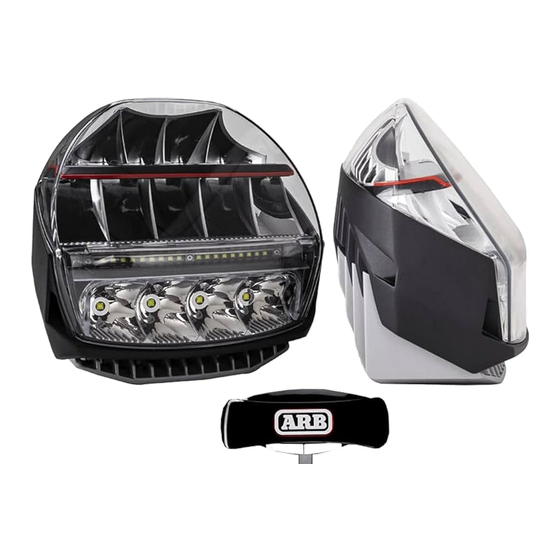

A R B I N T E N S I T Y I Q • U S E R M A N U A L Supplied Parts Lights (x 2) Light Control Module (LCM) Mounting Brackets (x 2) Wiring Harness Switch Fasteners Additional Parts (Sold Separately) -
Page 6: Harness Installation
The switch cable can be rotated rearwards for hidden cable installation. A hole in the dashboard is required for the cable. b. The switch cover can be removed and the ARB button rotated for reverse installation. This will place the QS1 and QS2 buttons at the top rather than at the bottom of the switch. - Page 7 Vehicle high beams on and off should turn driving lights on and off. c. Pressing the switch button on and off (ARB logo) should turn the switch on and off. d. Scrolling through the switch positions (1-6, QS1 and QS2) should change the light output.
-
Page 8: Light Installation
Please note, the lights are factory set with light numbers 1 and 2. How the lights are installed (left or right) is not crucial, however ARB recommend #1 is left and #2 is right to match the app layout. A sticker is affixed to each light stating its factory set light number. -
Page 9: Using The Switch
Lights ON and OFF To turn the driving lights ON and OFF, press the ARB button at the centre of the switch. Please note, the driving lights are linked with the vehicle high beam lights and will only operate when the vehicle high beam lights are ON. - Page 10 The driving lights are customisable using the app. This app is a free download from the iOS App Store or Google Play, search “ARB IQ”. The app supports iOS version 13 or later and Android version 6.0 or later. Once installed, the app can customise the switch settings with various parameters to you suit any driving requirements.
- Page 11 QS1 and QS2. To set the override, select and edit the requested switch position, then tap the Override ON button (see Figure 9). ARB recommends changing the optical brightness to suit a work light luminescence. The high beam trigger to operate driving lights is a legal requirement in most countries, thus the override feature must not be operated on public roads and/or areas.
- Page 12 Using the App (cont) Figure 8 Figure 9 Figure 10 Courtesy Enabled/Disabled The courtesy feature can be disabled using the app. This will disable the courtesy feature even when courtesy times are allocated to switch positions. To enable/disable the courtesy feature, go to the configuration page and select “Courtesy”...
- Page 13 A R B I N T E N S I T Y I Q • U S E R M A N U A L Table 2 Switch Super Spot Spot Flood Mid Range Override Fade Courtesy Application Position Brightness Brightness Brightness Brightness...
-
Page 14: Troubleshooting
Check voltage at the high beam trigger wire. supply. Check fuses. The switch is OFF. Press the ARB button to turn the switch ON. Turn vehicle ignition and headlights OFF. System reboot is required. Wait five seconds. Turn vehicle ignition and headlights ON. - Page 15 4. The procedure for the customer to claim the warranty is: a. Return the ARB Product to the nearest ARB Outlet or contact ARB to arrange a time to bring a vehicle fitted with the ARB Product to an ARB Outlet for inspection. Contact details are in paragraph 7 below if further information is required regarding local outlet details b.
