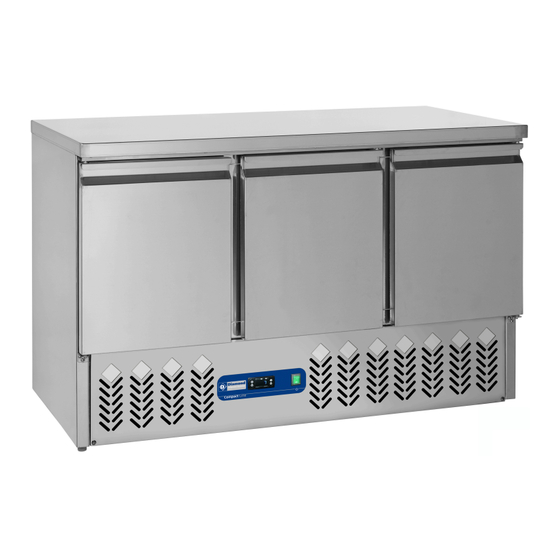

- Page 1 07/2018 Mod: SB2/R2 Production code: 39130631000 / GSF10P...
- Page 2 Model: Technical manual 302-070730...
-
Page 3: Table Of Contents
Contents Important safety instructions Unpacking and installation Electrical connection Start-up of the cabinet Thermostat Defrosting Maintenance and cleaning Service Disposal Dimensions Technical data Electrical circuit diagramme Refrigeration system Table of parameters... -
Page 4: Important Safety Instructions
Important safety instructions 1. To obtain full use of the cabinet, we recommend reading this instruction manual. 2. It is the user’s responsibility to operate the appliance in accordance with the instructions given. 3. Contact your dealer immediately in case of any malfunctions. 4. -
Page 5: Start-Up Of The Cabinet
The wires in this mains lead are coloured in accordance with the following code: Green/Yellow: Earth, Blue: Neutral, Brown: Live. The main electrical connections must be done by skilled electricians. Start-up of the cabinet Before use, we recommend that the cabinet is cleaned, see the section on maintenance and cleaning. Important ! If the cabinet has been vertically placed during transport, please wait 2 hours before starting up the cabinet. -
Page 6: Defrosting
Keyboard lock: To lock or unlock the keyboard, press these keys simultaneously for about 5 seconds (to lock the display reads ’Pof’, to unlock the display reads ’Pon’). Display set temperature: Press this key and the display will show the set temperature. Press the key again to return to normal reading Set new temperature: Press this key and the display shows the set temperature. -
Page 7: Maintenance And Cleaning
Maintenance and cleaning Switch the cooler off at the socket. The cabinet must be periodically cleaned. Clean the external and internal surfaces of the cabinet with a light soap solution and subsequently wipe dry. External surfaces can be maintained using steel oil. -
Page 11: Dimensions
Technical data Model Volume Dimensions Temperature Weight Voltage Wattage Energy Litres HxWxD nett Consumption ºC Kgs. Kwh/24h SA910 850x900x700 +2/+10 220-240 SA920 850x900x700 +2/+10 220-240 SA1045 850x1045x700 +2/+10 220-240 SA1365 850x1365x700 +2/+10 220-240 SA1365GC 850x1365x700 +2/+10 220-240... - Page 14 REK31E Parameter Description REK31 Main Set point 2 ºC Differential ( hysteresis ) 3 ºC lower limit of main set point 2 ºC Upper limit of main set point 10 ºC Minimum time interval between the disactivation and successive activation on compressor 99sec.
