07/2018
Mod: SR2/R6
Production code: 39130621000 / GP20I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT and is the answer not in the manual?

Questions and answers

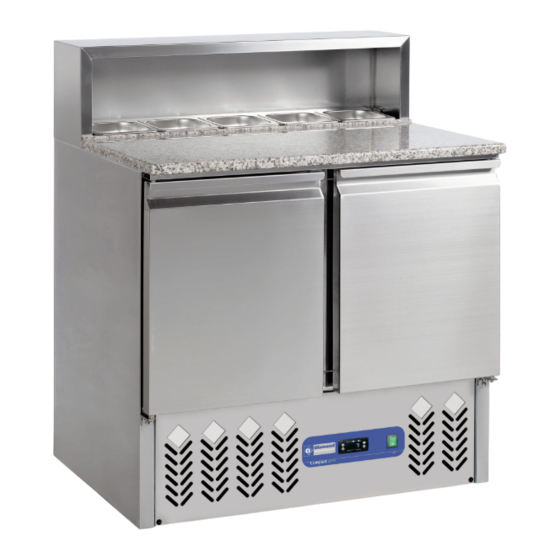

Summary of Contents for Diamond PT

  • Page 1 07/2018 Mod: SR2/R6 Production code: 39130621000 / GP20I...
  • Page 2 Model: Technical manual 602-070730...
  • Page 3: Table Of Contents

    Contents Important safety instructions Unpacking and installation Electrical connection Start-up of the cabinet Thermostat Defrosting Maintenance and cleaning Service Disposal Dimensions Technical data Electrical circuit diagramme Refrigeration system Table of parameters...
  • Page 4: Important Safety Instructions

    Important safety instructions 1. To obtain full use of the cabinet, we recommend reading this instruction manual. 2. It is the user’s responsibility to operate the appliance in accordance with the instructions given. 3. Contact your dealer immediately in case of any malfunctions. 4.
  • Page 5: Start-Up Of The Cabinet

    The wires in this mains lead are coloured in accordance with the following code: Green/Yellow: Earth, Blue: Neutral, Brown: Live. The main electrical connections must be done by skilled electricians. Start-up of the cabinet Before use, we recommend that the cabinet is cleaned, see the section on maintenance and cleaning. Important ! If the cabinet has been vertically placed during transport, please wait 2 hours before starting up the cabinet.
  • Page 6 Keyboard lock: To lock or unlock the keyboard, press these keys simultaneously for about 5 seconds (to lock the display reads ’Pof’, to unlock the display reads ’Pon’). Display set temperature: Press this key and the display will show the set temperature. Press the key again to return to normal reading Display evaporator temperature: Press this key continously to show the evaporator temperature, let go to return to normal...
  • Page 7: Defrosting

    Defrosting The cabinet defrosts automatically with pre-set intervals. If the door to the cabinet is opened or the contents of the cabinet is changed frequently it may become necessary to defrost the cabinet manually. Pressing this key continuously for more than 3 seconds will start a manual defrosting and then return to normal operation.
  • Page 12: Technical Data

    Technical data Model Volume Dimensions Temperature Weight Voltage Wattage Energy Litres HxWxD nett Consumption ºC Kgs. Kwh/24h PT920 1080-1100x900x700 +2/+10 220-240 PT1200 1390-1445x1510x800 +2/+10 220-240 PT1300 1390-1445x2045x800 +2/+10 220-240 PT1310 1390-1445x2045x800 +2/+10 220-240 VK38-150 435x1500x395 +2/+10 220-240 VK38-200 435x2000x395 +2/+10 220-240...
  • Page 13 REK31E (PT920/VK) Parameter Description REK31 Main Set point 2 ºC Differential ( hysteresis ) 3 ºC lower limit of main set point 2 ºC Upper limit of main set point 10 ºC Minimum time interval between the disactivation and successive activation on compressor 99sec.
  • Page 14 REK31ED/REK33 (PT1200/1300) Parameter Description REK31 REK33 Main Set point 0 ºC 0 ºC Differential ( hysteresis ) 3 ºC 3 ºC lower limit of main set point -2 ºC -2 ºC Upper limit of main set point 10 ºC 10 ºC Minimum time interval between the disactivation and successive activation on compressor 99sec.
