Ocean Digital DBA-01C8 User Manual

Ocean Digital DBA-01C8 User Manual

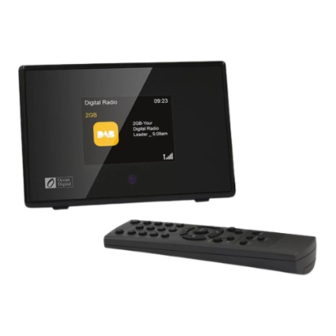

Dab+/dab/fm radio adaptor with bluetooth
Hide thumbs Also See for DBA-01C8:
Table of Contents

Advertisement

Quick Links

Download this manual

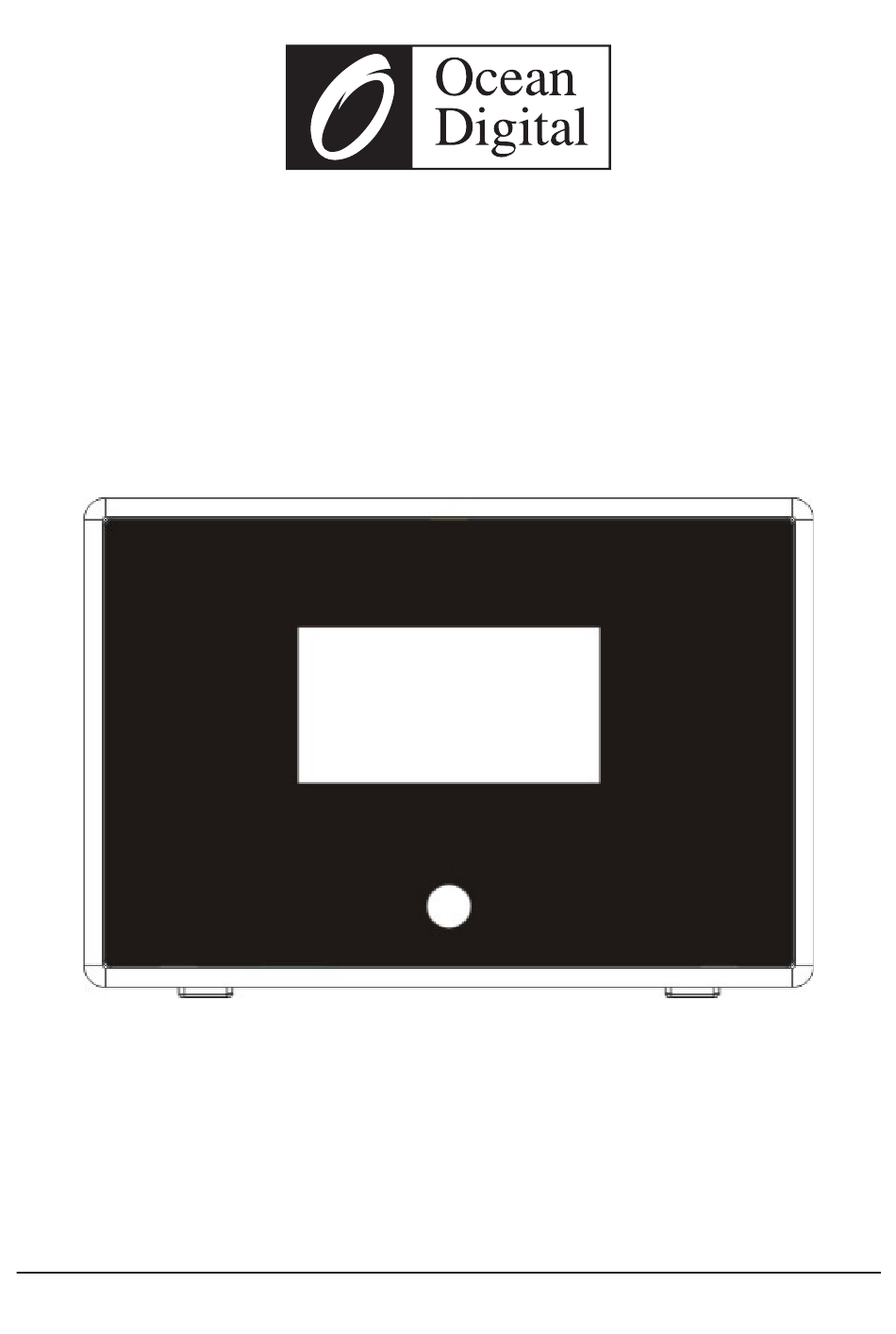

User Manual
DAB+/DAB/FM Radio Adaptor
with Bluetooth
DBA-01C8
(Additional powered speaker / active speaker is required
to use this product)
Please read this user manual carefully before using receiver

Advertisement

Table of Contents
loading

Related Manuals for Ocean Digital DBA-01C8

Summary of Contents for Ocean Digital DBA-01C8

  • Page 1 User Manual DAB+/DAB/FM Radio Adaptor with Bluetooth DBA-01C8 (Additional powered speaker / active speaker is required to use this product) Please read this user manual carefully before using receiver...

  • Page 2: Location Of Controls

    Location of Controls 1. 2.8” TFT color display 2. Infrared remote control sensor 3. 3.5mm audio out socket: Connect external powered speakers with 3.5 mm plug or RCA adaptor with 3.5mm plug 4. 3.5mm antenna input socket: connect with wire antenna 5.

  • Page 3: Remote Control

    Remote control 1. Power: Power on/off standby. 2. Mute: Silent on/off. 3. Numeric button 1-10: Preset and recall the radio station by pressing a specific number. Press and hold the button to store the station. Press briefly to recall the station. 4.

  • Page 4: Getting Started

    Getting started 1. Connect the AC adaptor supplied in the package to the DC jack at the rear side of the radio. 2. To get the best reception, place the radio near a window. 3. Connect your external powered speaker to the Aux-out jack on the radio.

  • Page 5: Radio Mode

    Radio Mode There are 3 radio modes available: Ÿ Digital Radio (DAB) Ÿ FM Radio Ÿ Bluetooth Press the <Mode> button repeatedly to Digital Radio select the mode you desire. DAB Radio Operation 1. Choose the DAB mode and press <Select> to confirm. 2.
  • Page 6 Main Menu There are other options available under DAB mode. Press the <Menu> button, it will enter into the menu as follow. Press <▲> and <▼> to select different option, you can press <►> key or <Select> to enter the sub-menu when there is > sign displayed.
  • Page 7 used in a noisy environment. This function is only available for the DAB. DRC Off – No compression DRC High – Maximum compression DRC Low – Medium compression Setting the compression to maximum will “boost” the quiet sounds, whilst keeping the loudest sounds at their original level.
  • Page 8 On/10 sec/20 sec/30 sec/45 sec/60 sec/90 sec/120 sec/180 sec. Select “On” will force your radio’s backlight to remain on constantly. If you select a specific time delay, after the selected time period has lapsed the display will dim down. 2. On level: This option will determine how bright the display’s backlight is lit while the radio is in ON mode.

  • Page 9: Radio Information

    Software Update This option can only be used with the advice by the seller. Software version You can find the software version of your radio. Radio Information When listening to a DAB radio station, you can view the information transmitted by the radio broadcaster if any. Cycling through the information available by pressing the <INFO>button repeatedly.

  • Page 10: Fm Radio Mode Operation

    FM Radio Mode Operation To switch to FM mode, press the <Mode> button repeatedly to highlight the FM mode. Auto scan Press <Scan> button, the radio will scan the next available station. Manual tune buttons To fine tune the frequency manually, use the ▲ or ▼ button. The frequency will be tuned up or down by 0.05MHz.

  • Page 11: Information Display

    Time/Date, Backlight, Language, Factory Reset, Software update, Software version For details of each option, please refer to the settings under DAB section. Information Display Under the FM radio playing screen, press the <INFO> button repeatedly to view the broadcasted information. The FM radio receives Radio Data System (RDS) information.

  • Page 12: Preset Recall

    11:33 34 RTHK BBC(WS) PARIS-Min.20°C Max.32°C FINE WORLD SERVICE Preset Recall 1. To recall the preset list, press the <Recall> button and it will display the list of the presets you have saved. 2. Alternatively, you can press a specific number to recall a specific radio station.

  • Page 13: Setting Of Alarm

    Setting of Alarm 1. Press <Alarm1> or <Alarm 2> button to start the setting. Setting can be done in Standby too. 2. Press <Select> to set the Alarm Off or ON. 3. Press ▲ or ▼ to go to next setting. 4.

  • Page 14: Bluetooth Operation

    Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location. Technical Specification Model: DBA-01C8 Radio mode: DAB+/DAB/FM/bluetooth Power input: 5V Power voltage: 100-240V~50/60Hz Audio socket: 3.5mm Audio-out jack...

  • Page 15: What's Included In The Box

    This system is financed by the industry and the ensures environmentally responsible disposal and the recycling of valuable raw materials. Ocean Digital Technology Ltd Flat B, 12/F., Yeung Yiu Chung (No. 8) Ind.Bldg., 20 Wang Hoi Road, Kowloon Bay, Hong Kong Email: support@oceandigital.com.hk...
