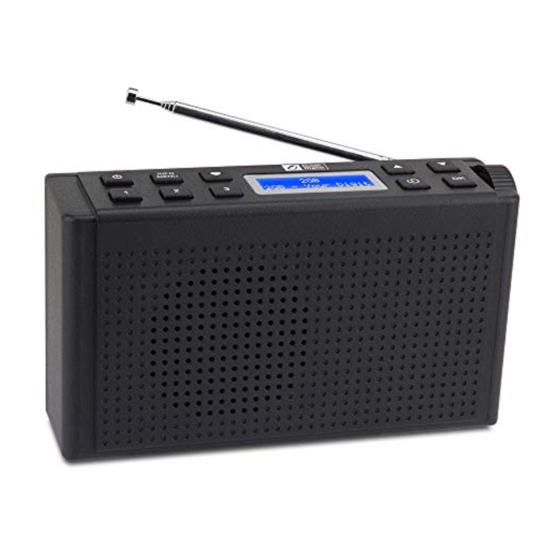

- Page 1 DAB+/DAB/FM Radio DK-70 User Manual Please read this user manual carefully before using the receiver.
-
Page 2: Table Of Contents
Contents Installation - Under the cabinet ......1 Location of Controls ...........3 Precautions ............6 Getting started ...........7 DAB radio operation ...........8 DAB radio information ........10 FM radio operation ...........11 FM radio information .........12 Preset a station ..........13 Recall a station preset ........14 Kitchen Timer ...........14 Q &... -
Page 3: Installation - Under The Cabinet
Installation - Under the cabinet The DK-70 is Portable and also the under cabinet radio. Here are the steps to install the DK-70 underneath the hanging cabinet in the kitchen: 1. The radio comes with a mounting board and screws (4 pcs) for installation. - Page 4 Installation - Under the cabinet ➀ Slide out the rear board on the radio È ➁ Cabinet Mounting board Screw ➂ Mounting board Slide in ➃ - 02 -...
-
Page 5: Location Of Controls
Location of Controls - 03 -... - Page 6 Location of Controls Press briefly to power on. Press and hold to power off 2. INFO/MENU [Info] Press the button repeatedly to view various info broadcasted by the radio station [Menu] Press and hold the button to enter the system menu Long press the button to enter the Preset list, short press the button to recall the preset list.
- Page 7 Location of Controls 6-8. Preset button 1-3 Press and hold the button 1-3 to quick saving the favourite channel, hit the same button to recall the channel (Kitchen Timer) Press to enter the timer setting 10. OK - Press to confirm a selection - Press to turn on the backlight - Press and hold the button in FM mode will initiate an auto scan.
-
Page 8: Precautions
Precautions • The radio should not be used in a high temperature or high humidity environment over prolonged periods of time as this may damage the unit. • Keep the radio away from liquids as it may get damaged. Please switch off the radio immediately if water or liquids is spilled into the radio. -
Page 9: Getting Started
Getting started The radio is powered by the built-in lithium battery. A USB cable is supplied in the product package. Hold and press the [ ] button to power on. To power off the radio, press and hold the same button. Charging battery You can check the level of battery power remains on the radio. -
Page 10: Dab Radio Operation
DAB radio operation DAB Scan If this is the first time the radio is power up, it will scan the DAB radio stations automatically. It will display and play the first station after the scan is done. In case it displays “Service not available”, press and hold the [OK] button to start scanning. - Page 11 DAB radio operation 4. Set date Format: This option will change the format of the date to DD/MM/YYYY or MM/DD/YYYY. Note: The FM auto Time/Date update may not work in your area, so the DAB auto update option is recommended. •...
-
Page 12: Dab Radio Information
DAB radio information When the radio station is playing, press the [INFO/MENU] button repeatedly to cycle through the information broadcasted by the radio as follow: • DLS (Dynamic Label Segmenting): Radio text broadcasted from the DAB station such as the news, songs being played…etc. -
Page 13: Fm Radio Operation
FM radio operation There are other options available under FM mode. Press and hold the [INFO/MENU] button, it will enter into the menu as follow: System The options available are same as DAB. Please refer to the DAB section as described above. FM scan Press and hold the [OK] button will initiate the Auto scan and it will automatically save to the preset list. -
Page 14: Fm Radio Information
FM radio information When the radio station is playing, press the [INFO/MENU] button repeatedly to cycle through the information broadcasted by the radio as follow: • RT (Radio text): Text broadcasted from the FM station (if any). • Signal error: The signal strength is displayed graphically. -
Page 15: Preset A Station
Preset a station The radio can store up to 20 DAB stations and 20 FM stations in its preset memories for instant access to your favorite stations. 1. Tune your radio to the station that you wish to preset. 2. Press and hold [Preset] button on the radio, it will enter the "Preset Store"... -
Page 16: Recall A Station Preset
Recall preset/Kitchen Timer Recall a station preset Briefly press the [Preset] button on the unit, the preset list will pop up. Press the [▲/▼] button to find the station you want to listen, then press [OK] button to recall the station. If you have preset the favourite channels for Preset button 1-3, simply press these buttons to access them quickly. -
Page 17: Q & A
Q & A If you are experiencing problems with your DAB radio there are some quick and easy checks that you can do, which may help to solve the problem. No DAB reception - If it displays “Service not available”, please carry out “Factory Reset”... -
Page 18: Technical Specification
Technical Specification Model DK-70 174.928MHz (5A)-239.200MHz (13F) DAB frequency range support DAB and DAB+ FM frequency range 87.5-108MHz Power input Battery power Lithium-ion battery 1200mAH 3.5mm earphone jack Audio socket 160 x 51 x 85 mm (L x D x H) - Page 19 This system is financed by the industry and the ensures environmentally responsible disposal and the recycling of valuable raw materials. Ocean Digital Technology Ltd Flat B, 12/F., Yeung Yiu Chung (No. 8) Ind. Bldg., 20 Wang Hoi Road, Kowloon Bay, Hong Kong Email: support@oceandigital.com.hk...
