- Page 1 Desktop DAB+/DAB/FM Radio Receiver DK-821B User Manual Please read this user manual carefully before using the receiver...
-
Page 3: Table Of Contents
Contents 1. Introduction to the DK-821B Desktop DAB+/DAB /FM Radio Receiver ........4 2. Location of Controls ........6 3. Overview of Radio modes and functions ..8 4. DAB Radio mode ...........9 5. Main Menu-Options and Settings ....10 6. FM Mode ............14 7. -
Page 4: Introduction To The Dk-821B Desktop Dab+/Dab /Fm Radio Receiver

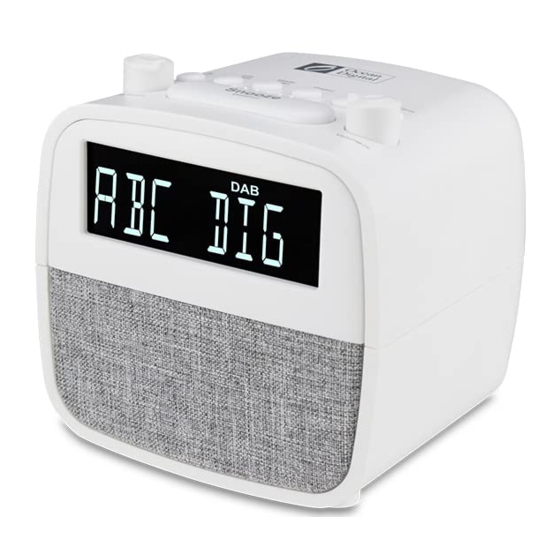

Introduction to the DK-821B Desktop DAB+/DAB/ FM Radio Receiver The DK-821B Radio is a compact, multi-purpose and attractive clock radio with 5V/1.2A power supply for long hours of audio entertainment and a gateway into the world of digital DAB and FM audio. - Page 5 Introduction to the DK-821B Desktop DAB+/DAB/ FM Radio Receiver Precautions Ø Connect the power adaptor to the wall and the radio rear DC jack for power supply – do not apply any other power source or permanent damage to the radio may occur and be hazardous.
-
Page 6: Location Of Controls
Location of Controls Bottom Front Back - 6 -... - Page 7 Location of Controls 1. On/Standby ( ) – Press to power on the radio and press again for standby 2. Info/Menu – Press to display radio station information or Press and Hold for main menu 3. Mode/Scan – Press to switch between radio operating modes i.e.
-
Page 8: Overview Of Radio Modes And Functions
3) BT (Bluetooth) – Switch your Bluetooth device to a paring mode and look up the device named “DK-821B ” from the list, select it to start pairing. When “Paired” (connected) to another Bluetooth device, use the Radio as a powered speaker. -
Page 9: Dab Radio Mode
DAB Radio mode With the attached pig tail antenna fully extended, turn on the radio and position antenna for strongest signal reception. If this is the initial/first time the radio is turned on, it will go directly to DAB mode, automatically start a full station scan, create a list of all the DAB stations found and when finished, it is start playing the first station on the list. -
Page 10: Main Menu-Options And Settings
Main Menu – Options and Settings To display the Main Menu, press and hold the Info/Menu button until an option list is displayed. The Main menu is not available if no radio station available on DAB mode. To exit sub-menu, press Info/Menu button again to go back to the previous menu. - Page 11 Main Menu – Options and Settings 2) HIGH (DRC High) – Maximum signal compression to boost the low volume sounds while keeping the loud sounds at the received level. 3) LOW (DRC Low) – Medium Compression • Prune – Edit station list option to remove unwanted stations or stations that can no longer be received.
- Page 12 Main Menu – Options and Settings 4) Select Alarm sound duration option i.e. 15, 30, 45, 60 or 90 minutes 5) Select the source for the Alarm sound i.e. Buzzer or DAB and FM radio station in My Favorite list 6) Select option for the Alarm to automatically repeat i.e.
- Page 13 Main Menu – Options and Settings 3) Set 12/24 – option to select time display in 12 or 24 hour format 4) Set Date Format – Select DD/MM/YYYY or MM/DD/YYYY display format Note: FM time updates are not always available in some areas.
-
Page 14: Fm Mode
FM Mode With the pig tail antenna fully extended, position for strongest signal reception and select FM mode (Mode>FM). To setup FM mode options press and hold Info/Menu button until the option list is displayed. The list contains all the same options as in the DAB main menu with two specific FM options added. -
Page 15: Station Preset And Recall
Station Preset and Recall Preset Up to 20 DAB and 20 FM stations (i.e. 20 for DAB and 20 for FM) can be stored in the Preset memory for easy and fast access of favorite stations. To set a Preset play the station to be stored in the preset memory;... -
Page 16: Bluetooth Mode
(i.e. paired) to the device. The Bluetooth source device controls the pairing process; find DK-821B in the list of available devices on the Bluetooth source device and pair the two devices. The “BT” icon will stop flickering when the two devices are paired. -
Page 17: Micro Sd/Tf Playback Mode
Micro SD/TF Playback mode Insert a Micro SD/TF card with audio files stored in MP3 format, into the slot on the rear of the radio; press the Mode button repeatedly to navigate to Micro SD/TF mode to automatically start playing the first track. Playback/Select song While playing, rotate the Tune/Select knob to skip to different tracks;... -
Page 18: Reboot Radio
Reboot Radio In the unlikely event that the radio becomes unresponsive or a mode stops functioning correctly, disconnect the power adaptor, wait a few seconds and then plug it in again. The radio will reset and turn itself off without changing any of the options or setting previously made. -
Page 19: Q & A
Q & A Radio does not turn on • Connect the power adaptor to the radio and plug it into the A/C wall socket. No DAB or poor reception • Make sure the pig tail antenna is fully extended and positioned (i.e. -
Page 20: Technical Specifications
Technical Specifications Model DK-821B 5 Volts 1.2 Amp DC Power Input (Power adaptor included) Radio Reception DAB+/DAB Band III, 5A – 13F Frequency Range FM 87.5 – 108 MHz V4.2 BR, EDR Compliant Bluetooth Version Frequency 2.4 GHz Range ≤10 meters (Line of sight) -
Page 21: In The Box
financed by the industry and the ensures environmentally responsible disposal and the recycling of valuable raw materials. Ocean Digital Technology Ltd. Flat B, 12/F., Yeung Yiu Chung (No.8) Ind. Bldg., 20 Wang Hoi Road, Kowloon Bay, Hong Kong Email: support@oceandigital.com.hk...
