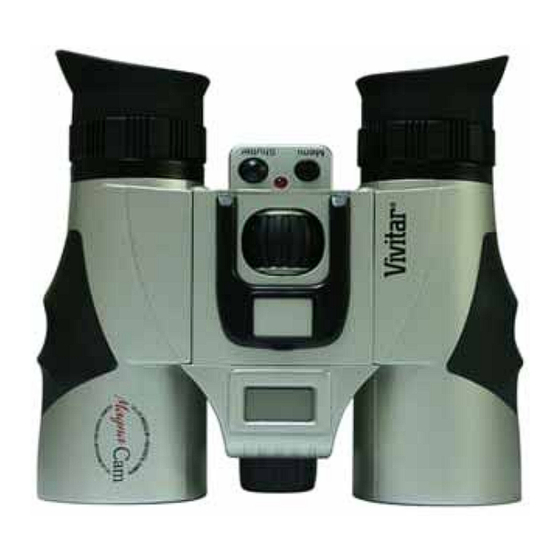

- Page 1 Vivitar MagnaCam 10x25B Digital Camera/Binocular MagnaCam DIGITAL CAMERA/BINOCULAR 10 x 25B INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Vivitar MagnaCam 10x25B Digital Camera/Binocular Introduction Specifications Operation Software Installation Maintenance 10 August 2003 Contents... -
Page 3: Introduction
Vivitar MagnaCam 10x25B Digital Camera/Binocular 1. Introduction Vivitar MagnaCam 10 x 25B is a unique combination of a binocular and digital camera. It is designed for simple operational utility with these features: o Fully functional binocular o Integral Digital Camera offering: Digital-still image capture of the scene Continuous shooting (movie) mode –... - Page 4 7. USB cable 8. Lens hood 9. Instruction Manual* 10. Warranty card Please note that inclusions and accessories will vary depending upon your retailer. * Updates to this Product User Manual will be available on the Vivitar website at www.vivitar.com...
-
Page 5: Specifications
Vivitar MagnaCam 10x25B Digital Camera/Binocular 2. Specifications – MagnaCam 10x25B Image Resolution (still images) Image Storage Internal Memory Lens Aperture Focus Length Angle of View (degrees) Range of Focus Exposure & White Balance Power Magnification Angle of View (degrees) Objective Lens Diameter Nearest Observing Distance Exit Pupil Distance &... - Page 6 Vivitar MagnaCam 10x25B Digital Camera/Binocular 2.2 LCD Display...
-
Page 7: Operation
Vivitar MagnaCam 10x25B Digital Camera/Binocular Digital camera modes and functions are presented on the information LCD display on the top of the binocular frame. Press and hold the Menu button for one second to power-on the camera. The camera will beep as it powers-up. - Page 8 Vivitar MagnaCam 10x25B Digital Camera/Binocular Clear (delete) Last image Resolution setting Low/High compression rate Frequency setting Note: The sequence of the digital camera menu presentation is the same as this table. When the batteries are low, the LCD display will blink and the camera will automatically turn off.
- Page 9 At this point the object is in focus for your left eye. 2. Close your left eye and look through the binocular at the same object with your right eye. Rotate the Diopter ring until the object is sharp and clear.
- Page 10 Vivitar MagnaCam 10x25B Digital Camera/Binocular 3.1 Digital Camera Operation The MagnaCam 10 x 25B digital camera has two imaging modes: still image mode, and movie mode. 3.1.1 Still Image Mode (for shooting individual frames) - Press the Menu button to turn on the camera and observe the LCD display.
- Page 11 Vivitar MagnaCam 10x25B Digital Camera/Binocular 3.1.2 Self-Timer Shooting - Press Menu until Press the Shutter button. The LCD will countdown, the LED will flash, and the camera will beep for 10 seconds. 3.1.3 Movie Shooting - Press Menu until View the object through the binocular.
- Page 12 MagnaCam to your PC. You can also Double click the MagnaCam 10x25B icon on your computer desktop to download images: When you run the MagnaCam driver utility it will open a window as follows:...
- Page 13 Vivitar MagnaCam 10x25B Digital Camera/Binocular 1. Click the "Download" button to view your images. 2. Click an image thumbnail to select it. Click on Next page to see more images. Click on "Select All" button to select all images. 3. Click on "Save to Disk" to save the images you have selected.
- Page 14 Vivitar MagnaCam 10x25B Digital Camera/Binocular Computer System Requirements: Your digital camera images can be transferred to you computer for viewing and processing. As a minimum your computer should have: Windows 98/Me/2000/XP 200 MHz processor 128 MB RAM CD-ROM drive Available USB port...
-
Page 15: Software Installation
Vivitar MagnaCam 10x25B Digital Camera/Binocular 4. Software Installation Software and drivers should be installed before connecting the MagnaCam to your PC for the first time. Windows users should insert the enclosed CD into your computers CD-ROM drive. The CD should run automatically. If not, go to My Computer and click on the CD-ROM icon. - Page 16 Windows XP users can access the video mode of using Movie Maker. You may demonstrate the video function of MagnaCam 10 x 25B using a video utility PCCam.exe included with the driver. This utility can be found in the Windows Twain 32 directory under Magnacam 10x25B.
-
Page 17: Maintenance
To clean your digital binocular, use a mild detergent and soft damp cloth. Important Note Regarding Image Storage The MagnaCam 10x25B camera features SDRAM memory built-in. If battery power is removed for more than 30 seconds your images will be erased. Therefore, please download your images to your computer before taking out, or replacing, the battery.
