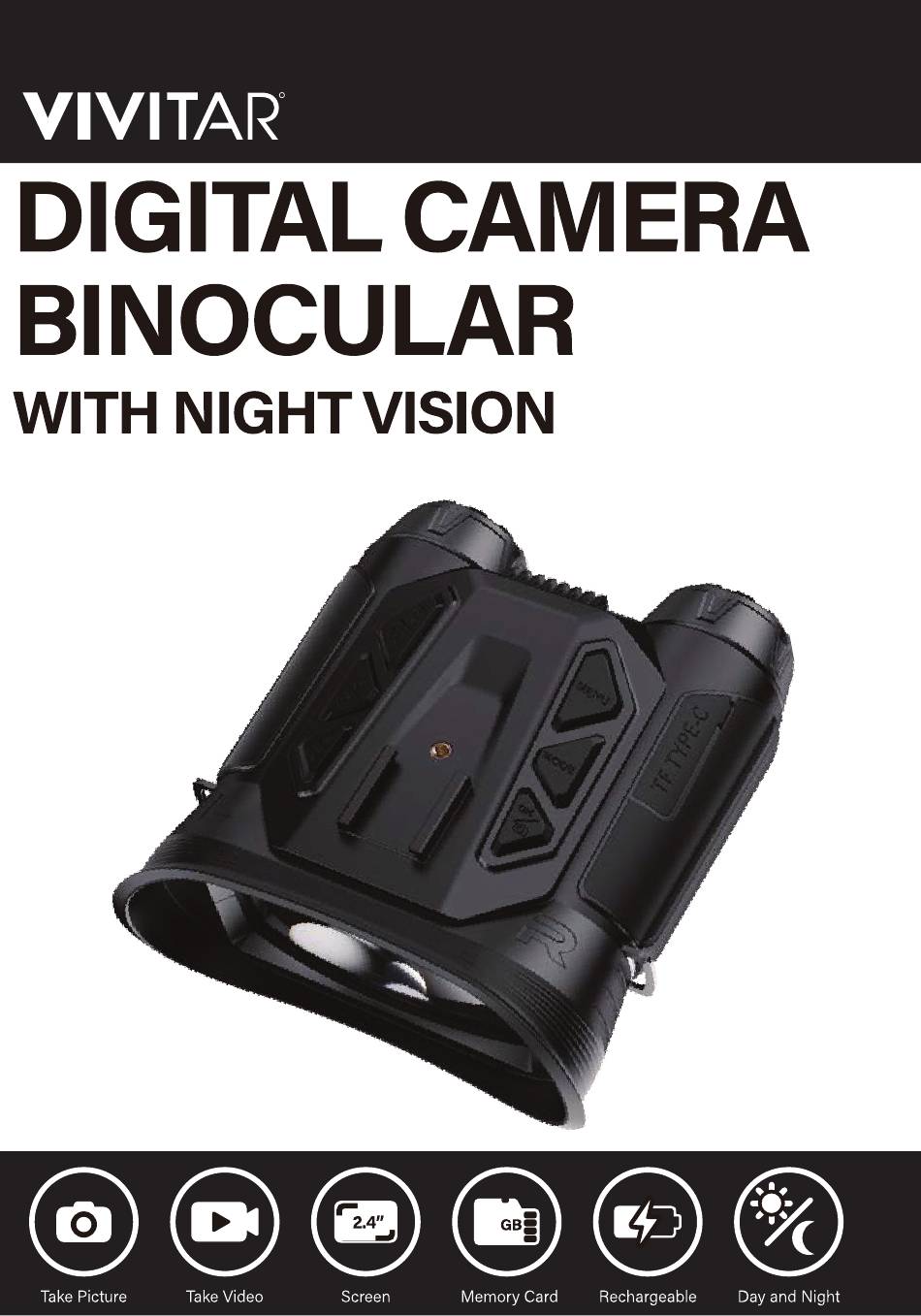

- Page 1 VIVCVIR13 INSTRUCTION MANUAL...
-
Page 2: Important Safety Precautions
Important Safety Precautions When using your Vivitar Digital Camera Binocular With Night Vision basic safety precautions should always be followed, including the following: 1. READ ALL INSTRUCTIONS BEFORE USING YOUR CAMERA. 2. Do not use your camera near water. Shut down immediately and remove the battery if it is exposed to water or short circuiting. -
Page 3: Table Of Contents
Table of Contents Introduction ....................3 Features ......................3 Package Contents ..................3 A Quick Look at your Camera ............4 Charging Your Device ................5 Button Functions ..................6 Inserting a Memory Card ................. 7 IR-LED Night Vision ................... 8 Powering On &... -
Page 4: Introduction
Introduction Thank you for purchasing your Vivitar Digital Camera Binocular With Night Vision, item VIVCVIR13. Use the night vision function to see in the dark. In order to get the best results when using this device, please read this manual first before using. -
Page 5: A Quick Look At Your Camera
A Quick Look at Your Camera 1. Focus Wheel 2. IR Down/Zoom Out/Down Button 3. Power Button 4. IR Up/Zoom In/Up Button 5. Helmet Fixing Hole 6. Display Screen 7. Menu Button 8. Reset Button 9. USB Interface 10. Memory Card Slot 11. -
Page 6: Charging Your Device
Charging Your Device Before using the device, ensure it is fully charged by using the provided USB-C cable. Insert one end of the cable into the USB port on the side of the binocular. Insert the other end of the charging cable into the USB port of a suitable USB charging adapter. -
Page 7: Button Functions
Button Functions Power Button -Press and hold to power on the camera. -Press and hold to power off the camera. Menu Button -Press to access the current settings menu. Mode Button -Press to switch between video, photo, and playback modes. OK/Shutter Button -Press to start/stop capturing photos and videos. -
Page 8: Inserting A Memory Card
Inserting a Memory Card Before powering on your camera, insert a microSD memory card into the memory card slot. A microSD memory card is required to store recorded photos and videos. 1. Locate the memory card slot on the side of the camera. 2. -
Page 9: Ir-Led Night Vision
IR-LED Night Vision Press the IR Up button to activate the IR-LED night vision light while your camera is in photo or video mode in a dark environ- ment. There are seven levels of IR-LED light intensity. To change the intensity, press the IR Up button to increase it or the IR Down button to decrease it until you reach the desired result. -
Page 10: Powering On & Off
Powering On & Off Powering On Press and hold the Power button to power on your camera. Powering Off Press and hold the Power button to power off your camera. Switching Modes Your camera has three different modes, photo mode, video mode and playback mode. -
Page 11: Accessing Menus
Accessing Menus After powering on the camera, press the Menu button to open the settings menu. Each mode has a corresponding menu that is accessed by pressing the Menu button. To change photo or video settings, the corresponding mode must be running. To open photo settings, photo mode must be on. -
Page 12: Photo Mode/Taking Photos
Photo Mode/Taking Photos After powering on your camera, press the Mode button to enter Photo mode. In Photo mode, you should see a camera icon at the upper left corner of your display screen. 1. Camera Icon 2. Infrared Light Display 3. -
Page 13: Video Mode/Recording Videos
Video Mode/Recording Videos After powering on your camera, video mode will be on by default. In video mode, you should see a video icon at the upper left corner of your display screen 1. Video Icon 2. Infrared Light Display 3. -
Page 14: Playback Mode
Playback Mode To enter playback mode, press the Mode button repeatedly until the playback icon is shown at the top left of the screen. Once in playback mode, use the up and down buttons (IR Up/IR Down) to toggle through videos or photos. Press the Shutter button to play or pause videos. -
Page 15: Connecting To A Computer
Connecting to a Computer There are two methods that can be used to connect to a computer. 1A. Remove the memory card from the camera and insert it into a card reader. Then, connect the card reader to your computer. 1B. -
Page 16: Manual Focus
Manual Focus When looking through the display screen on video or photo mode, objects may appear blurry. To sharpen, focus the camera’s lens by rotating the lens to the left or right. -
Page 17: Specifications
Specifications Lens Angle FOV=10, diameter=25mm Digital Zoom IR LED 3W, 850nm IR Night Vision Supported 2.4” HD TFT 240*320 Display Screen 16M, 10M, 8M, 5M, 3M, VGA Image Resolution QHD, FHD, HD Video Resolution Infrared Spotlight Supported Micro-SD Card Max 128GB Memory (Recommended) USB Port... -
Page 18: Fcc Compliance Statement
FCC Compliance Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 19: One Year Warranty
To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 or visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures.
