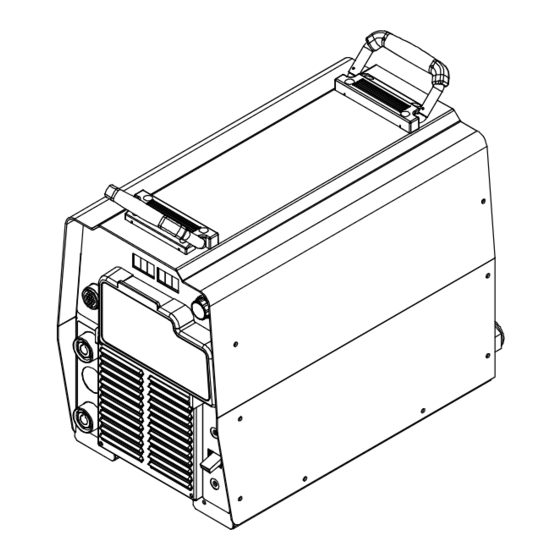

Miller AlumaPower 350 MPa Auto-Line CE Owner's Manual

Arc welding power source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Visit our website at
www.MillerWelds.com
AlumaPower 350 MPa
Auto-Line
OM-245 182G
Processes
MIG (GMAW) and Pulsed MIG
(GMAW-P) Welding
Description
Arc Welding Power Source
™
™
CE
File: MIG (GMAW)
2013−02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AlumaPower 350 MPa Auto-Line CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miller AlumaPower 350 MPa Auto-Line CE

Summary of Contents for Miller AlumaPower 350 MPa Auto-Line CE

  • Page 1 OM-245 182G 2013−02 Processes MIG (GMAW) and Pulsed MIG (GMAW-P) Welding Description Arc Welding Power Source ™ AlumaPower 350 MPa ™ Auto-Line File: MIG (GMAW) Visit our website at www.MillerWelds.com...
