IQ Mixer / Multiplexer
AMB-5, MPX-6, SMX-6
HARDWARE INSTALLATION MANUAL
©1993 by CROWN INTERNATIONAL, INC.
Mailing Address:
Service Department:
P.O. Box 1000
1718 W. Mishawaka Rd
Elkhart, IN 46515-1000
Plant 2 SW
Elkhart, IN 46517
Trademark Notice:
AMB-5,
™
SMX-6 ,
™
MPX-6,
™
Distributed Intelligence,
™
and Algo
™
are trademarks and Crown ,
®
Modified for the
Amcron,
®
IQ System,
®
PCC
®
and PZM
®
are registered trademarks of Crown International, Inc.
World Wide Web
All other trademarks are the property of their respective owners.

Advertisement

Table of Contents
loading

Related Manuals for Crown AMB-5

Summary of Contents for Crown AMB-5

  • Page 1 Algo ™ are trademarks and Crown , ® Modified for the Amcron, ® IQ System, ® ® and PZM ® are registered trademarks of Crown International, Inc. World Wide Web All other trademarks are the property of their respective owners.
  • Page 2 Crown Warranty. ITEMS EXCLUDED FROM THIS CROWN WARRANTY This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts.
  • Page 3 Nor does it cover every possible situation which may arise during installation, operation or maintenance. If you need special assistance, beyond the scope of this manual, please contact our Crown Technical Support Group. Crown Technical Support Group, POB 1000, Elkhart, Indiana 46515-1000 U.S.A.

  • Page 4: Table Of Contents

    3 Hardware Installation ... 10 3.1 Connecting to a Host Computer (Step 1) ... 10 3.1.1 Communication Standards & Parameters 11 3.2 Connecting to the Crown Bus (Step 2) ... 12 3.2.1 Setting the IQ Address ... 12 3.2.2 Crown Bus Wiring ... 13 3.3 Connecting the Audio Ins &...
  • Page 5 RS232 Cable Wiring for a Macintosh ... 11 Selecting the Communication Parameters ... 12 Crown Bus Wiring for Removable Barrier Blocks ... 13 Crown Bus Wiring for 5-pin DIN Input ... 14 Crown Bus Wiring for 4-pin DIN Output ... 14 Crown Bus Wiring Loopš...

  • Page 6: Three Mixer / Multiplexer Models

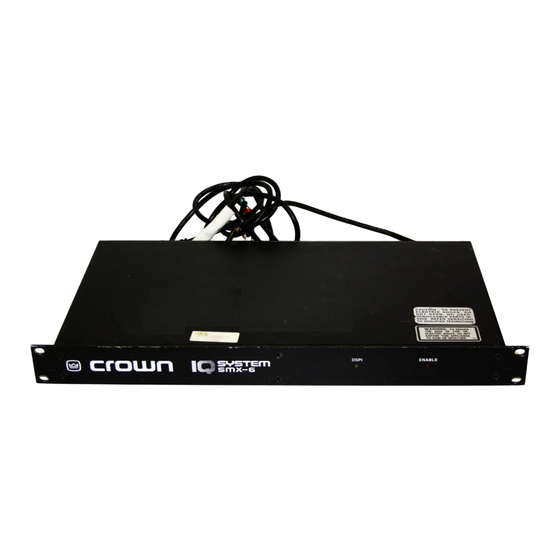

    IQ Mixer / Multiplexer Hardware Installation DSPI ENABLE DSPI ENABLE Fig. 1.1 Three Mixer / Multiplexer Models Page 6 Rev. 0...

  • Page 7: Welcome

    Option 1 allows an AMB-5 , MPX-6 or SMX-6 to con- nect to a host computer and serve as a Crown Bus interface between the computer and other IQ com- ponents.

  • Page 8: Facilities

    2 Facilities AUX Connector A 3-pin male mini-XLR connector is used for remote control of equipment lacking the Crown Bus. A 10 VDC power source is provided to control solid state relays and other logic circuits. The auxiliary con- nector also includes a high-impedance 10 VDC in- put.
  • Page 9 IQ Mixer / Multiplexer Hardware Installation Important: TURN THE UNIT OFF before connecting to the RS232/RS422 (F) or Crown Bus (H) connectors. TURN THE UNIT OFF before changing the settings of the IQ Address (M), Baud Rate & Parity (N) or Communication Standard (O) switches.

  • Page 10: Hardware Installation

    If the unit will be con- nected to the Crown Bus it will not need to be connected directly to a host computer. The following...

  • Page 11: Communication Standards & Parameters

    IQ Mixer / Multiplexer Hardware Installation while it is connected to the Crown Bus, skip ahead to Section 3.2. There are two main communication standards sup- ported by the unit for serial communication with a host computer. They are RS232 and RS422.

  • Page 12: Connecting To The Crown Bus (Step 2)

    Services Dept. (see page 22 for telephone numbers). 3.2 Connecting to the Crown Bus (Step 2) The Crown Bus is a serial communication loop de- signed to transmit IQ commands and data. As a communication standard it is independent of the wiring system used.

  • Page 13: Crown Bus Wiring

    Crown Bus loop. In the previous example, an AMB-5 could be installed in loop 1 and use IQ address 77 because it is not an SMX-6 . A valid IQ address is any number from 1 to 250. Do not use a number higher than 250 since they are reserved for special use.

  • Page 14: Crown Bus Wiring For 5-Pin Din Input

    20 W 120 VAC 60 Hz 20 W Figure 3.9 Crown Bus Wiring ÷Loopsš from Output to Input of Each IQ Component Page 14 Crown Bus 4-pin DIN Output The female Crown Bus connector shown here can be found on the back panel of IQ-INT IIs and most IQ-P.I.P.s.

  • Page 15: Connecting The Audio Ins & Outs (Step 3)

    3.3 Connecting the Audio Ins & Outs (Step 3) IQ mixer/multiplexers have 6 mic/line inputs and 2 stack inputs. (Input 6 of the AMB-5 is dedicated for ambient sensing and is discussed in Section 3.3.2.) For output, there are two audio channels that feed two main and two auxiliary bus outputs.

  • Page 16: Amb-5 Ambient Sensing Input

    3.3.2 AMB-5 Ambient Sensing Input – In addition to its automatic mixing capabilities, the AMB-5 also has the ability to adjust the output level of Channel 1 to the ambient sound level. (Remem- – ber, Channel 2 functions only as an MPX-6 .) It does this with its sensing input (input 6).

  • Page 17: Audio Outputs

    Channel 2. Simply connect each ambient sensing microphone to one of the five regu- lar inputs of the AMB-5 and use the IQ software to assign each of them to Channel 2 only. Switch the sense input to the line-level position (L) and connect the main audio output of Channel 2 to it.

  • Page 18: Stack Inputs

    The stack in jacks (Figure 3.15) enable the audio inputs to be increased by stacking 2, 3, or more mixer/multiplexers to create a 12x2, 18x2 or wider mixer. Use 2-conductor shielded cable to route the signal from the main output of one unit to the stack input (RCA phono jack) of the second unit.

  • Page 19: Connecting Auxiliary Devices (Step 4)

    INPUT 110 VAC Fig. 3.23 Sample Auxiliary System Wiring The solid state relay shown (Crown part number C 7308-7) can be ordered from Crown. The Aux port uses a male 3-pin mini XLR connector which is located above the DB25 connector (Figure 2.1).

  • Page 20: Options

    Crown Bus loop, it is recom- mended that no more than 20 units be connected to an AMB-5 or SMX-6. This is because of the tremen- dous timing demands on their microprocessors. More than 20 IQ components may cause timing problems.

  • Page 21: Crown Local Net Wiring

    Pin 3 Serial Out (–) Pin 7 GND (Optional) Rev. 0 SMX-6 #2 (Optional) (Optional) Pin 9 Serial Out (+) Pin 10 Serial In (+) (All other pins are not used.) Fig. 4.2 Crown Local Net Wiring SMX-6 #3 Page 21...

  • Page 22: Service

    Card in the back of this manual and send it along with proof of purchase and the defective unit to the Crown factory. Enclose a letter explaining the nature of the problem and what service you would like. Include your return shipping address and tele- phone number.

  • Page 23: Technical Information

    Optional output isola- tion transformers can also be added by the factory. 6.1.4 Level Sense Circuits ( AMB-5 and SMX-6 only) The output of each input preamp and each mix amp is monitored by a corresponding level detector.

  • Page 24: D/A Converter

    The processor can then mathematically in- crease detector time constants, perform averaging or other response functions. Page 24 IQ Mixer / Multiplexer Hardware Installation 6.2.5 Auxiliary Port Auxiliary devices such as supplemental cooling fans can be remotely controlled via the AUX output on the unit.

  • Page 25: General Iq Mixer Block Diagram

    SENSOR PRE-AMP BALANCED BUCHANAN CONNECTOR GAIN POT (-12 to +21dB) STACK INPUT 1 STACK INPUT 2 *Sensors not present on MPX-6 **Ambient sensing input on AMB-5 Rev. 0 SUMMING SUMMING MIX BUS 1 MIX BUS 2 ACTIVE BALANCE FROM OUTPUT...

  • Page 26: Specifications

    Controls: DIP switches and a slide switch are ac- cessible from the right side of the unit for setting the communication format, baud rate, parity and Crown Bus address. Each audio input has a 3-position se- lector (mic/line/phantom-powered mic) and a cali- brated gain control.

  • Page 27: A Appendix

    Fig. A.1 IQ Address Switch Settings from 0 to 125 Rev. 0 Remember: No two IQ components of the same type which are connected to the same Crown Bus can have the same address. To use the IQ address tables, simply find the address you want and set the IQ address switch of the IQ mixer/multiplexer card as shown.

  • Page 28: A.2 Iq Address Switch Settings From 126 To 250

    IQ Address Switch Address Fig. A.2 IQ Address Switch Settings from 126 to 250 Page 28 IQ Address Switch Address IQ Mixer / Multiplexer Hardware Installation IQ Address Switch Address Rev. 0...
