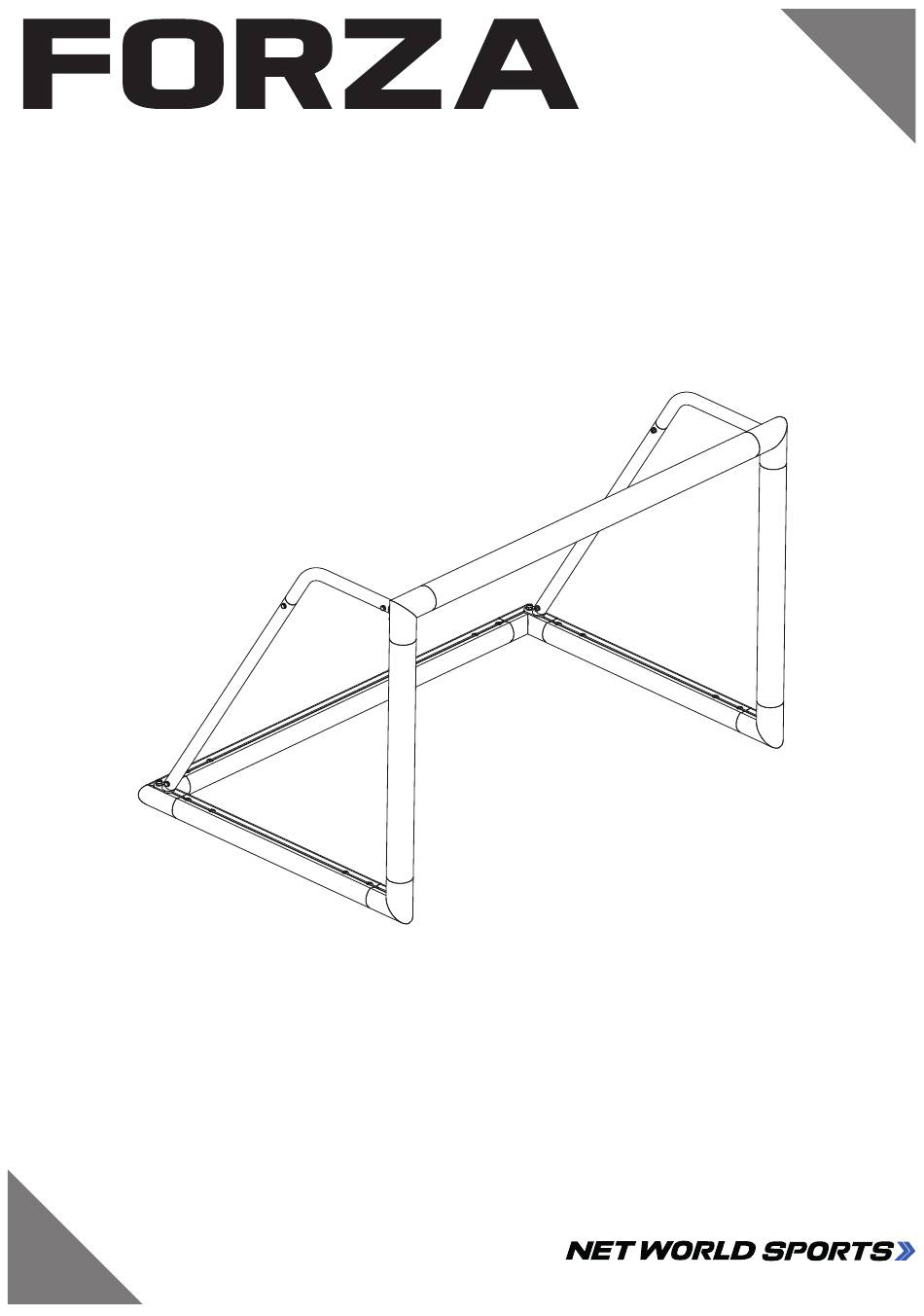

- Page 1 ALU80 FIXED GOAL 1.5x1m www.networldsports.co.uk // +44 (0) 1691 683 807 // cs@networldsports.co.uk www.networldsports.com // 1-866-861-9095 // cs@networldsports.com...
-
Page 2: Warranty
SAFETY STICKERS secure before each use. This includes screws and bolts. Do not use if any part shows signs of defect. FORZA Alu80 Never climb the net or posts as this could result in injury. ·For Football use only. Securely store equipment away from high winds ·Carry out risk assessment &... -
Page 3: Parts List
PARTS LIST Corner 39526 Crossbar/Backbar 39523 Upright corner 39527 Upright/Sidebar 39521 Side Frame Diagonal 39525 Side Frame Top Top Side Frame Fixing Bottom Side Frame Fixing M10 Locknut M8 Locknut 39524 38127 38133 38077 38082 M10x20 M8x50 M8x20 M8 Spring Washer M10 Washer M8 Washer 38049... - Page 4 x2 39527 - Upright corner x4 38071 - M8x20 x4 38099 - M8 Spring washer x1 39523 - Crossbar x2 39526 - Corner x2 39521 - Upright x2 38049 - M10x20 x8 38071 - M8x20 x8 38099 - M8 Spring washer M10x20...
- Page 5 x4 38071 - M8x20 x4 38099 - M8 Spring washer x2 38127 - Top side frame fixing x2 38133 - Bottom side frame fixing x4 38088 - M10 Washer x4 38077 - M10 Locknut...
- Page 6 x2 39524 - Side frame top x2 39525 - Side frame diagonal x6 38064 - M8x50 x12 38094 - M8 Washer x6 38082 - M8 Locknut ATTACHING NET Red tabs Locate the red tabs on the net and ensure they are attached to the front top corners of the goal as shown.
-
Page 7: Inspection Sheet
LL13 9UT Net World Sports offers a 10% discount on replacement products for existing customers. This UK Tel. +44 (0)1691 683807 discount is based on proof of original purchase and evidence of the previous product being US Tel. - Page 8 www.networldsports.co.uk // +44 (0) 1691 683 807 // cs@networldsports.co.uk www.networldsports.com // 1-866-861-9095 // cs@networldsports.com...
