Wire Size and Breaker Size
Warning: All wiring, including installation of the receptacle, must be in accordance with the National
Electric Code, local codes, ordinances, and regulations.
• Use only the wiring size recommended for single outlet branch circuit.
• Use only the type and size fuse of HACR circuit breaker indicated on the unit's rating plate. Proper
current protection is the responsibility of the owner.
Power Supply Kits
265/230/208 Volt
Power
Supply Kits Configuration
RAK3152
RAK3202 Perpendicular
RAK3302 Large Tandem
RAK4157 Direct Connect
RAK4207 Direct Connect
RAK4307 Direct Connect
RAK5157 Direct Connect
RAK5207 Direct Connect
RAK5307 Direct Connect
Electrical Requirements
Recommended branch circuit wire sizes*
Nameplate
maximum circuit
breaker size
15A
20A
30A
AWG—American Wire Gauge
* Single circuit breaker from main box
** Based on copper wire, single insulated conductor at 60° C
Note: Use copper conductors only.

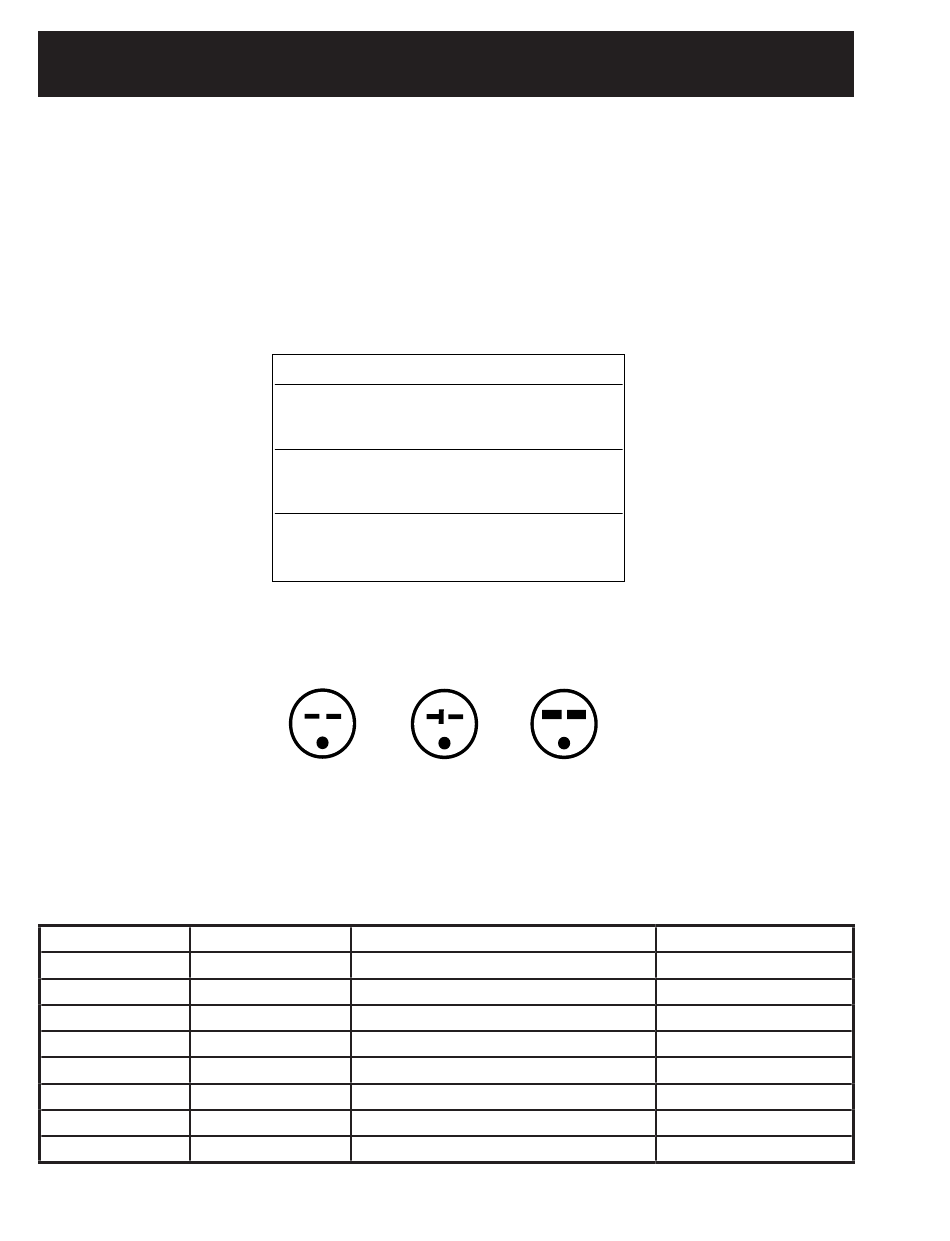

Tandem Perpendicular
15 Amp.
Wall Plug
Circuit Protective Device
Tandem 15 Amp Time Delay Fuse or Breaker
20 Amp Time Delay Fuse or Breaker
30 Amp Time Delay Fuse or Breaker
15 Amp Time Delay Fuse or Breaker
20 Amp Time Delay Fuse or Breaker
30 Amp Time Delay Fuse or Breaker
15 Amp Time Delay Fuse or Breaker
20 Amp Time Delay Fuse or Breaker
30 Amp Time Delay Fuse or Breaker
AWG Wire
size**
14
12
10
Large Tandem
20 Amp. 30 Amp.
– 6 –
Heater Wattage
@ 230/208 volts
2.61/2.19 KW
3.42/2.87 KW
4.81/4.07 KW
2.61/2.19 KW
3.42/2.87 KW
4.81/4.07 KW
2.61 KW
3.42 KW
4.81 KW
(Continued next page)
