Temperature Limiting
Temperature limiting limits the lowest temperature that can be set for cooling and the highest temperature
that can be set for heating. The dip switches are used to control temperature limiting.
Temperature limiting is dependent on the Room Air Sensor (kit). If the Room Air Sensor (kit) is not installed,
temperature limiting will not operate. Temperature limiting is not dependent on the Occupied dip switch, Mo-
tion Sensor (kit), or Door Sensor (kit)

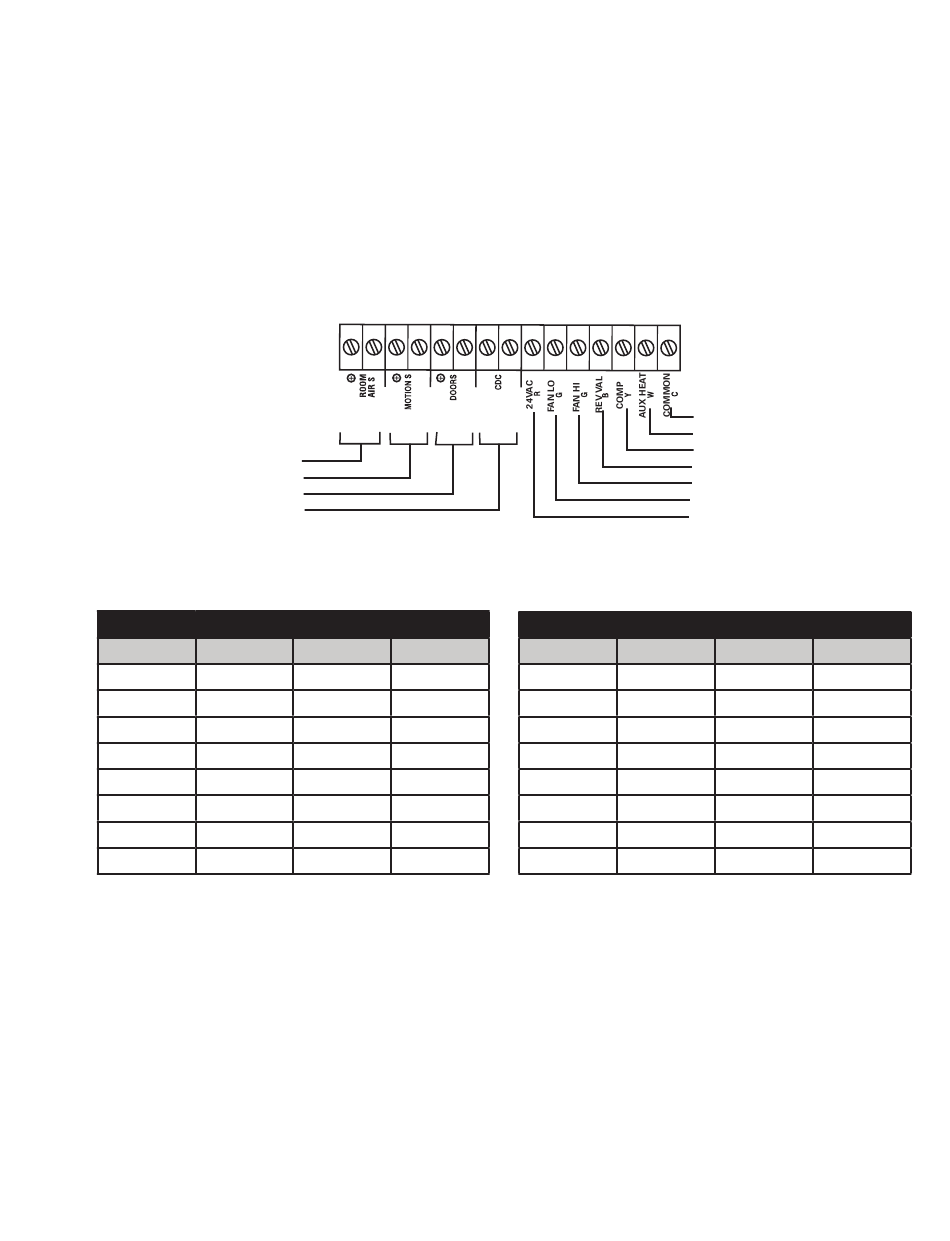

Freeze Sentinel
5RRP $LU 6HQVRU
0RWLRQ 6HQVRU
'RRU 6HQVRU
&HQWUDO 'HVN &RQWURO
Temperature Limiting During Cool Mode
UP DOWN
NONE 1,2,3
1 2,3
1,2 3
2 1,3
2,3 1
1,2,3 NONE
1,3 2
3 1,2
.
Minimum Maximum
60°F 85°F
64°F 85°F
66°F 85°F
68°F 85°F
70°F 85°F
72°F 85°F
74°F 85°F
76°F 85°F
– 15 –
&RPPRQ²*URXQG
:KLWH²+HDWHU
<HOORZ²&RPSUHVVRU
%ODFN²5HYHUVLQJ 9DOYH
*UHHQ²+LJK 6SHHG )DQ
*UHHQ²/RZ 6SHHG )DQ
5HG²9 $& RQO\
Temperature Limiting During HEAT Mode*
UP DOWN
NONE 4,5,6
4 5,6
4,5 6
5 4,6
5,6 4
4,5,6 NONE
4,6 5
6 4,5
* Not applicable to Cool-only models.
Minimum Maximum
60°F 85°F
60°F 80°F
60°F 78°F
60°F 76°F
60°F 74°F
60°F 72°F
60°F 70°F
60°F 65°F
(Continued next page)
