Controls-Terminal Connections

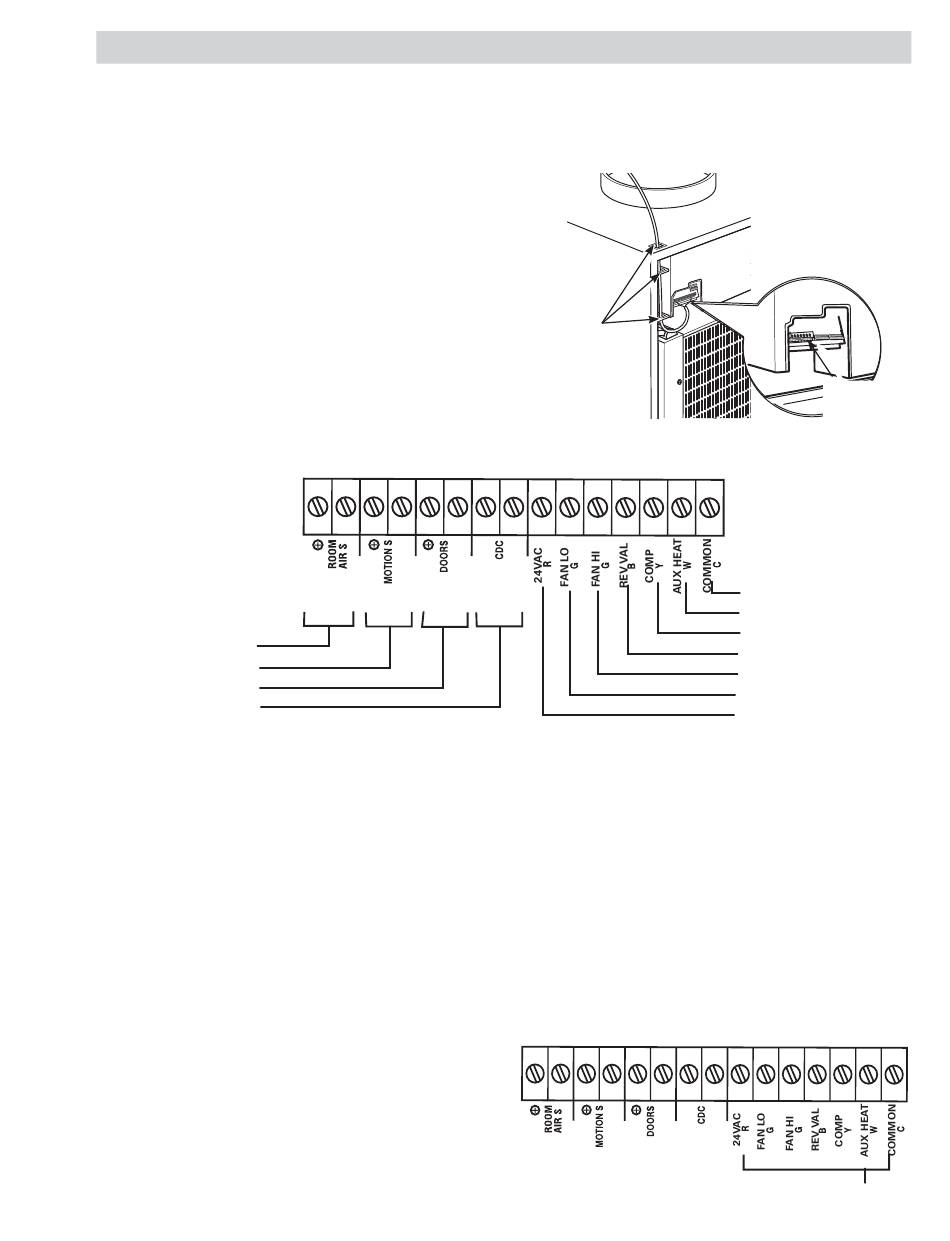

Main Board Terminal Strip
Caution: Improper wiring may damage the Zoneline
electronics. Damage or erratic operation may result.
No common busing is permitted. A separate wire
pair must be run from each separate controlling
switch to each individual Zoneline.
The terminal connections are located behind the
front case panel.
Insert the building hookup wires into the bottom of
the terminal and tighten screw securely to make the
desired connections.
Route any wires from the terminal connections
through the case loop.
5RRP $LU 6HQVRU
0RWLRQ 6HQVRU
'RRU 6HQVRU
&HQWUDO 'HVN &RQWURO
Remote Thermostat Control
The unit is controlled by an externally mounted, remote thermostat.
The Zoneline thermostat connections provide 24 VAC only. If using a digital/electronic wall thermostat, it
must be set to the 24-VAC setting. Refer to the thermostat installation instructions for details.
Note: Some thermostats can be programmed to energize the reversing valve in heating mode or cool mode.
If the thermostat is not programmed correctly, the unit will heat when the thermostat is set to cool and cool
when the thermostat is set to heat. Refer to the instructions provided with the thermostat for thermostat
programming procedures. Also refer to the Reversing Valve section of the Components chapter for more
information.
Hydronic Heating (Requires Hydronic Heating
Kit- RAVHW1, RAVHW2, or RAVHW3)
Required connections for hydronic heating kit.
Note: R, W, and C terminal connections will also be
connected to the remote thermostat if applicable.
J
5RXWH ZLUHV
WKURXJK
ZLUH JXLGHV
– 13 –
7HUPLQDO
FRQQHFWLRQV
&RPPRQ²*URXQG
:KLWH²+HDWHU
<HOORZ²&RPSUHVVRU
%ODFN²5HYHUVLQJ 9DOYH
*UHHQ²+LJK 6SHHG )DQ
*UHHQ²/RZ 6SHHG )DQ
5HG²9 $& RQO\
+\GURQLF +HDWLQJ
