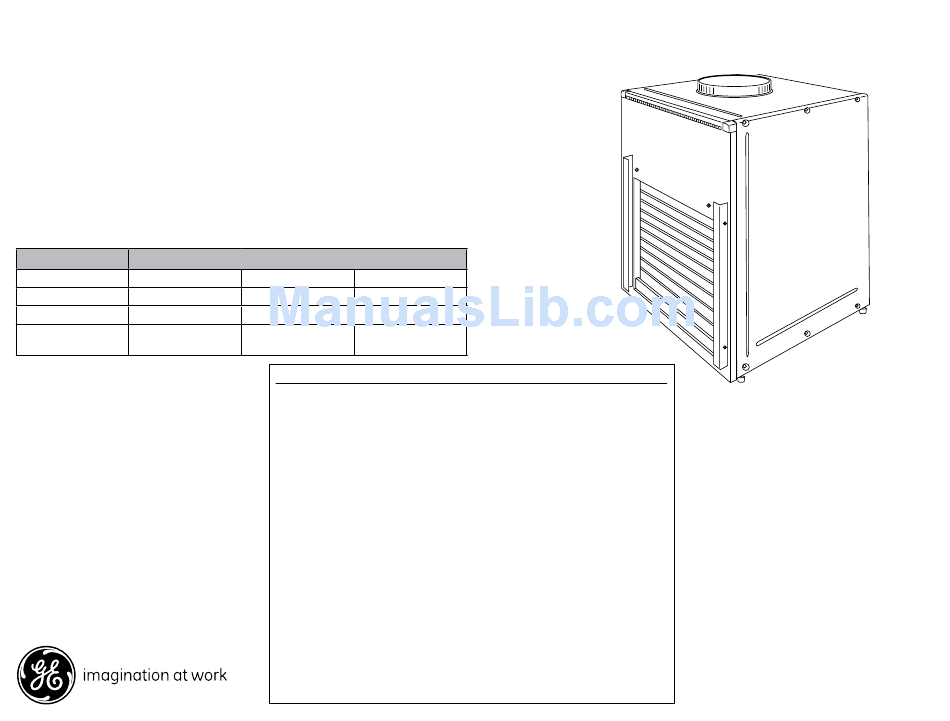

GE AZ85E09DAC Dimensions And Installation Information

AZ85E09DAC
GE Vertical Packaged Terminal Air Conditioner
®
Dimensions and Installation Information (in inches)
Minimum Clearances:
Front
• Allow 4 inches in front of unit. When determining closet depth, note that plenum
may protrude into closet up to 4 inches, depending on exterior wall depth.
Sides
• Allow 3 inches on each side of unit.
• For side access closets only: Allow 5 inches clearance to front of unit.
Platform
• An 8"-12" high, field-supplied platform is recommended for drain access.
230/208 Volt
Power Connection Kit RAK3152
Heater KW 2.55/2.09
Min. Circuit Amps 15
Recommended 15 Amp Time Delay
Protective Device Fuse or Breaker
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center ® service,
800.626.2000.
Line Cord Connected Units
RAK3202 RAK3302
3.45/2.83 5.00/4.10
20
20 Amp Time Delay 30 Amp Time Delay
Fuse or Breaker Fuse or Breaker
ZONELINE WARRANTY
®
WhAT IS COvERED
FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of
charge, parts and service labor on
site to repair or replace any part
of the Zoneline that fails because
of a manufacturing defect.
ADDITIONAL FOUR-YEAR
WARRANTY
For an additional four years from
the date of original purchase,
or
™
we will provide, free of charge,
parts and on-site service labor to
repair or replace any part of the
sealed refrigerating system (the
compressor, condenser, evaporator
and all connecting tubing) that
fails because of a manufacturing
defect.
*SEE WRITTEN WARRANTY FOR DETAILS
23 1/8" W
30
*
LIMITED 2ND ThROUGh
5Th YEAR PARTS WARRANTY
For the second through the
fifth year from date of original
purchase, General Electric
will provide, free of charge,
parts that fail as a result of a
manufacturing defect. Parts
covered are fan motors, switches,
heater, heater protectors,
compressor overload, solenoids,
circuit boards, auxiliary controls,
thermistors, frost controls,
capacitors and varistors. This is a
limited parts-only warranty, and does
not include labor or transportation
to and from the service shop.
All warranty service will be
provided by our Factory Service
Centers or by our authorized
Customer Care servicers
®
during normal working hours.
32 1/4" H
23 1/8" D
Specification Created 1/10
