GE AZ85E09DAC Technical Service Manual page 38

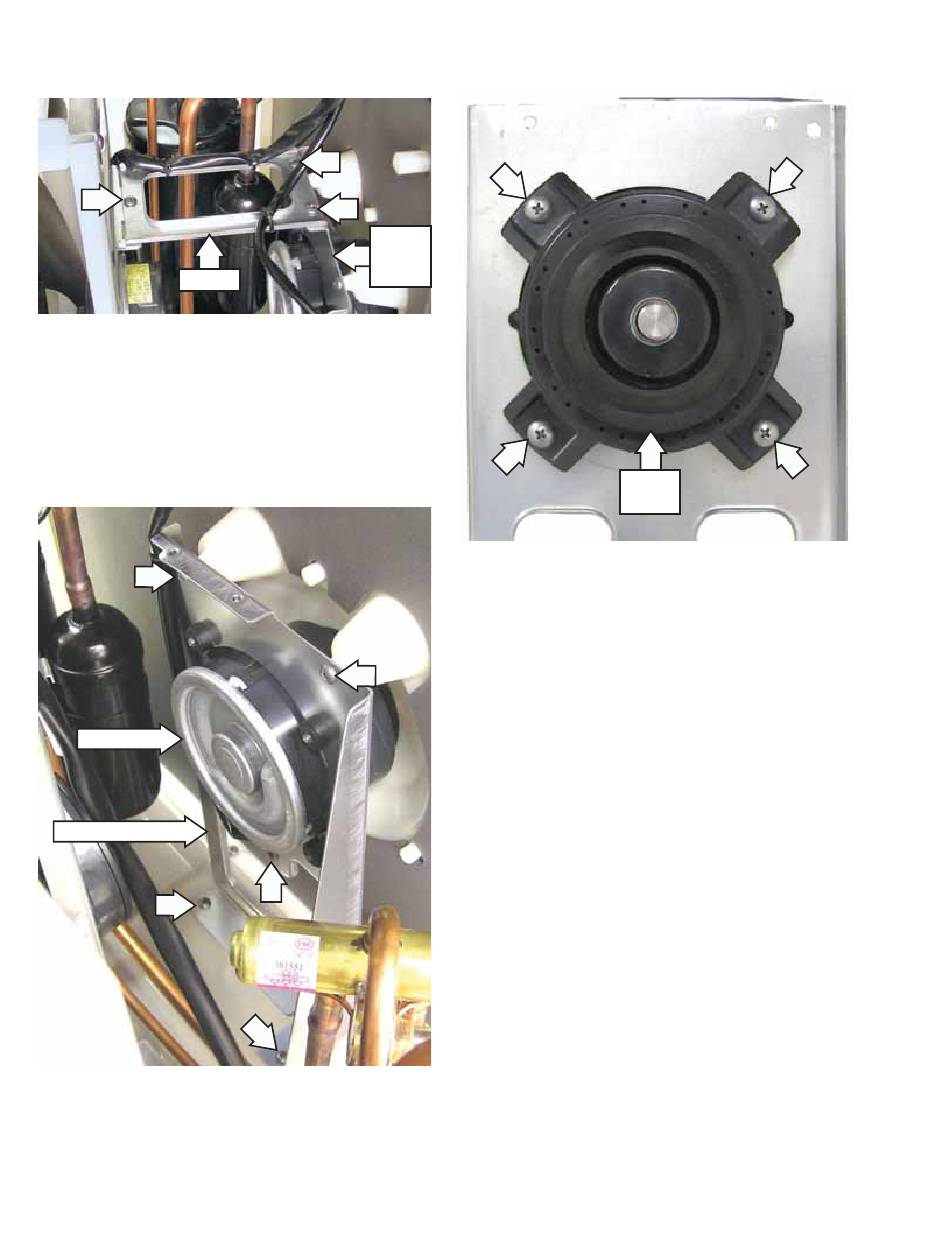

11. Remove the 3 Phillips-head screws and the
brace from the indoor fan motor bracket.
Brace
12. Remove the 3 Phillips-head screws that attach
the fan motor bracket to the fan housing.
13. Remove the 2 Phillips-head screws that attach
the fan motor bracket to the basepan, then
maneuver the fan motor and bracket out from
the unit.
Fan Motor
Fan Motor Bracket
14. Remove the 4 Phillips-head screws, motor, and
motor rubber from the fan motor bracket.
Fan
Motor
Bracket
– 38 –
Motor
Rubber
