i-PRO WJ-NX510K Series Installation Manual

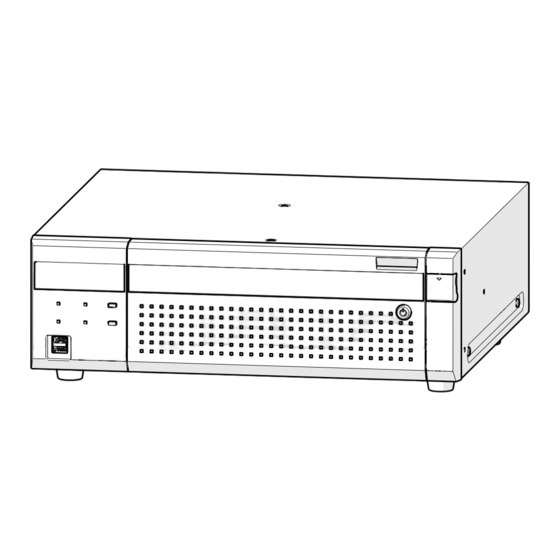

Network disk recorder
Hide thumbs Also See for WJ-NX510K Series:
Table of Contents

Advertisement

Quick Links

Download this manual
WJ-NX510K Series refer to WJ-NX510K, WJ-NX510KG and WJ-NX510KGV.
WJ-NX410K Series refer to WJ-NX410K, WJ-NX410KG and WJ-NX410KGV.
The Operating Instructions and Important Information is on our support website
(https://i-pro.com/global/en/surveillance/documentation_database).
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Network Disk Recorder
WJ-NX510K Series
Model No.
WJ-NX410K Series
Installation Guide
For professional use only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WJ-NX510K Series and is the answer not in the manual?

Questions and answers

Related Manuals for i-PRO WJ-NX510K Series

Summary of Contents for i-PRO WJ-NX510K Series

  • Page 1 WJ-NX510K Series Model No. WJ-NX410K Series For professional use only WJ-NX510K Series refer to WJ-NX510K, WJ-NX510KG and WJ-NX510KGV. WJ-NX410K Series refer to WJ-NX410K, WJ-NX410KG and WJ-NX410KGV. The Operating Instructions and Important Information is on our support website (https://i-pro.com/global/en/surveillance/documentation_database). Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

  • Page 2: Table Of Contents

    Contents Introduction ..........................4 Standard accessories ................................4 About the user manuals ................................4 About the symbol mark ................................4 About HDD Unit ..................................5 About Additional Camera Kit (option) ............................5 About Secure Communication Kit (option)..........................5 When the product is accessible from the Internet ........................5 Open Source Software ................................
  • Page 3 Contents (continued) Important Information Refer to the Important Information on our support website for the following items. Safety Information · Important safety information Introduction · Preface · System requirements for a PC · Network security, etc. Precautions · Precautions for use Major operating controls ·...

  • Page 4: Introduction

    Contains descriptions of how to operate functions frequently used. Unless otherwise specified, the descriptions of installation, connection, etc. in this manual are based on the WJ-NX510K Series as an example and the descriptions of the screens are based on the WJ-NX310K Series.

  • Page 5: About Hdd Unit

    Introduction (continued) About HDD Unit To install a hard disk drive in the recorder, it is necessary to assemble an HDD unit (encase the hard disk drive in the HDD canister). The HDD unit is designed to easily install/remove the hard disk drive in/from the recorder. Contact your dealer about purchasing, installing, and replacing the hard disk drives.

  • Page 6: Open Source Software

    "Click here for more information on the OSS used in this product." and then read the information displayed. • Please note that i-PRO Co., Ltd. shall not respond to any inquiries regarding the source code. AVC Patent Portfolio License...
  • Page 7 Introduction (continued) Heat dissipation Grounding To prevent this product from overheating, heed the Confirm that the wire is connected from the SIGNAL GND following. Failure to observe this may cause fire or trouble. terminal to earth ground. • Do not block the cooling fan outlet or the ventilation holes A grounding connection must be made before connecting with a wall, rack, cloth, etc.

  • Page 8: Basic Operations

    Introduction (continued) Basic operations This section explains operation of a mouse and the soft keyboard, and setting screen only. The recorder can be operated using the mouse (included) connected to the mouse connection port on the front side of the recorder.

  • Page 9: Setup Menu

    Introduction (continued) Setup menu Configuration of each setting item in the setup menu should be completed in advance to use this recorder. The setup menu has the following levels for the setting items. On "Easy Start", the minimum settings required to operate the recorder will be performed, but other settings will remain default.

  • Page 10: Operations Flow

    Operations flow • Professional knowledge on and experience in network and the HDD are required for the settings and changes of the operation. • The main monitor is required for the settings. * The settings can be done through a web browser on the PC (Refer to the Operating Instructions).
  • Page 11 Operations flow (continued) Remove the "HDD unit holding bracket" of the recorder and Installation of HDD unit take out the HDD unit. ☞ Page 31 The removed "HDD unit holding bracket" is necessary when transporting the recorder. Keep it in an appropriate place. Initialize the hard disk drives.

  • Page 12: Obtain The License (Registration Key)

    1 Obtain the license (Registration Key) Keep the "Activation Key Card" included in the recorder nearby. Obtain the "Registration Key" of the recorder by following the instructions on the included Activation Key Card. To increase number of connected cameras, get the registration key number of the additional camera license according to the Additional Camera Kit (option).

  • Page 13: Rack Mounting

    2 Rack mounting Install the recorder in an EIA standard 19-inch rack (Depth: Step 3 550 mm or more). Place the rack mounting brackets (included) on both sides of the recorder and fix them with the rack Note: mounting bracket fixing screw (included) (×6). •...

  • Page 14: Position In The Rack

    2 Rack mounting (continued) Position in the Rack This is an example where the recorder and the extension unit (WJ-HXE410, WJ-HXE400, max 5 units) are installed in the rack. Connect the recorder and the extension unit using the connection cable (1.5 m {4 feet 11 inches}) provided with the extension unit. (☞...

  • Page 15: Connections

    3 Connections Connection of cameras and a mouse Up to 128 cameras (NX510), 64 cameras (NX410) can be connected to the Camera/PC port of the recorder via a PoE Network switch (locally procured). Use a Ethernet cable (straight) to connect the recorder and the PoE Network switch. Connect the included mouse to the mouse connection port on the front side of the recorder.

  • Page 16: Connection Of Monitors

    3 Connections (continued) Connection of monitors The main monitor (HDMI), which displays live images as well as playback images and setting menus, is connected to the HDMI (AV MAIN) terminal using an HDMI cable (locally procured). The sub monitor (HDMI) is also connected to the HDMI (VIDEO SUB) terminal using an HDMI cable (locally procured).

  • Page 17: Connection Of A Pc

    3 Connections (continued) Connection of a PC When PC and the camera are in the same network When the PC and the camera are configured on the same network, connect the PC to the Camera/PC port. Recorder IP address: 192.168.0.x (except 0, 1, 250 and 255) IP address: 192.168.0.250 Ethernet cable (locally procured:...
  • Page 18 3 Connections (continued) When PC and the camera are in different networks When the PC and the camera are configured on different networks, connect the PC to the PC port. Recorder IP address: 192.168.1.x (except 0, 1, 250 and 255) Subnet mask: 255.255.255.0 Default gateway: 192.168.1.1 [Camera/PC port]...

  • Page 19: Connection Of Extension Units

    3 Connections (continued) Connection of extension units Up to 5 extension units can be connected with a single recorder. Connect the recorder and the extension unit using the connection cable included in the extension unit. Connect the extension units as shown in the illustration below. Refer also to the manuals of the extension unit.

  • Page 20: How To Use The Terminals Of The Alarm/Control

    3 Connections (continued) How to use the terminals of the ALARM/CONTROL The ALARM/CONTROL connectors on the back is used when connecting an external device such as a sensor that outputs alarm signals or when installing an external alarm device such as a buzzer or a lamp outside. Insert the unarmored cable into the included terminal plug (12 pin) and then mount it on the ALARM/CONTROL connector on the back.
  • Page 21 3 Connections (continued) Connection example for emergency recording When the external switch is turned on, emergency recording will start. Recording time and recording rate for emergency recording differ according to the settings of "Emergency rec." on the setup menu. (Refer to the Operating Instructions.) (Emergency recording input) External switch (Signal ground)
  • Page 22 3 Connections (continued) Connection with an uninterruptible power system (UPS) This is an example of a connection with the uninterruptible power system (hereinafter, UPS) to be installed to protect from a power outage. When a signal is supplied to the outage detection input terminals from the UPS, internal processing (stops recording safely) will start to shut off the power supply for the recorder.

  • Page 23: How To Use The Terminals Of The Alarm In

    3 Connections (continued) How to use the terminals of the ALARM IN ALARM IN terminals on the back are used when connecting an external device such as a sensor that outputs alarm signals. Insert the unarmored cable into the included terminal plug (16 pin) and then mount it on the ALARM IN terminal on the back. * The cable should be a single or twisted wire with AWG 26~16 and an exposed length of 9 mm {11/32 inches}.
  • Page 24 3 Connections (continued) Alarm connection example When a signal output from the other device is supplied to the terminal A1~A16, B1~B16 (Alarm input 1 to 32), recording or an alarm action will be performed in accordance with the settings. When an alarm device such as a buzzer, a lamp, etc., is installed outside, connect them to the terminal C2 (Alarm output 2).

  • Page 25: Time And Polarities Of The Alarm/Control Connector

    3 Connections (continued) Time and polarities of the ALARM/CONTROL connector Terminal name Active Time Remarks Alarm input 100 ms or more N.O.: L active N.C.: H active Alarm reset input 100 ms or more L active Emergency recording input 100 ms or more L active Outage detection input 5 s or more...

  • Page 26: Turn On The Devices

    4 Turn on the devices Turn on the power of the recorder Turn on the power of the recorder. First, turn on the power of the monitor. When using the recorder for the first time, register the license for the recorder. (☞ Page 28) Important: •...

  • Page 27: (When Turn Off The Power Of The Recorder)

    4 Turn on the devices (continued) Step 2 Step 3 The administration registration window is displayed on If the license for the recorder has not been registered the main monitor. yet, the message asking you to register the "Registration Key" will be displayed after the completion of the system check and the administrator registration.

  • Page 28: Register The License (Registration Key)

    5 Register the license (Registration Key) When using the recorder for the first time, using the secure function, or increasing the number of the cameras to be connected, it is necessary to register the recorder license (Registration Key). Important: • In the following cases, the recorder must be rebooted by clicking the [Restart] button. The licenses will not be effective until the recorder is rebooted.
  • Page 29 5 Register the license (Registration Key) (continued) Step 7 Enter the "Registration key" for the recorder in the "Registration key" field using the on-screen keyboard, and click the [Registration] button. → The "Registration key input" window will return to the registration window.

  • Page 30: Assemble Hdd Unit

    6 Assemble HDD unit To install a hard disk drive in the recorder, it is necessary to assemble an HDD unit (encase the hard disk drive in the HDD canister). The HDD unit is designed to easily install/remove the hard disk drive in/from the recorder.

  • Page 31: Installation Of Hdd Unit

    7 Installation of HDD unit Install HDD unit in recorder The illustration on this page is schematic. Details of the shape are omitted. It is possible to install the HDD units without stopping the operation (except when RAID1/RAID5/RAID6 mode is in operation). Do not use an electric screwdriver to avoid impact on the HDD.

  • Page 32: Install Hdd Unit In Extension Unit

    7 Installation of HDD unit (continued) Install HDD unit in extension unit Install the HDD units in the extension unit as in the recorder. The illustration on this page is schematic. Details of the shape are omitted. It is possible to install the HDD units without stopping the operation (except when RAID1/RAID5/RAID6 mode is in operation). Attach an even number of HDDs if it is being operated in RAID1 mode, attach three or more HDDs if it is being operated in RAID5 mode, and attach four or more HDDs if it is being operated in RAID6 mode.

  • Page 33: Initialize The Hard Disk Drive

    8 Initialize the hard disk drive Open the "HDD management" page from the setting screen and format the HDD. Step 1 Step 4 Click the [HDD management] button of the setup Click "Execute" next to "Format HDD" on the "HDD menu - the "Advanced setup"...

  • Page 34: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Symptom Cause/solution Ref.
  • Page 35 Troubleshooting (continued) Symptom Cause/solution Ref. pages The "Thermal error" indication • The ambient operating temperature is 0 °C to +45 °C. The – is displayed on the main "Thermal error" is displayed based on the internal thermal monitor. information of the HDD. If the "Thermal error" indication is displayed, it is recommended to change the installation environment so that the ambient temperature is maintained at approx.
  • Page 36 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands Tokyo, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 Ls1023-1103 Printed in China...
