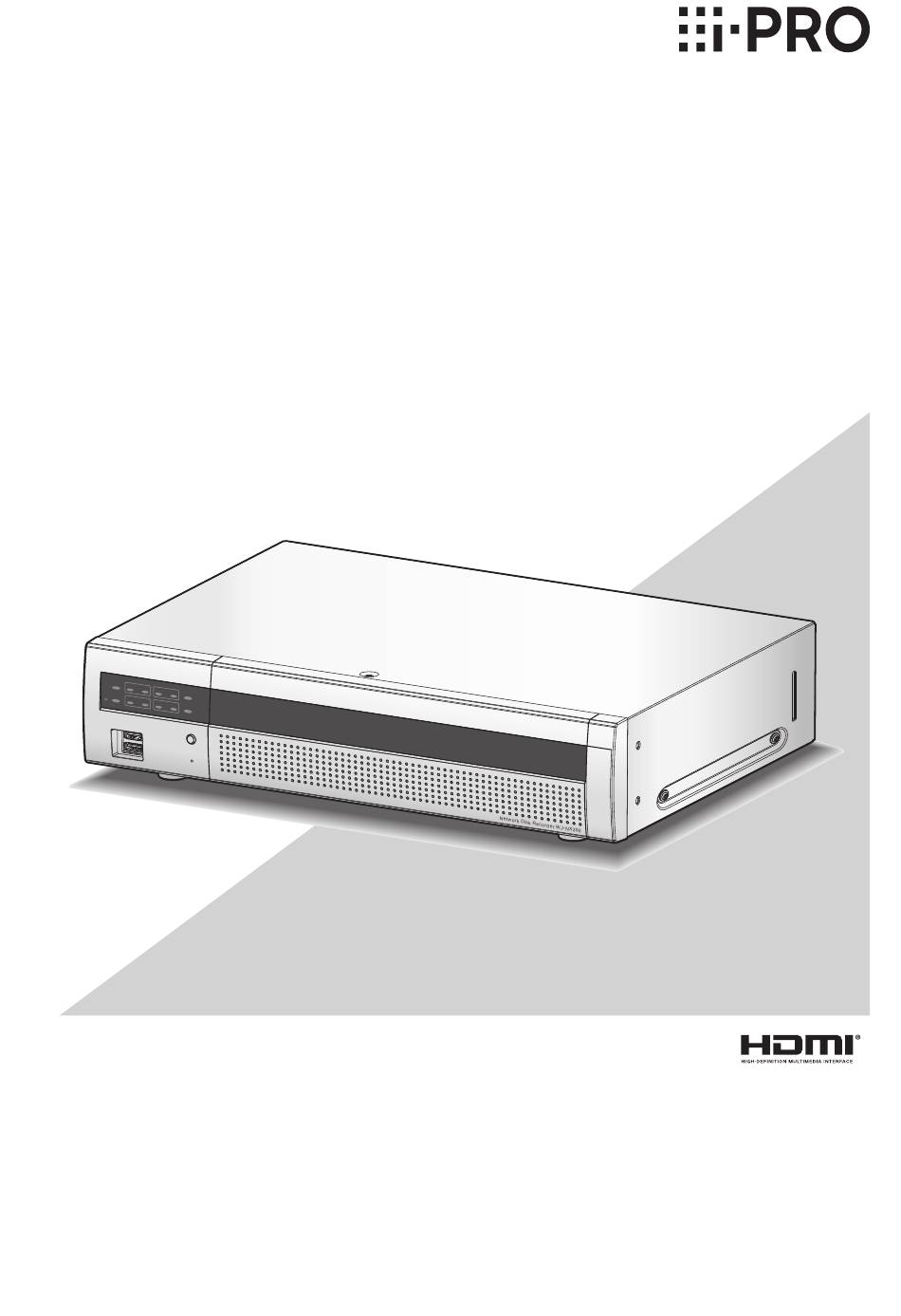

- Page 1 Important Information Network Disk Recorder WJ-NX300K Model No. WJ-NX300K/G Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
-
Page 2: Safety Information
MAINS SWITCH nor an all-all pole circuit breaker, the installation shall be carried out in accordance For U.S. and Canada: with all applicable installation rules. WJ-NX300K • The connections should comply with local electrical code. For Europe and other countries: WJ-NX300K/G... - Page 3 Safety Information (continued) For U.K. FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amp and that it is approved by ASTA or BSI to BS1362.
-
Page 4: Important Safety Instructions
Safety Information (continued) Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation holes. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Table Of Contents
Contents Safety Information ........................2 Important safety instructions ..............................4 Introduction ..........................6 Preface ...................................... 6 Features ....................................6 Standard accessories ................................8 About the user manuals ................................8 System requirements for a PC ..............................9 Trademarks and registered trademarks ............................ 9 GPL/LGPL .................................... -
Page 6: Introduction
Introduction Preface The network disk recorders WJ-NX300K and WJ-NX300K/G (hereinafter, recorders) equipped H.265 CODEC and are designed for use within a H.265 surveillance system, and record images/audio from up to 32 network cameras (hereinafter, cameras) on the hard disk drives (HDDs). Number of cameras to be used in the system (16 cameras in basic system) can be increased to 32 (maximum) by purchasing the Additional Camera Kit (WJ-NXE30, WJ-NXE30W). - Page 7 Introduction (continued) System Configuration Main monitor (HDMI) Sub monitor (HDMI) Sub monitor (BNC) The sub monitor only displays live images. Powered speaker Network camera (× 32 max.) Network...
-
Page 8: Standard Accessories
Adobe web site and install it. "NX300" shown in the instructions and illustrations used in these operating instructions indicate the WJ-NX300K, WJ-NX300K/G. Refer to "readme.txt" on the provided CD-ROM for further information about the dedicated software (option) that receives and displays the event and error information, compatible cameras and their versions. -
Page 9: System Requirements For A Pc
XP compatibility mode is unavailable. Important: • Refer to our support website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information) for information about the latest operation verification of the supported operating systems and web browsers. • If using a PC that does not meet the above system requirements, it may cause problems such as slow imaging or the browser becomes inoperable. -
Page 10: Gpl/Lgpl
Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;... -
Page 11: Network Security
Introduction (continued) Network security As you will use this unit connected to a network, your attention is called to the following security risks. ① Leakage or theft of information through this unit ② Use of this unit for illegal operations by persons with malicious intent ③... -
Page 12: About The Business Intelligence Function (Option)
Introduction (continued) About the business intelligence function (option) Registering the license of the additional business intelligence kit WJ-NXF02, WJ-NXF02W (option) allows the recorder to detect faces whose features are similar to the registered faces by comparing face images in live image with the registered face images (face matching function). -
Page 13: Precautions
Precautions Refer installation work to the dealer. Grounding Installation work requires technique and experiences. Failure The power plug of this product is 2-prong plug equipped to observe this may cause fire, electric shock, injury, or dam- with a grounding terminal. Use this product after confirming age to the product. - Page 14 • When hard disk drive trouble occurs, replace it immedi- ately. Contact your dealer about servicing. (WJ-NX300K), 220 V - 240 V AC 50 Hz/ 60 Hz (WJ-NX300K/G). Do not connect to the outlet that provides the power to equipment that requires a measurable amount of power About external storage devices (External HDD and (such as a copy machine, air conditioner, etc.).
- Page 15 Disclaimer of warranty on recoded data i-PRO Co., Ltd. assumes no responsibility or liability, directly or indirectly, for failure of recording or editing including loss of data due to any reason or cause which does not exclude repair or maintenance of this product regardless whether the subject is hard disk or other parts.
-
Page 16: Major Operating Controls And Their Functions
Major operating controls and their functions Front view ①② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ① Operation indicator [OPERATE] In the RAID 5 mode, it indicates that the respective hard disk drive is the first faulty drive. Lights when the power is on. -
Page 17: Inside The Front Cover
Major operating controls and their functions (continued) ⑨ Buzzer stop button [BUZZER STOP] Press this button to stop the buzzer that started sound- ing at an alarm/error occurrence. Refer to the Operating Instructions (PDF) for further information about alarms and errors. ⑩... -
Page 18: Rear View
Refer to ☞ page 19 for fitting. (HDMI) will be output from this connector. The default is NTSC output for WJ-NX300K and PAL ⑤ Copy port (USB3.0) [COPY] output for WJ-NX300K/G. The setup menu will not be Connect an external storage device (external Hard disk displayed. - Page 19 Major operating controls and their functions (continued) How to use the cable clamp (for ⑮ Power cord clamp mount fixing the terminal block cables) ⑯ SIGNAL GND terminal [SIGNAL GND] Connect this terminal with the SIGNAL GND terminals of the devices in the system for signal ground. When operating the recorder and the devices in the system without signal ground, noise may be produced.
-
Page 20: User/Host Management
User/Host management It is necessary to register users who operate the recorder and hosts (PC) that accesses the recorder via a network such as a LAN. Up to 32 users can be registered. It is possible to register the following for the user information. Item Description User name... -
Page 21: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Symptom Cause/solution Ref. - Page 22 Troubleshooting (continued) Symptom Cause/solution Ref. pages The "Thermal error" indication • Check if the fan is malfunctioning. Operating is displayed on the main Instructions monitor. • Check if the recorder ventilation holes or cooling fan are blocked, Installation and also check for dust collected around the ventilation holes. Guide •...
-
Page 23: Specifications
Specifications • General Power source: WJ-NX300K: 120 V AC, 60 Hz WJ-NX300K/G: 220 V to 240 V AC, 50 Hz/60 Hz Power consumption: WJ-NX300K: 72 W (144 VA) WJ-NX300K/G: 72 W (144 VA) Ambient operating temperature: Main body: +5 °C - +45 °C {41 °F - 113 °F} Mouse (accessory): +5 °C - +40 °C {41 °F - 104 °F}... - Page 24 Secure Communication Kit (license for 16 cameras) WJ-NXS16, WJ-NXS16W Secure Communication Kit (license for 32 cameras) WJ-NXS32, WJ-NXS32W Additional Business Intelligence Kit WJ-NXF02, WJ-NXF02W Additional RAID kit WJ-NXR30, WJ-NXR30W Extension Unit WJ-HXE400 (for WJ-NX300K) WJ-HXE400/G (for WJ-NX300K/G) Rack mount bracket WV-Q202...
- Page 25 For Europe and other countries: i-PRO Co., Ltd. i-PRO Americas Inc. Fukuoka, Japan https://www.i-pro.com/ https://www.i-pro.com/ i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, Cambridgeshire CB23 6DP Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands ©...
