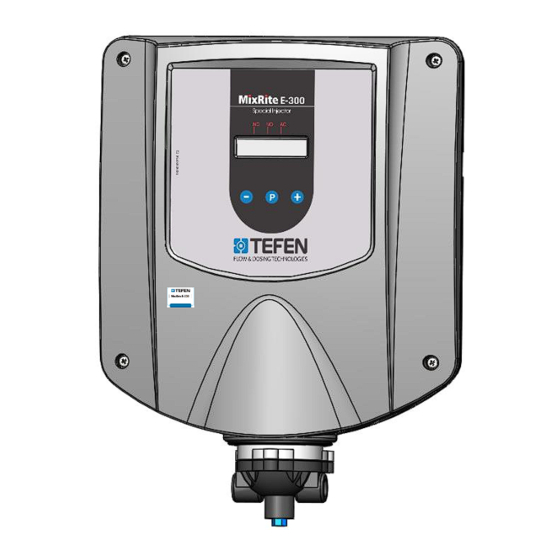

- Page 1 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 1 of 16 Page 1 of 16...
- Page 2 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 2 of 16 Table of Contents P1 - Technical data P2 - Kits list P3 - Assembly Instructions P4 - Installation P5 - Set pump parameter...
- Page 3 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 3 of 16 Technical data Category Details • V – 12 DC • P – 80W Pump • A – 7 A • 220 AC Power Supply •...
- Page 4 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 4 of 16 MixRite E-300 STD KIT Qty. Descriptions Part No. Image 1.00 FEMALE PIPE COUPLING - 1/2"" 12010308088 1.00 FEMALE PIPE COUPLING - 3/4" BLUE 12010312128 1.00...
- Page 5 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 5 of 16 MixRite E-300 PVDF KIT Assembly Instructions Page 5 of 16...
- Page 6 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 6 of 16 General Dimensions (Back view) Irrigation Controller Flow Note Check the check valve position (up) Page 6 of 16...
- Page 7 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 7 of 16 Wiring Instructions: a. Ensure pump is disconnected from mains. Do not set wires under "live current" b. Remove the front cover with 4 Phillips Screws.
- Page 8 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 8 of 16 Installation Controller writing connection according to Controller output Controller I/O type Card connection Pump adjustment I/O Type 12-24 NC - DC-NC Normally close Conn.
- Page 9 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 9 of 16 Power Connection • 110 VAC, 220 VAC connect the plug to the power • Connect the 12VDC power supplier output to connector "J1".
- Page 10 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 10 of 16 Set pump parameter 1- Once connected to the mains appears on the display “OFF” 2- Adjust the code: 2.1- The Default value is DC NC (Normally Closed) for the first activation.
- Page 11 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 11 of 16 b- DC NO (Blue dot lighted in the "Tens" digit) c- AC (Blue dot lighted in the "Unit’s" digit) 2.3 - Press the button (+) to select the chosen mode.
- Page 12 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 12 of 16 4- Prime button: Press the button (P) continuously to active the motor at 90% of the maximum power (2). 5 - If the display shows 0%, it becomes OFF after 20 seconds 6- Set the pump value according to water line presser and dosage flow requirements.
- Page 13 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 13 of 16 ElectroRite – Pump Spare parts Item Image Part No. Descriptions 38000000254 Power supply 38000000273 Controller STD for electric pump 38000000356 MOTOR GASKET...
- Page 14 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 14 of 16 Operation and fault warnings Fault warnings display: There are three main causes of pump failures: 1- 12 A Over-Current (Electrical Overload): a- The Motor switched OFF and Led turned Red.
- Page 15 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 15 of 16 Maintenance: Period Issue Week Cleaning the suction filter Check the check valve position (up) 2 week Check the tube is clean 6 months...
- Page 16 Mix Rite E-300 User guide Document no: P.I - 10.26/05 Rev: Effect from: 02/02/2020 Page 16 of 16 Additive flow rate E-300 Value Value Value Page 16 of 16...
