Summary of Contents for tefen InjectRite

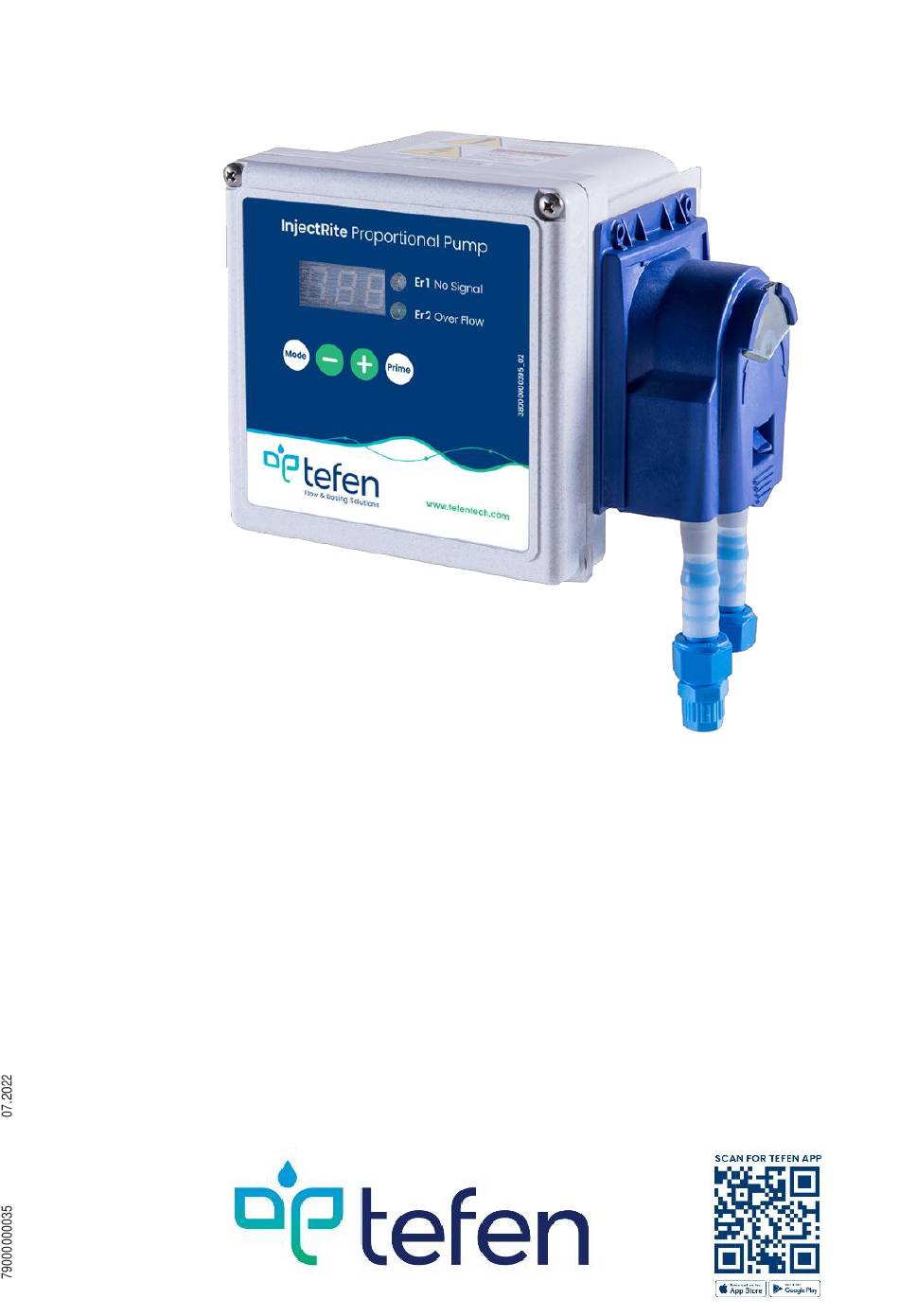

- Page 1 InjectRite Proportional Peristaltic Pump User Guide...
-
Page 2: Technical Details
1. Technical Details Pump Feature EU Version USA Version Dosage Rate 1:256, 200, 128, 100, 64, 50 0.25, 0.5, 0.75, 1.0, 1.25,1.5,1.75,2.0 Power Plug 220V 110V , 2.0 % Water Meter Input* 1 pulse per 1 liter 1 pulse per 0.1 or 1gallon gallon Tube Material Santoprene... -
Page 3: Vertical Position
2. Assembly Instructions Power Cable Connection to Vertical position the water meter Water Inlet Water outlet NOTE: Examine check valve position 2.1. Install the pump 2.2. Attach the 2 core cables, outside the pump, to the water meter output, by cables color code 2.3. - Page 4 Display Input units Pulse / 1 Gallon Pulse / 0.1 Gallon Pulse / 1 Litter + - + - 2.6.3. Switching between options by pressing: MODE Set the dosage rate as follow: 2.6.4. Press Mode 2.6.5. Change the dosage rate by pressing the - / + buttons. 2.6.6.
-
Page 5: Troubleshooting
3. Troubleshooting 3.1. The pump is equipped with an error detection feature. When encountering an error, the top LED blinks red, and an error message is displayed. 3.2. Common Errors and Solutions: Error Display Possible Cause Solution No signal Top LED blinks red, and No water flow The pump will from water... -
Page 6: Pcb Connectors
4. PCB Connectors A deep switch connects the dry pulse from the water meter to the control water system. WM1, CM1 – Connectors for dry pulse signals from the water meter into the pump WM1-black CM1- white RR1, RR2 - connectors for dry pulse signals from the pump into the controller/ or to the second pump, to the WM1, CM1 connectors... - Page 7 Single Installation InjectRite Parallel Installation InjectRite InjectRite Kibbutz Nahsholim 3081500, Israel Page | 7 Tel. 972 4 6395554 | Fax. 972 4 6390813 | info@tefentech.com | www.tefentech.com...
- Page 8 Maintenance: Period Maintenance Action Week Cleaning the suction filter 1 month Add grease on the suction tube 6 months Tight the connectors The rollers working properly As need Replace the suction tube Suction tube replacement instructions Open the head cover Kibbutz Nahsholim 3081500, Israel Page | 8 Tel.
- Page 9 Remove the old squeeze tube and insert a new tube Close the head cover Kibbutz Nahsholim 3081500, Israel Page | 9 Tel. 972 4 6395554 | Fax. 972 4 6390813 | info@tefentech.com | www.tefentech.com...
-
Page 10: Spare Parts
Spare Parts Photo Description 36600000003 Squeeze Tube Kit 38000000311 Pump mounting plate 81.63 38000000312 Rinse Pump head kit 81.118.16 38000000313 Motor & Gearbox 38000000314 10-32 X 1/2 SS PHIL SCREW 25.85.2 36600000001 Suction & Injection Kit Kibbutz Nahsholim 3081500, Israel Page | 10 Tel. -
Page 11: Limited Warranty
This warranty extends only to the original buyer of TEFEN products. This warranty does not cover products that are altered or repaired without prior approval from TEFEN. Defective units or parts should be returned to the factory with transportation prepaid. If inspection shows them to be defective, they will be repaired or replaced without charge, FOB factory.
