tefen MixRite TF-25 User Manual

USER GUIDE MixRite TF-25
Tefen is pleased to welcome you as a new
customer.
Please read this manual carefully before using the
product and follow the safety guidelines.
For additional information on our MixRite
proportional dosing pumps please visit our wesite -
https://tefentech.com/downloads
or Scan the QR code below
SAFETY
Warning:
!
During operation, the operator must stay in
front of the MixRite pump and wear protective
eyewear, clothing and gloves.
Be extremely careful in the presence of
hazardous substances (e.g. corrosives, toxins,
solvents, acids, caustics, flammable, etc.).
The user must adhere to the recommendations
given by the chemical product manufacturer.
Caution:
!
Use proper tools. DO NOT USE METALLIC TOOLS.
Use only plastic connectors.
It is the responsibility of the owner/operator
to make sure water flow and pressure do not
exceed the MixRite specifications.
Before applying any aggressive chemicals,
please consult your distributor to confirm
compatibility with the dosing pump.
When connecting a MixRite either to the
public water supply or to its own water
source, you must respect the regulations in
force concerning protection of the source i.e.
backflow prevention, etc.
Important notes:
Ensure water flow is according to the arrows on
the unit.
Use 120 mesh–130 micron filter. For water with
high particle content, use 250 mesh – 60
micron filter depending on your water quality.
It is recommended to place an anti-siphon
valve on the downstream side of the dosing
pump in installations in which there is a risk of
siphoning.
Do not operate your MixRite when the additive
tank is empty.
For installations subject to water hammer/
excessive flow, a protection device such as a
check valve or union ball check must be fitted
(pressure/flow control system).
MIXRITE TF-25-FULL-V.2-1023
SYSTEM OVERVIEW
MixRite TF-25
Water Pressure Flow Rate
1-8 bar 0.2-25 m3/h
(14.5-116 psi) (0.9-110 GPM)
Working Temp. Coupling
4-40º C 2" or 63 mm
(39.2-104º F)

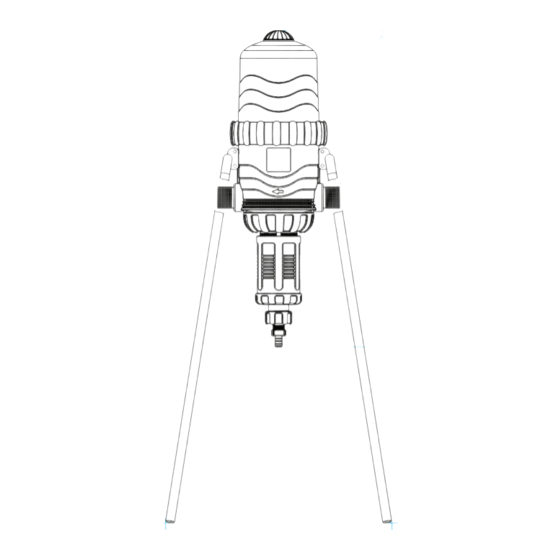

340 (13.3")
~650 (25.6")
L (Height)
On/Off
Max. 1030 (40.5")
Max. 880 (34.6")
MixRite TF-25 User Guide |
Air Release
660 (26")
900 (35.4")
1
