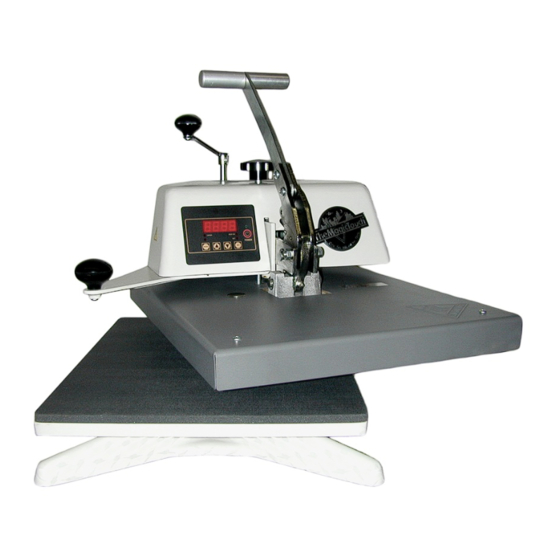

- Page 1 MNL90234P Rev. F 09.02.16 MODEL 234 Plus OPERATION AND MAINTENANCE MANUAL...
-
Page 2: International Symbols
FOR USE BY QUALIFIED PERSONNEL ONLY Safety Summary International Symbols WARNING Power Off In case of power cord damage, do not attempt to repair or replace the power cord. Contact the manufacturer or the Power On local distributor. WARNING Hot Surface Hot Surface. -
Page 3: General Description
This warranty does not apply to any machine that has been subjected to misuse, negligence Your 234 Plus series machine will have a long or accident. trouble-free life. Read this manual. Keep it with your machine; it's your key to proper operation Insta shall not be liable for the injury, loss or and lasting service. -
Page 4: Installation
FOR USE BY QUALIFIED PERSONNEL ONLY Degree of Protection Installation DOMESTIC – 234 Plus IP (Ingress Protection) rating according to IEC Use a separate 15 amp AC 60529. circuit. Only industrial extension cords with proper wire size should NOTE IEC 60529 does not specify sealing... -
Page 5: Operation
FOR USE BY QUALIFIED PERSONNEL ONLY Environmental Conditions Operation Only operate Insta heat seal machines under 1. Turn the power on by pressing the POWER suitable environmental conditions. button on the controller. 1. Placed on a even, non flammable surface. - Page 6 FOR USE BY QUALIFIED PERSONNEL ONLY Operation Timer/Temperature Temperature Control Fahrenheit/Centigrade (Celsius) Conversion The temperature controller can be programmed to display either °F or °C 1. Press the MODE button until the temperature is displayed. 2. Push and hold the UP and DOWN buttons for 5 seconds.
-
Page 7: General Maintenance
General Maintenance Suggestions It is recommended that you have the following items available: The Insta heat seal machines are relatively A. Regular screw driver maintenance free. For long trouble-free life, the B. Phillips head screw driver following preventive maintenance should be C. -
Page 8: Automatic Shut Off
Automatic Shut Off 1. Turn on the machine by pressing POWER. 234 Plus Model (234 Plus Controller P/N MPC90270 ; Rev. 6.27) a) ONE beep indicates the Automatic Shut Off is OFF. b) TWO beeps indicates the Automatic Shut Off is ON. - Page 9 FOR USE BY QUALIFIED PERSONNEL ONLY Safety and Danger Zone Diagram Do not handle the machinery with wet hands Hot Surface. Avoid contact with Upper Platen Shroud and Aluminum Casting Machinery should Keep hands clear be operated under a secure flat surface...
-
Page 12: Fuse Holder
MODEL VOLTAGE PART NAME 120V AC 230V AC SHROUD, HEAT MPSS228 MPSS228 SCREW, PAN HD #10 x 1" LG PHIL SH METAL MPSS143 MPSS143 INSULATION, FIBERGLASS MPI90158 MPI90158 TUBING, SHRINK TFE AWG7 MPPS131 MPPS131 INSULATORS, SPACER (4/SET) MPSI089 MPSI089 SENSOR, TEMPERATURE MPPS210 MPPS210 GUIDE POST... - Page 13 MODEL VOLTAGE PART NAME 120V AC 230V AC 71 POWER CORD (USA MODEL) MPPW141 MPPW142 71A POWER CORD (EUROPEAN MODEL) MPPW202 71B POWER CORD (UK MODEL) MPPW203 72 WIRE HARNESS MPW90361 MPW90361 74 SPRING, CAM MPSS201 MPSS201 75 POST, ARM ASSY 234P MPSP234P MPSP234P 77 SCREW, PRESSURE ADJUSTMENT...
- Page 14 FOR USE BY QUALIFIED PERSONNEL ONLY Notes:...
- Page 15 FOR USE BY QUALIFIED PERSONNEL ONLY...
- Page 16 13925 E. 166 St. • Cerritos, CA USA 90702 • (800) 421-6971 • Fax (562) 404-3010...
