Insta 907 Operation And Maintenance Manual

Graphic system, heat press machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

MNL90000     Rev. I 05.19.15
MODEL 907
OPERATION AND MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 907 and is the answer not in the manual?

Questions and answers

Related Manuals for Insta 907

Summary of Contents for Insta 907

  • Page 1 MNL90000     Rev. I 05.19.15 MODEL 907 OPERATION AND MAINTENANCE MANUAL...

  • Page 2: Safety Summary

    FOR USE BY QUALIFIED PERSONNEL ONLY Safety Summary International Symbols WARNING Power Off In case of power cord damage, do not attempt to repair or replace the power cord. Contact the manufacturer or the local Power On distributor. Hot Surface WARNING For protection against fire and electric shock, Risk of Electrical Shock replace with same type and rating fuse.

  • Page 3: General Description

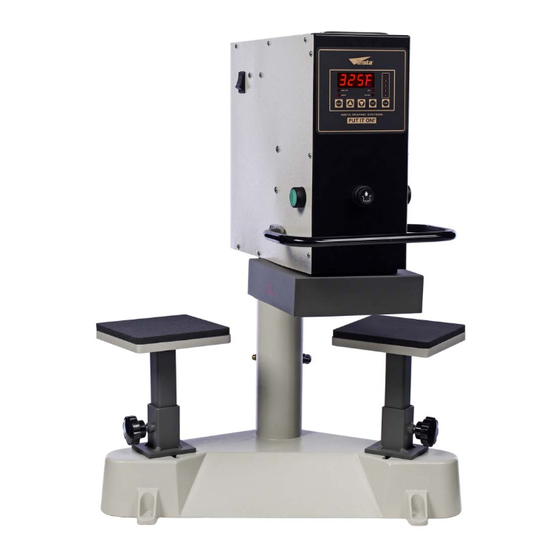

    It's your key to proper operation and lasting service. General Description The 907 is a dual station shuttle press for high speed label application. This pneumatic heat press machine is air-operated to prevent operator fatigue and is equipped with 2 independent lower platens, with an upper heated platen that swings between the two, for optimal efficiency The 907 has been strategically designed to generate &...
  • Page 4 This warranty does not apply to any machine that has been subjected to misuse, negligence or accident. Insta shall not be liable for the injury, loss or damage, direct or consequential, arising out of the use or the inability to use the product.

  • Page 5: Installation

    FOR USE BY QUALIFIED PERSONNEL ONLY Degree of Protection Installation DOMESTIC – 907 IP (Ingress Protection) rating according to IEC Use a separate 15 amp AC 60529. circuit. Only industrial extension cords with proper wire size should NOTE IEC 60529 does not specify sealing be used: size 18/3 wire for...

  • Page 6: Operation

    FOR USE BY QUALIFIED PERSONNEL ONLY Solid State Controller Operation 1. Push ON/OFF switch to ON position. 2. Set desired temperature (See Controller Operation). 3. Allow the machine to warm up until the selected temperature is reached. 4. Set the desired pressure by adjusting the air pressure regulator.

  • Page 7: Controller Operation

    FOR USE BY QUALIFIED PERSONNEL ONLY Controller Operation Setting the Presets 1. Select the desired preset program by pressing 1. Push and hold both the MODE and PGM the PGM button until the LED above the PGM buttons for 3-5 seconds until one of the button indicates the desired setting.

  • Page 8: Additional Notes

    FOR USE BY QUALIFIED PERSONNEL ONLY Additional Notes 7. Push and hold both the MODE and PGM buttons for 3-5 seconds until a single beep Timer is heard to exit the programming mode. • The controller has a count down timer, which automatically disengages (opens) the machine NOTE at the completion of the application.

  • Page 9: General Maintenance

    FOR USE BY QUALIFIED PERSONNEL ONLY Preventive Maintenance With the above items you should be able to Suggestions accomplish most repairs. The Avery Denninson heat seal machines are WARNING relatively maintenance free. For long, trouble-free Power cord replacement life, the following preventive maintenance should be should be from the followed: manufacturer only (because it...

  • Page 10: Sleep Time

    3 to 5 seconds. Press and hold together SET then UP or DOWN Arrow to set Sleep Mode Time. Model 907 The Sleep Mode / Automatic Shut Off is designed to save 1 ._XX ; XX = Minutes from OFF to 99...

  • Page 11: Automatic Shut Off

    FOR USE BY QUALIFIED PERSONNEL ONLY User Offset Automatic Shut Off Press MODE. Press MODE. 10. Press and hold together SET + UP or DOWN Arrow Press and hold together SET + UP or DOWN to set the Offset. Arrow to set Auto Shut Off Time. 5._XX ;...
  • Page 12 FOR USE BY QUALIFIED PERSONNEL ONLY Safety and Danger Zone Diagram Do not handle the machinery with wet hands Disengage Hot Surface. Avoid contact with Upper Platen and Aluminum Casing Keep hands clear Machinery should be operated under a secure flat surface...
  • Page 13 FOR USE BY QUALIFIED PERSONNEL ONLY 907 Wiring Diagram 0412...
  • Page 14 FOR USE BY QUALIFIED PERSONNEL ONLY...
  • Page 15 WIRE HARNESS MPPW931 MPPW932 WASHER MHWSAE8 MHWSAE8 SCREW, 8-32 X 3/8 MHSP83238 MHSP83238 TERMINAL BLOCK MPST6994 MPST6994 LABEL, CONTROL OVERLAY, 907 MPPL015 MPPL015 DIGITAL CONTROLLER MPPT752 MPPT752 MOUNT, AIR REGULATOR FILTER MPSM90009 MPSM90009 AIR PRESSURE/FILTER REGULATOR ASS'Y MPPA900 MPPA900 SCREW, AIR FILTER 1/4-20 X 1/2...
  • Page 16 PIN, UPPER PLATEN MPPR38112 MPPR38112 INSULATION FIBERGLASS MPSP249 MPSP249 SCREW, SHROUD (4 SET) MHSB381612 MHSB381612 HEAT SHROUD MPS90143 MPS90143 GROUND WIRING WITH SCREW MPW90140 MPW90140 CLEVIS ASS'Y MPSC919 MPSC919 UPPER PLATEN ASS'Y MPP9071A MPP9072A LOWER PLATEN ASS'Y MPSP475 MPSP475 MODEL 907 1112...
  • Page 17 FOR USE BY QUALIFIED PERSONNEL ONLY Notes:...
  • Page 18 FOR USE BY QUALIFIED PERSONNEL ONLY...
  • Page 19 FOR USE BY QUALIFIED PERSONNEL ONLY...
  • Page 20 FOR USE BY QUALIFIED PERSONNEL ONLY...
  • Page 21 FOR USE BY QUALIFIED PERSONNEL ONLY...
  • Page 22 FOR USE BY QUALIFIED PERSONNEL ONLY 13925 E. 166 St. • Cerritos, CA USA 90702 • (800) 421‐6971 • Fax (562) 404‐3010 Parts Orders • (800) 426‐3609 •  (562) 404‐3000 Ext. 215 Technical Support • (800) 426‐3609 • (562) 404‐3000 Ext. 208 In‐House Repair • (800) 426‐3609...
