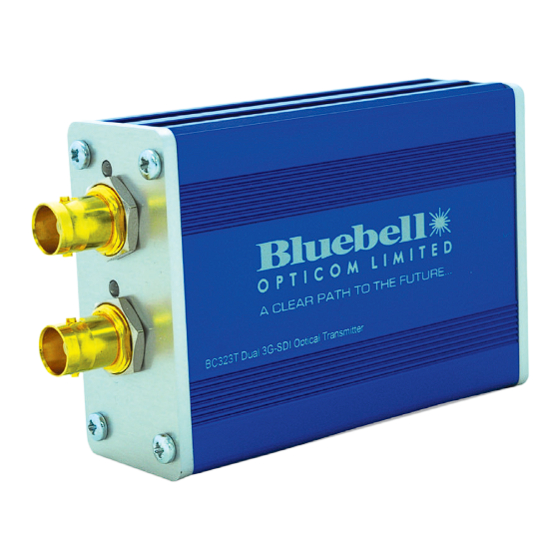

Bluebell BC323 Series Quick Start Manual

Fibre video interfaces

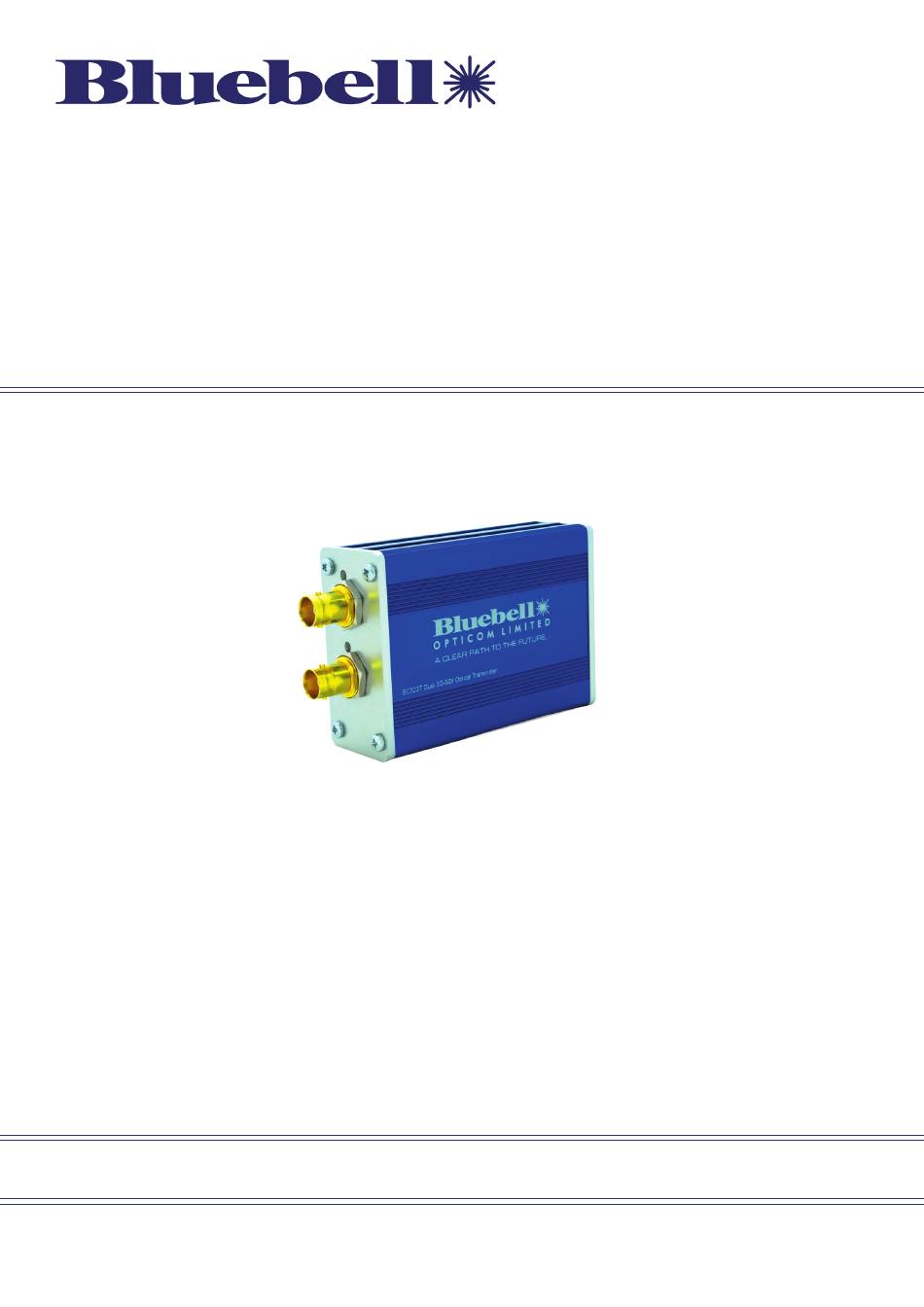

BC323 Series

Fibre video interfaces

Thank you for purchasing this Bluebell Opticom professional broadcast video product. The BC323 Series

of interfaces are very simple to install and this Quick Start Guide should provide sufficient information to

get you up and running in the vast majority of cases.

Should you need additional information, an Operation Guide with full technical information is available

on request.

Quick Start Guide

Ref: 323 Series QSG issue 1.0_01/15

Table of Contents

Need help?

Do you have a question about the BC323 Series and is the answer not in the manual?

Page 1 BC323 Series Fibre video interfaces Thank you for purchasing this Bluebell Opticom professional broadcast video product. The BC323 Series of interfaces are very simple to install and this Quick Start Guide should provide sufficient information to get you up and running in the vast majority of cases.
Page 2 Overview: The BC323 Series is a range of compact, stand-alone fibre interface modules intended for OB applications, which allow SDI video to be transmitted over fibre-optic cable. This Quick Start Guide covers three models comprising the range: • BC323T dual channel transmitter – two independent channels, SDI inputs, dual fibre outputs • BC323R dual channel receiver –...
Page 3 Power supply: All BC323 models require an external power supply voltage between 4.5 and 17 V. A Bluebell Model PS12 PSU (12 V) will be packed with the interface if one was ordered. The power supply connector is a Neutrik® XLR4M, and a locking mating connector is pre-fitted to the PS12 DC cable.
Page 4 Contact details: Bluebell Opticom Ltd. Unit 2, The Quadrant Howarth Road Tel: +44 (0) 1628 510055 Maidenhead Fax: +44 (0) 1628 510057 Berkshire Email: support@bluebell.tv SL6 1AP Web: www.bluebell.tv United Kingdom BC323 Series Quick Start Guide V1.0...
