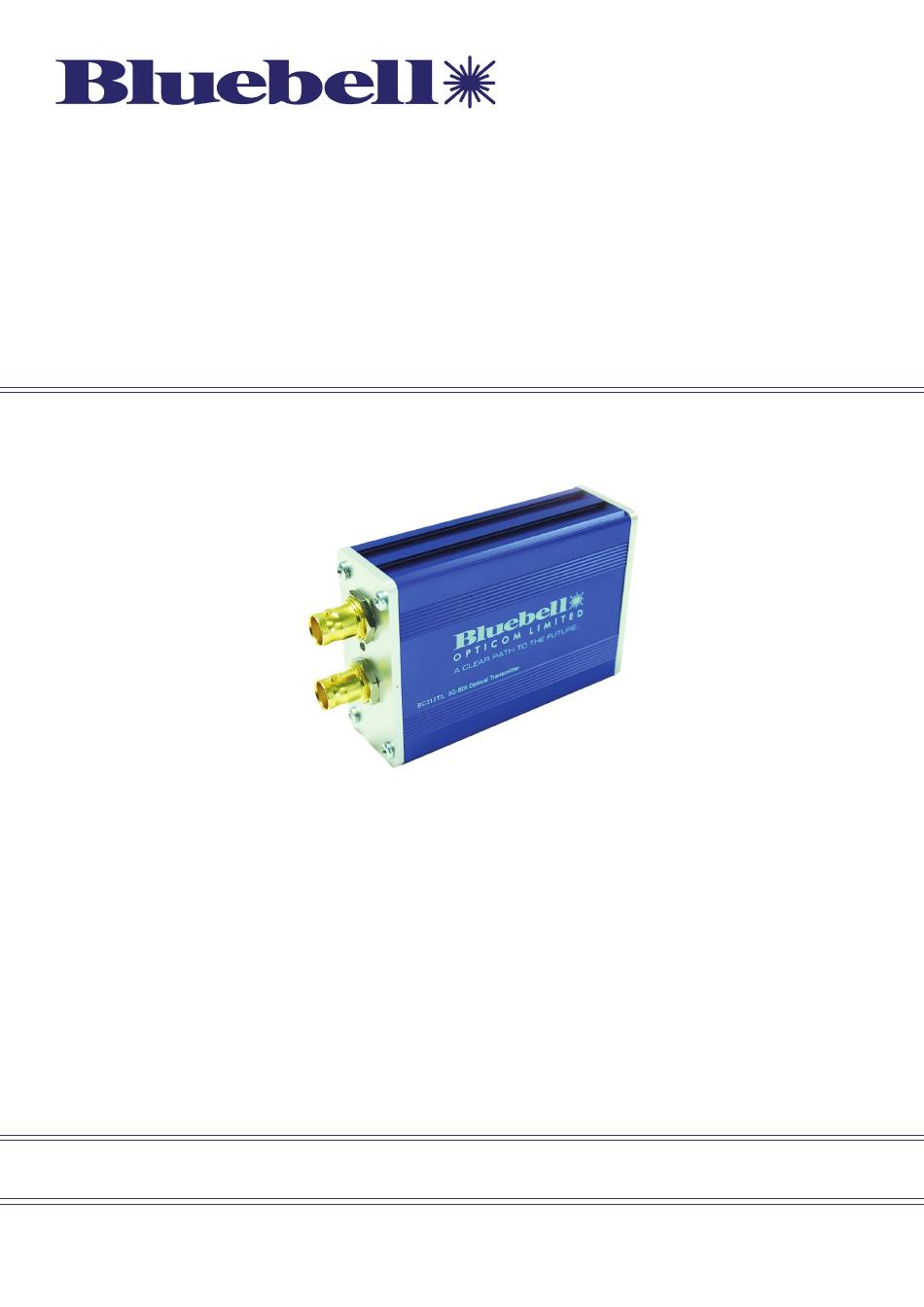

BC313 Series
Fibre video interfaces
Thank you for purchasing this Bluebell Opticom professional broadcast video product. The BC313 Series
of interfaces are very simple to install and this Quick Start Guide should provide sufficient information to
get you up and running in the vast majority of cases.
Should you need additional information, an Operation Guide with full technical information is available
on request.
Quick Start Guide
Ref: 313 Series QSG issue 1.0_01/15
Advertisement
Related Manuals for Bluebell BC313 Series
Summary of Contents for Bluebell BC313 Series
- Page 1 BC313 Series Fibre video interfaces Thank you for purchasing this Bluebell Opticom professional broadcast video product. The BC313 Series of interfaces are very simple to install and this Quick Start Guide should provide sufficient information to get you up and running in the vast majority of cases.

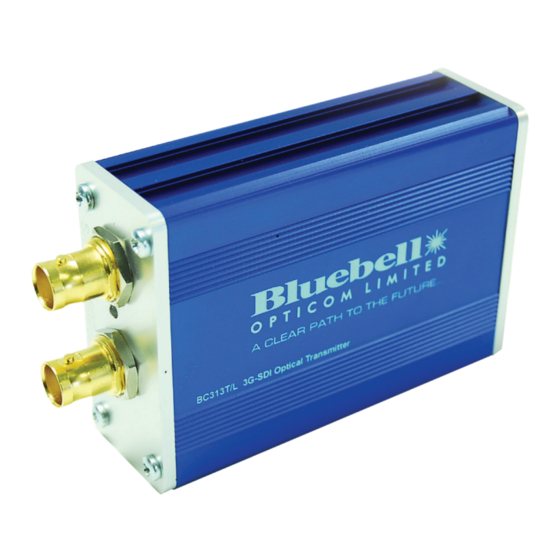

- Page 2 Overview: The BC313 Series is a range of compact, stand-alone fibre interface modules intended for OB applications, which allow SDI video to be transmitted over fibre-optic cable. This Quick Start Guide covers four models making up the range: • BC313T transmitter – single channel, SDI input, single fibre output • BC313T/L transmitter –...
- Page 3 Power supply: All BC313 models require an external power supply voltage between 4.5 and 17 V. A Bluebell Model PS12 PSU (12 V) will be packed with the interface if one was ordered. The power supply connector is a Neutrik® XLR4M, and a locking mating connector is pre-fitted to the PS12 DC cable.
- Page 4 Contact details: Bluebell Opticom Ltd. Unit 2, The Quadrant Howarth Road Tel: +44 (0) 1628 510055 Maidenhead Fax: +44 (0) 1628 510057 Berkshire Email: support@bluebell.tv SL6 1AP Web: www.bluebell.tv United Kingdom BC313 Series Quick Start Guide V1.0...
