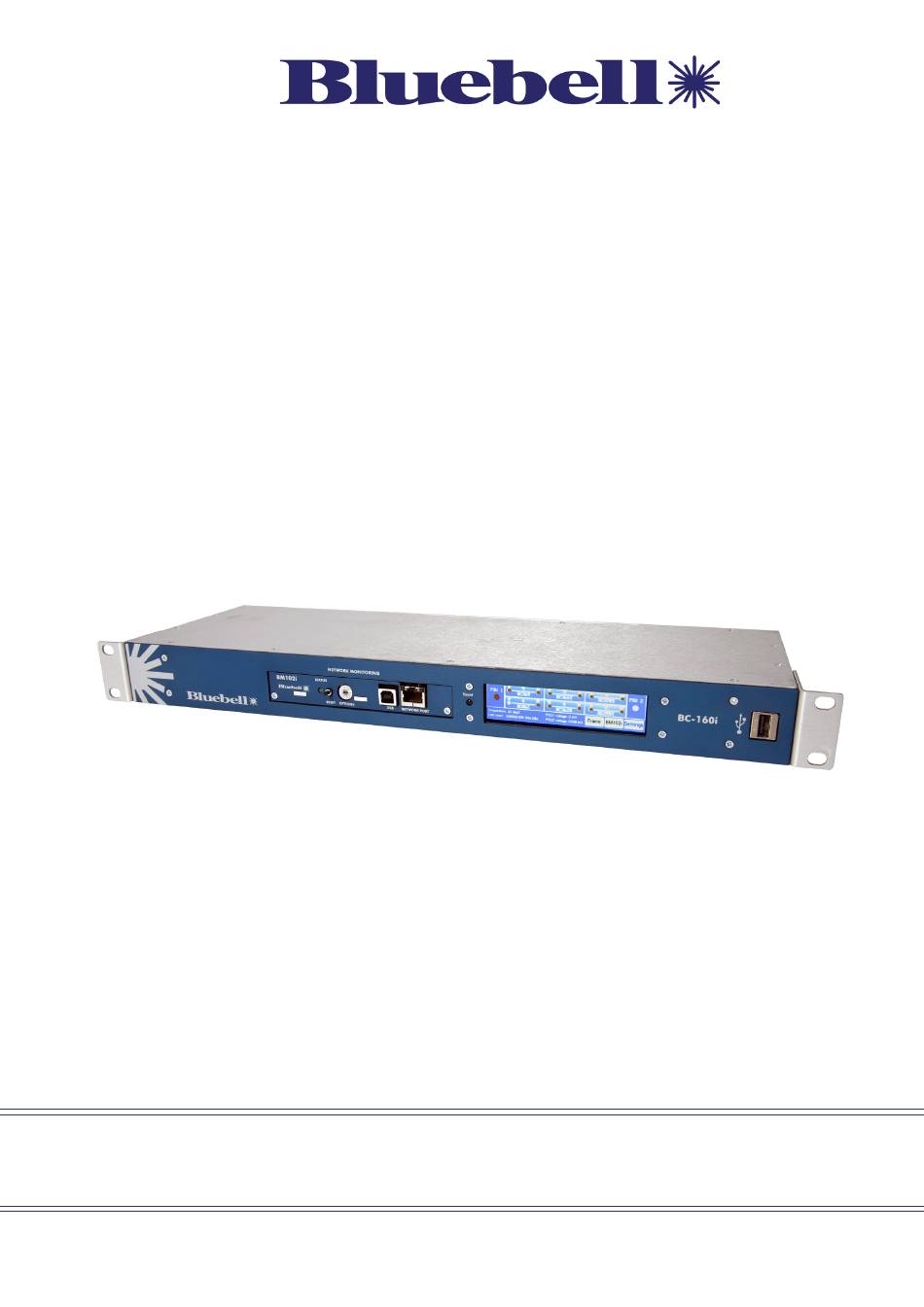

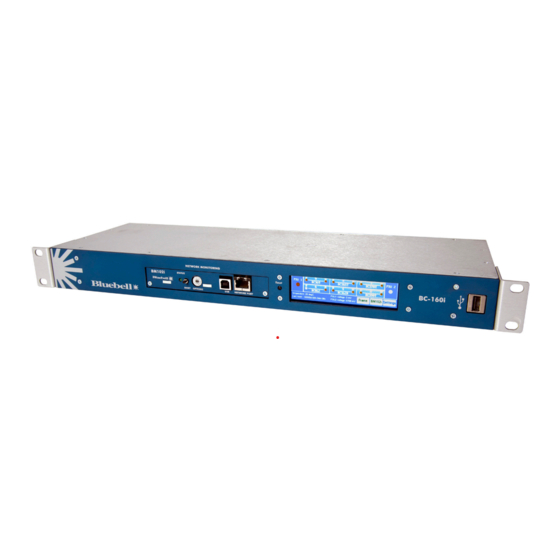

- Page 1 BC160i Modular Rack Frame System Operations Guide Ref: BC160i Operations Guide v1...
- Page 2 Bluebell Opticom Ltd. Bluebell Opticom Limited has taken all possible steps to ensure that the information given here is both correct and complete. In no event can Bluebell Opticom Limited accept any liability or responsibility for any loss or damage to the owner of the equipment, any third party, or any equipment which may result from use of this manual or the equipment which it describes.
-
Page 3: Table Of Contents
Frame page ..............................9 Frame Settings page ........................11 Card Info page .............................12 SFP data page .............................14 Card-specific parameters (CSP) page ...................16 Network Card page ...........................17 Firmware updates............................18 Specifications ............................19 Main parts and options .........................19 Related products ............................20 Ref: BC160i Operations Guide v1... -
Page 4: Overview
SDI video (all current formats), audio, Ethernet data and serial control data. The BC160i can hold six BC Series cards of any type: thus up to 24 separate signals can be transmitted/received over fibre optic links from the frame. -
Page 5: Power Requirements
PSU can power a fully-loaded rack, regardless of card type mix. The BC160i has no user-replaceable fuses. When powering the frame with a fused IEC cable, fit a fuse of 5 A rating. Always replace a blown fuse with one of the same rating. If the replacement fuse blows immediately on connection, the PSU is faulty and the frame should be sent for repair. -
Page 6: Bc160I Front Panel
Network card slot: this is reserved for a network monitoring card, either a BM102i or BM103. Reset button – resets the BC160i’s internal microprocessor controlling the frame monitoring functions and display. Pressing this button will also update the frame’s firmware if a USB memory device with the new firmware is plugged into the USB port [4]. -
Page 7: Bc160I Rear Panel
Slot 1 is the upper slot of the left-hand pair (viewed from the rear of the frame); Slot 2 is below it. IEC mains connector for PSU 1. IEC mains connector for PSU 2. Ref: BC160i Operations Guide v1... -
Page 8: System Monitoring
• Network Card page Due to the BC160i’s screen size, it is not possible for some pages to display all data simultaneously. For this reason, the Frame, Card Info, SFP and Network Card pages are provided with Up and Down scroll buttons. Touch these buttons to show any data not currently displayed. -
Page 9: Frame Page
If no Network Card is fitted, the button displays Network. Press the Settings button to navigate to the Settings page. Frame page The Frame page gives more detailed information about the BC160i frame itself. Use the Up and Ref: BC160i Operations Guide v1... - Page 10 Power Supply status – confirms the correct operation of each of the frame’s two PSUs. Frame Specific Parameters Last reset – displays the elapsed time since the last BC160i frame microprocessor was reset, either by the front panel Reset button or by power-cycling. The time format is in days, hours, minutes and seconds.
-
Page 11: Frame Settings Page
To recalibrate the touch screen, press the Reset button (see [3] at page 6) during the power-up sequence, while the Bluebell logo is displayed. This will launch the screen calibration routine: press the three dots displayed on the screen. -
Page 12: Card Info Page
PCB issue and firmware version: you may need this information if you need to contact Bluebell with any technical issues that may arise with the card. S/N eeprom detected – confirms the detection of the card’s Serial Number EEPROM. - Page 13 Card specific settings – these fields will be filled if the card has user-selectable functions that can be controlled from the BC160i. In the case of the BC390T example shown, its current encoding mode (7) is displayed as Mode, while the Mode Selection (Mode Seln) is set to Manual.
-
Page 14: Sfp Data Page
SFPs are fully compliant with SFP reporting standards, and that this may be particularly so with older or time-expired SFPs. Apparently incorrect data may therefore originate with the SFP’s reporting mechanism itself, and may not necessarily indicate a dysfunctional SFP. Ref: BC160i Operations Guide v1... - Page 15 Not all data on the SFP page is visible at any one time - press the Up and Down buttons to display the remainder of the page. 10. Home – press this button to return to the Home page. Ref: BC160i Operations Guide v1...
-
Page 16: Card-Specific Parameters (Csp) Page
Press the Set button to establish the new parameter or setting. This will be confirmed in the New val: field. Press the <- button to delete the last digit entered. Press the Back button to return to the Card Info page. Ref: BC160i Operations Guide v1... -
Page 17: Network Card Page
Network Card page This page will be available if the BC160i frame has a BM102i or BM103 Network card fitted in the dedicated front panel slot. It may be displayed by pressing the BM102i or BM103 button on the Home page. (Note: if a Network card is not fitted in the frame, pressing the Network button the Home page will produce a reduced version of the page shown below, with the card data fields blank.) -
Page 18: Firmware Updates
USB memory device, and then plug it into the USB port on the front panel of the of the BC160i frame. An update is then initiated by either i) pressing the reset button, or ii) power- cycling the frame. -
Page 19: Specifications
Supplies, integrated microprocessor-based card/frame monitoring and 3.8” touchscreen. Monitoring card is optional and accessible via dedicated front panel slot. Ruggedised aluminium flight case housing a BC160i 1RU frame. Any combination of cards, including WDM & CWDM, can be fitted for Optical Flight Case complete flexibility. -
Page 20: Related Products
19” 3RU frame for up to 15 BCxxx Cards, with Dual Redundant Power Supplies, integrated microprocessor-based card/frame BC100i monitoring and 7” touchscreen. Monitoring card is optional and accessible via dedicated rear slot. BC160P 19” 1RU Frame for up to 6 Passive BCxxx Cards. Ref: BC160i Operations Guide v1...
