DEBIX BPC-iMX8MP-01 User Manual page 21

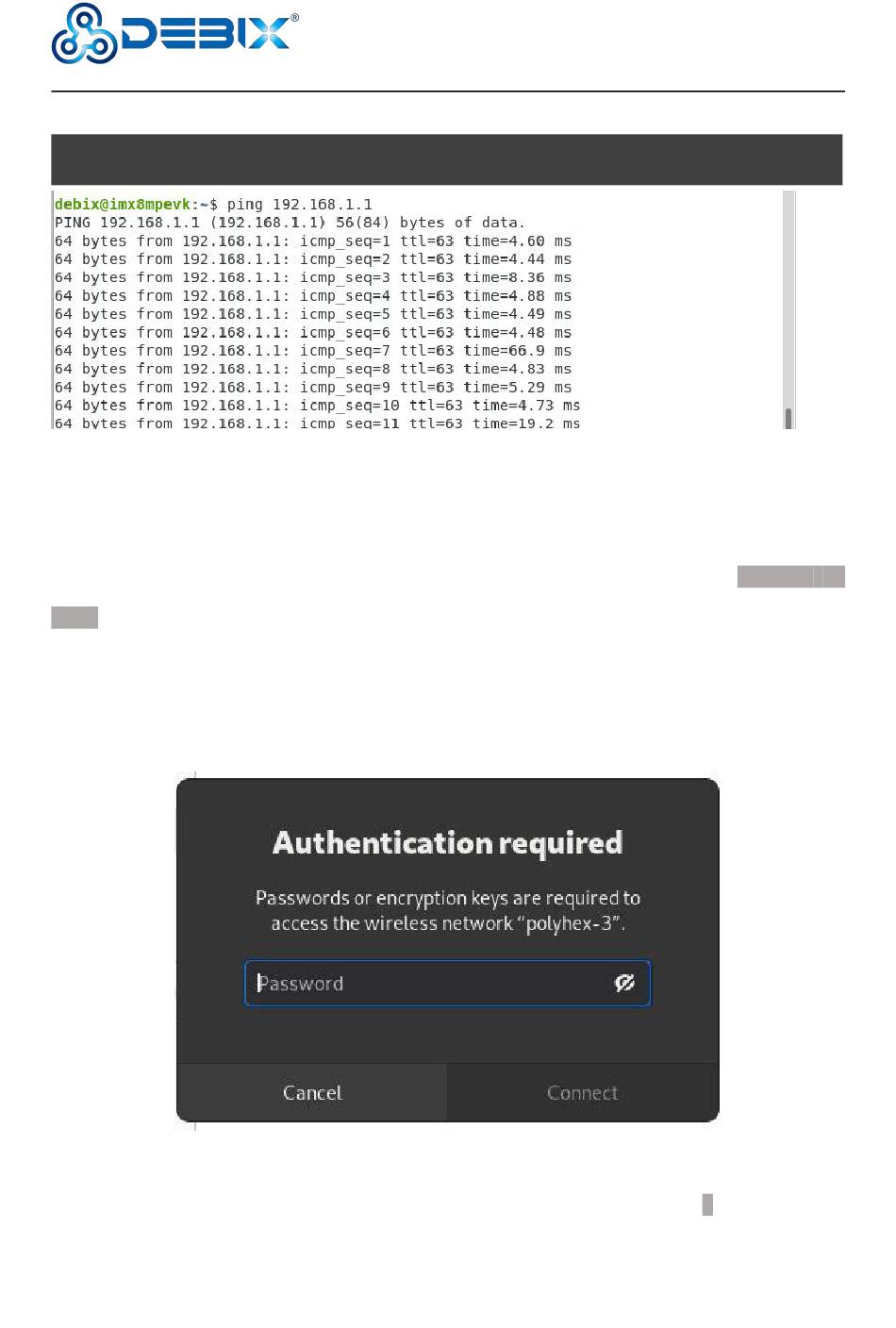

2. Apply ping command to check the network connection status.
ping 192.168.1.1
3. Reconnect to the new WiFi network (ChinaNet-polyhex), use the ping command, and the
same screen appears as above.
The desktop settings of the BPC-iMX8MP-01 Industrial Computer WIFI (Settings >>
Wi-Fi) are as follows.
Click the wifi enable button to turn on the Wi-Fi function, as shown in Figure 18.

Click on the wifi network name, the "Authentication required" dialog box will pop up, enter

the wifi network password, as shown in the figure below:
Wait for a while, when you see the right side of the connected wifi name √, that is, the wifi

www.debix.io
Polyhex Technology Company Limited
Figure 17
21 / 28
