Polyhex Technology Company Limited
BPC-iMX8MP-01 Industrial
Computer User Guide
Version: V1.0（2023-03）
Complied by: Polyhex Technology Company Limited（http://www.polyhex.net/）

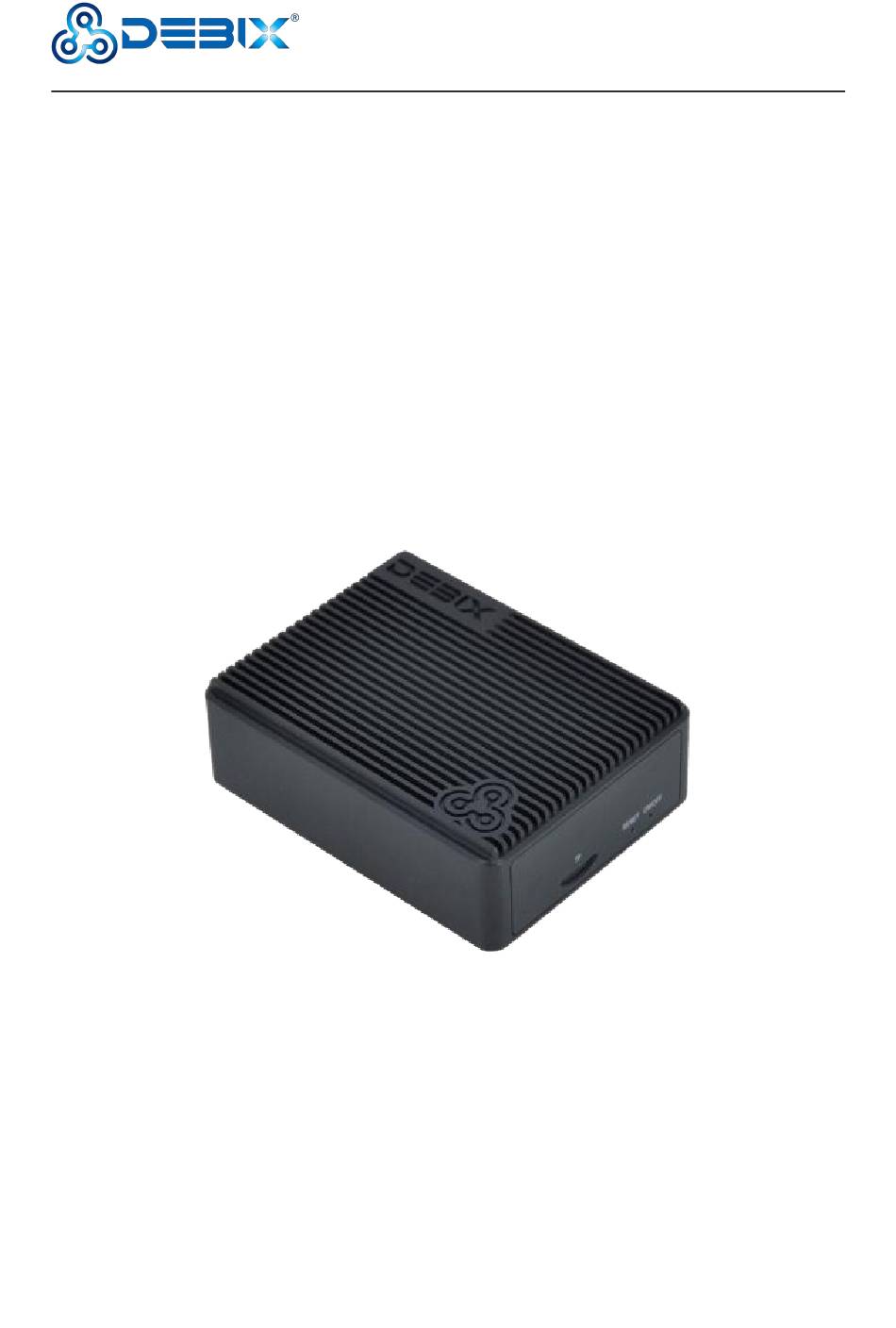

BPC-iMX8MP-01 Industrial Computer is a ruggedized and protected computer. It is composed
of a DEBIX Model A/B and a aluminum alloy enclosure. It combines various types of harsh
environment resistance features, including ruggedness, dustproof, anti-vibration, shock
resistance, wide temperature, portability and other indicators.
Figure 1
1 / 28
www.debix.io
