BPC-iMX8MP-01 Industrial
Computer User Guide
Version: V1.0（2023-02）
Complied by: Polyhex Technology Company Limited（http://www.polyhex.net/）

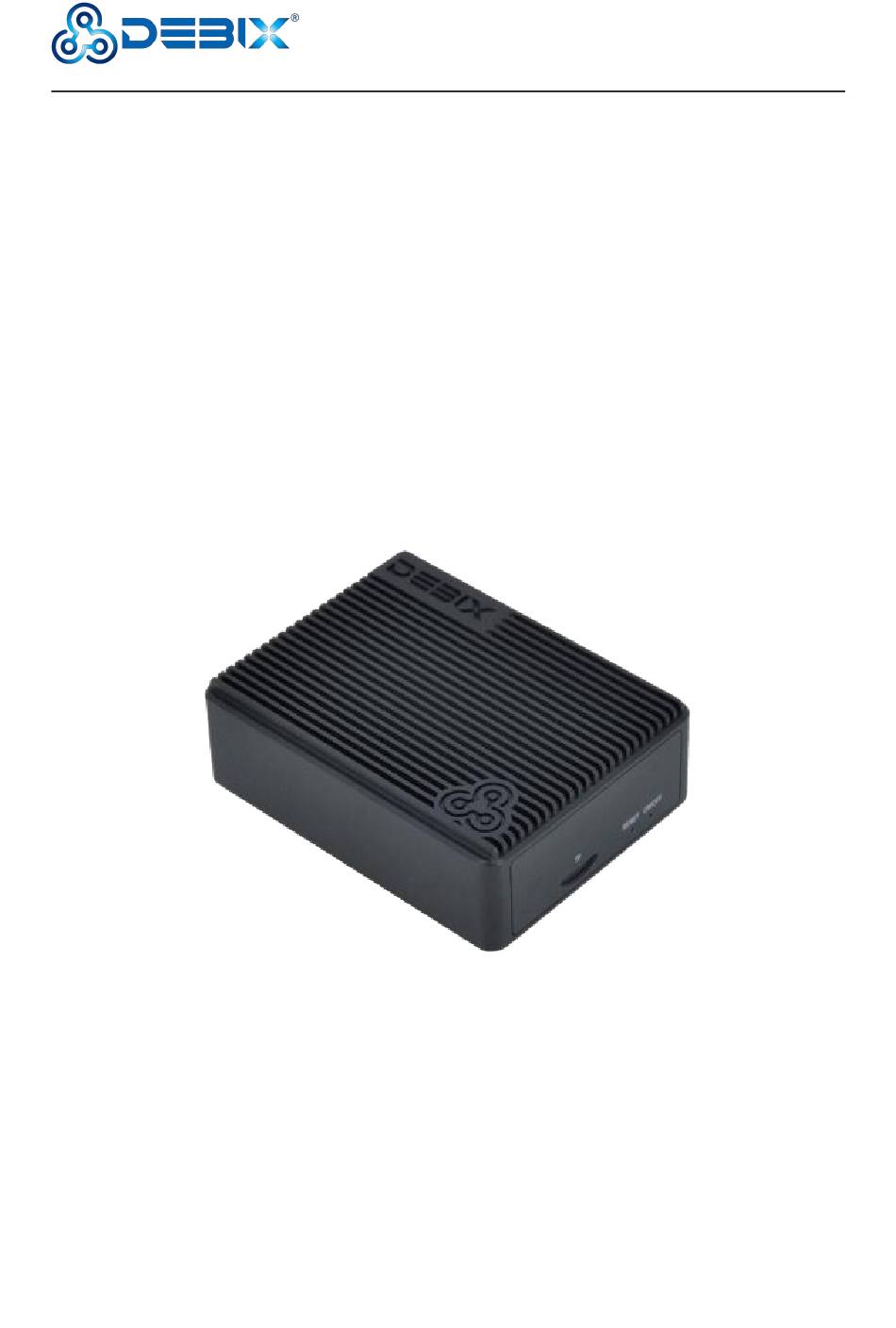

BPC-iMX8MP-01 Industrial Computer is a ruggedized and protected computer. It is composed
of a DEBIX Model A/B and a aluminum alloy enclosure. It combines various types of harsh
environment resistance features, including ruggedness, dustproof, anti-vibration, shock
resistance, wide temperature, portability and other indicators.
Figure 1
1 / 26
www.debix.io

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPC-iMX8MP-01 and is the answer not in the manual?

Questions and answers

Related Manuals for DEBIX BPC-iMX8MP-01

Summary of Contents for DEBIX BPC-iMX8MP-01

  • Page 1 Complied by: Polyhex Technology Company Limited（http://www.polyhex.net/） BPC-iMX8MP-01 Industrial Computer is a ruggedized and protected computer. It is composed of a DEBIX Model A/B and a aluminum alloy enclosure. It combines various types of harsh environment resistance features, including ruggedness, dustproof, anti-vibration, shock resistance, wide temperature, portability and other indicators.

  • Page 2: Table Of Contents

    Polyhex Technology Company Limited INDEX Chapter 1 BPC-iMX8MP-01 Industrial Computer Introduction ..........3 1.1. Overview of Industrial Computer .................4 1.2. Composition of Industrial Computer ................6 1.3. External Interface of Industrial Computer ..............8 1.3.1. Power Interface ....................8 1.3.2. OTG Interface ....................8 1.3.3.

  • Page 3: Chapter 1 Bpc-Imx8Mp-01 Industrial Computer Introduction

    Polyhex Technology Company Limited Chapter 1 BPC-iMX8MP-01 Industrial Computer Introduction BPC-iMX8MP-01 Industrial Computer is a compact, durable and high heat dissipation computer, which can be widely used in industry 4.0, IoT, smart city, advanced multimedia etc.. Main features: It encompasses a DEBIX Model A or a DEBIX Model B ...

  • Page 4: Overview Of Industrial Computer

    Polyhex Technology Company Limited 1.1. Overview of Industrial Computer Figure 2 BPC-iMX8MP-01 Industrial Computer uses DEBIX Model A or DEBIX Model B as the main board, the specific specifications are as follows. System Main Board DEBIX Model A/B Type BPC-iMX8MP-01...
  • Page 5 93mm(D) x 72mm(W) x 30mm(H) Gross Weight 190g Heat Dissipation No fan, heat dissipation through the vent at the bottom of the enclosure CPU Temperature -40 °C to 85 °C Power Supply Power Input DC 5V/3A Type-C 5 / 26 www.debix.io...

  • Page 6: Composition Of Industrial Computer

    Polyhex Technology Company Limited 1.2. Composition of Industrial Computer Figure 3 BPC-iMX8MP-01 Industrial Computer assembly consists of these main components: DEBIX Model A/B, enclosure and power adapter. Figure 4 DEBIX 6 / 26 www.debix.io...
  • Page 7 Polyhex Technology Company Limited Figure 5 Enclosure Figure 6 Power adapter 7 / 26 www.debix.io...

  • Page 8: External Interface Of Industrial Computer

    There is an HDMI interface to the right of OTG, and the connector is an A-type HDMI female socket, which is used to connect a monitor, TV or projector. HDMI resolution up to 3840x2160p30. As shown in the figure below. Figure 8 8 / 26 www.debix.io...

  • Page 9: Audio Interface

    One independent MAC RJ45 Gigabit Ethernet port on board (Network port: LAN), support POE power supply (Additional POE power supply module is required), connect DEBIX to the network through the network cable of the RJ45 connector, and there is also a set of status indicators below the interface to display the signal, one is Link and the other is Active.

  • Page 10: Key

    ON/OFF button: short press to turn off the screen or wake up, long press to power off or  1.4. Safety Precaution and Instruction The following messages inform how to make each cable connection. In most cases, you will simply need to connect a standard cable. 10 / 26 www.debix.io...
  • Page 11 7．If the device is not used for a long time, power it off to avoid damage caused by sudden overvoltage. 8．Do not pour liquid into the venting holes of the enclosure, as this could cause fire or 11 / 26 www.debix.io...
  • Page 12 KC: This equipment has been tested and found to comply with the KC rules. Technical support and assistance 1. Visit Polyhex website http://www.polyhex.net/ where you can find the latest information about the product. 2. Contact your distributor, sales representative or Polyhex’s customer service center for 12 / 26 www.debix.io...
  • Page 13  Product name  Description of your peripheral attachments  Description of your software(operating system, version, application software, etc.)  A complete description of the problem  The exact wording of any error message 13 / 26 www.debix.io...

  • Page 14: Chapter 2 Debix Installation Guide

     2.1. Installation The steps for DEBIX installation into the DEBIX enclosure are as follows: First, paste the CPU thermal conductive rubber pad on the front of the DEBIX board, as shown in the figure below: Figure 12 Place the single board computer into the enclosure, with four PM2.5X6 screws fixed, as...
  • Page 15 Install the back cover of the enclosure and fix it with 4 KM2.5X6 locking screws, as shown in the figure below: Figure 14 The PC sheet into the left side of the enclosure, as shown in the figure below: 15 / 26 www.debix.io...

  • Page 16: Power On

    Note: The factory default boot mode of BPC-iMX8MP-01 Industrial Computer is Micro SD card boot. If the main board for DEBIX Model B, you need to change to other boot modes, please contact our engineer for modification before leaving the factory, and do not disassemble the machine by yourself.

  • Page 17: Chapter 3 Software Application Examples

    3.1. Use of Ethernet Query ip command. ip a As shown above: eth33 network card corresponds to the network port of the device silkscreen "LAN" (Figure 9). Apply ping command. ping 192.168.1.1 Query the speed of the network port. 17 / 26 www.debix.io...
  • Page 18 Polyhex Technology Company Limited sudo ethtool ens33 The desktop settings of the BPC-iMX8MP-01 Industrial Computer Ethernet (Settings >> Network) are as follows. 18 / 26 www.debix.io...

  • Page 19: Use Of Wifi

    Polyhex Technology Company Limited Figure 16 3.2. Use of WiFi Unplug the network cable, DEBIX connect WiFi (polyhex_mi), query the WiFi network port via ifconfig wlan0. 19 / 26 www.debix.io...
  • Page 20 Reconnect to the new WiFi network (ChinaNet-polyhex), use the ping command, and the same screen appears as above. The desktop settings of the BPC-iMX8MP-01 Industrial Computer WIFI (Settings >> Wi-Fi) are as follows. Click the wifi enable button to turn on the Wi-Fi function, as shown in Figure 18.

  • Page 21: Use Of Bluetooth

    Polyhex Technology Company Limited Figure 18 3.3. Use of Bluetooth Query Bluetooth devices via the hciconfig command. Get root permission. sudo du Start bluetooth and match bluetooth. hciconfig hci0 up bluetoothctl power on agent on 21 / 26 www.debix.io...
  • Page 22 #Match the Bluetooth MAC address The desktop settings of the BPC-iMX8MP-01 Industrial Computer Bluetooth (Settings >> Bluetooth) are as follows. Example: Turn on Bluetooth on both the phone and DEBIX, the phone Bluetooth can detect 22 / 26 www.debix.io...

  • Page 23: Use Of Usb

    Polyhex Technology Company Limited the DEBIX Bluetooth device, the DEBIX can detect the phone Bluetooth device, click on the Bluetooth device, connect, enter the key for pairing, as shown in the following figure. Figure 19 3.4. Use of USB Access the U disk in FAT32 format, the system will automatically mount it to the /mnt path.
  • Page 24 Polyhex Technology Company Limited  Query the U disk letter: fdisk -l  Mounting the U disk: mount /dev/sda1 /mnt Enter the U disk directory: cd /mnt 24 / 26 www.debix.io...
  • Page 25 Write speed test. sh -c "sync && echo 3 > /proc/sys/vm/drop_caches" // clear cache dd if=/dev/zero of=./test_write count=1 bs=1G Reading speed test. sh -c "sync && echo 3 > /proc/sys/vm/drop_caches" // clear cache dd if=./test_write of=/dev/null count=1 bs=1G 25 / 26 www.debix.io...

  • Page 26: Verification Of Key

    Polyhex Technology Company Limited 3.5. Verification of Key The desktop settings of the BPC-iMX8MP-01 Industrial Computer RTC (Settings >> Date&Time) are as follows. Unlock "Date & Time" to turn on or off automatic time.  Set "Time Zone" as local zone.
